Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S20DL |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sewing Machine | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 2500W | Generator: | Digital Generator |
| Width Of Welding Wheel: | 22mm | Matched Transducer: | 5020-4D PZT4 |
| Generator Size: | 400*195*98mm | Application: | Fabric Materials |
| Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |
||

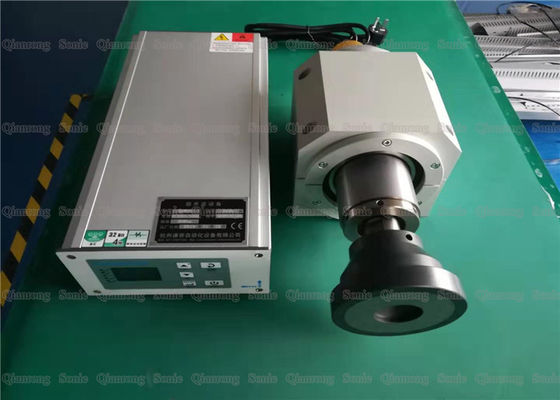

High Power 2500w Ultrasonic Rotary Non woven Fabric Sealer with Slip Ring RMP 3000
Description:
Ultrasonic sewing machine uses high-frequency vibration to transmit sound waves from welding head to the welding surface of the work object, which instantly causes friction of the work object molecules to reach the melting point of the plastic, thereby completing the rapid fusion of solid materials and completing the welding. Its joint strength is close to a whole piece of continuous material. As long as the joint surface of the product is designed to match, it is absolutely no problem to completely seal it.
Specifications:
| Item No | QR-S20DL |
| Power | 2500W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 22mm |
| Matched Transducer | 5020-4D PZT4 |
| Generator size | 400*195*98mm |
Advantages:
Traditional sewing machines stitch two cloths together through a needle-driven thread. During the threading process, not only the cloth is punctured but there is no bond between the cloth and the cloth, but they are tied together by a thin thread so that the cloth is easily pulled. Broken, the line is easy to break. Unexpectedly, thermoplastics can be used to stitch two cloths together by hot air welding. Needlework is not required but the welding temperature is difficult to control and the welding speed is slow.
Ultrasonic sewing machine core can sew most thermoplastic fabrics. Compared with ordinary needle and thread sewing, ultrasonic sewing does not require needle and thread, high sewing strength, good sealing and fast sewing speed. And the ultrasonic seamless stitching completely solves the problem that the movement direction of the ultrasonic welding head is inconsistent with the movement direction of the cloth, and the problem of non-synchronization will replace the ordinary sewing machine to a great extent.
High Power 2500w Ultrasonic Rotary Non woven Fabric Sealer with Slip Ring RMP 3000
