Place of Origin: | China |
---|---|
Brand Name: | QRsonic |
Certification: | CE |
Model Number: | QR-W15 |
Minimum Order Quantity: | 1 unit |
Price: | Negotation |
Packaging Details: | Packed in wooden case |
Delivery Time: | 7 workdays |
Payment Terms: | T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Products Name: | Ultrasonic Sealing Unit | Frequency: | 15Khz |
---|---|---|---|
Power: | 2600W | Power Supply: | Digital Generator |
Width Of Welding Wheel: | 120*25mm | Materials Of Welding Horn: | Steel |
Net Weight Of Welding Horn: | 11kgs | Application: | Mask Making Machine |
Highlight: | ultrasonic embossing machine,ultrasonic fabric sewing machine |

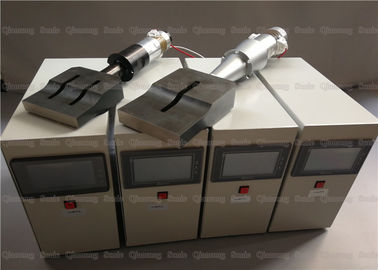

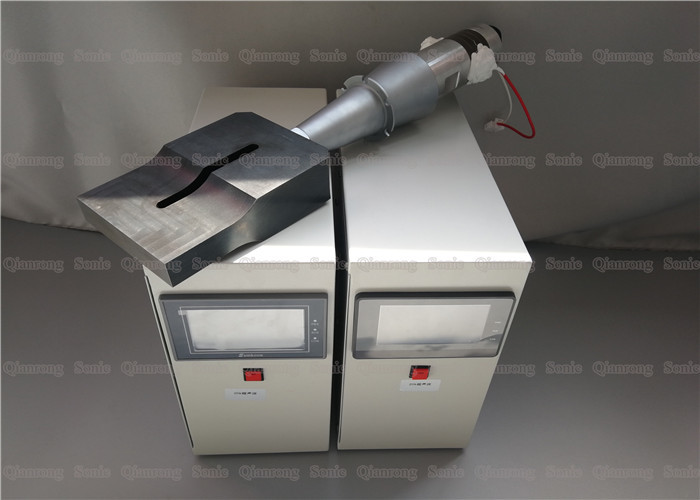

Ultrasound 15Khz Sealing System for Mouth Mask Making Device with Welding Roller
Description:
Ultrasonic mask stitching equipment, using the principle of ultrasound for stitchless stitching, is equipped with a variety of chemical fiber fabrics, non-woven spray-coated cotton, artificial leather and other fabrics for bonding. Strong adhesion, no pinholes, high production efficiency, one-time welding mask body.
QRsonic provides ultrasonic accessories for mask stitching. The welding on the face of the mask uses a 15K ultrasonic system consisting of a flat tool head and a patterned roller. A 20K ultrasonic system is used to perform spot welding on the welding of mask earbands. According to different mask types, we will provide different numbers of ultrasonic sets, and the tool head can also be customized according to customer requirements.
Specifications:
Classification | QR-15K |
Frequency | 15Khz |
Power | 2600w |
Voltage | 220V |
Generator | Digital generator |
Material of Horn | Steel |
Dimension of horn | 120*25mm |
Net weight of horn | 11kgs |
Dimension of generator | 250*150*300mm |
Net weight of generator | 6kgs |
Package | Wooden case |
Application | Non woven mask welding |
Compared with the traditional needle-type wired suture, the non-woven ultrasonic seamless suture has the following advantages:
1. Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need for frequent needle changes, without the broken joints of traditional thread sewing, and neatly cutting and sealing textiles. Stitching also plays a decorative role. Strong adhesive force, can achieve waterproof effect, clear embossing, three-dimensional embossed effect on the surface, fast working speed, good product effect, more high-grade and beautiful, quality guaranteed.
2. Using ultrasonic and special steel wheel processing, the sealed edges will not crack, will not hurt the edges of the cloth, and there will be no burrs or curling.
3. No preheating is required during manufacture and continuous operation is possible.
4. The operation is simple, and there is not much difference with the traditional sewing machine operation method, and ordinary sewing workers can operate it.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.
Ultrasound 15Khz Sealing System for Mouth Mask Making Device with Welding Roller
