Spunbond Nonwoven Surgical Mask By Ultrasonic Vibration Transducer With Horn

MOQ:	1 unit
Price:	Negotation
Standard Packaging:	Packed in wooden case
Delivery Period:	7 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-W20

Products Name:

Ultrasonic Sewing Components

Frequency:

20Khz

Power:

1500W

Generator:

Digital Generator With LCD Screen

Width Of Welding Wheel:

110*20mm Or Customized

Materials Of Welding Horn:

Special Steel

Net Weight Of Welding Horn:

5.5kgs

Application:

Mask Making Machine

Highlight:

ultrasonic embossing machine

ultrasonic fabric sewing machine

Product Description

Spunbond Nonwoven Surgical Mask By Ultrasonic Vibration Transducer with Horn Digital Ultrasonic Generator

Description:

Ultrasonic sewing machine, ultrasonic mask welding is to transmit high frequency vibration to the mask non-woven fabric to achieve the connection. When the mask non-woven fabric material passes between the ultrasonic welding heads, vibration will be generated on the non-woven fabric and heat will be quickly generated. This heat causes the synthetic fibers of the nonwoven fabric to melt and solidify, creating a seam that will not be worn or torn apart, completely replacing the traditional hand stitching.

Specifications:

Classification	QR-15K	QR-20K
Frequency	15Khz	20Khz
Power	2600w	1500w
Voltage	220V	220V
Generator	Digital generator	Digital generator
Material of Horn	Steel	Steel
Dimension of horn	120*25mm	110*20mm
Net weight of horn	11kgs	5.5kgs
Dimension of generator	250150300mm	250150300mm
Net weight of generator	6kgs	6kgs
Package	Wooden case	Wooden case
Application	Non woven mask welding	Non woven mask welding

Advantages:

1. Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need for frequent needle changes, without the broken joints of traditional thread sewing, and neatly cutting and sealing textiles. Stitching also plays a decorative role. Strong adhesive force, can achieve waterproof effect, clear embossing, three-dimensional embossed effect on the surface, fast working speed, good product effect, more high-grade and beautiful, quality guaranteed.

2. Using ultrasonic and special steel wheel processing, the sealed edges will not crack, will not hurt the edges of the cloth, and there will be no burrs or curling.

3. No preheating is required during manufacture and continuous operation is possible.

4. The operation is simple, and there is not much difference with the traditional sewing machine operation method, and ordinary sewing workers can operate it.

5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.

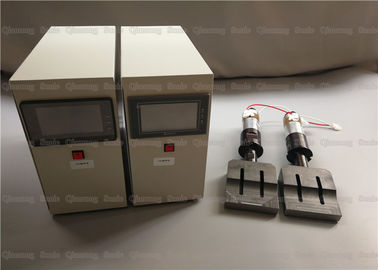

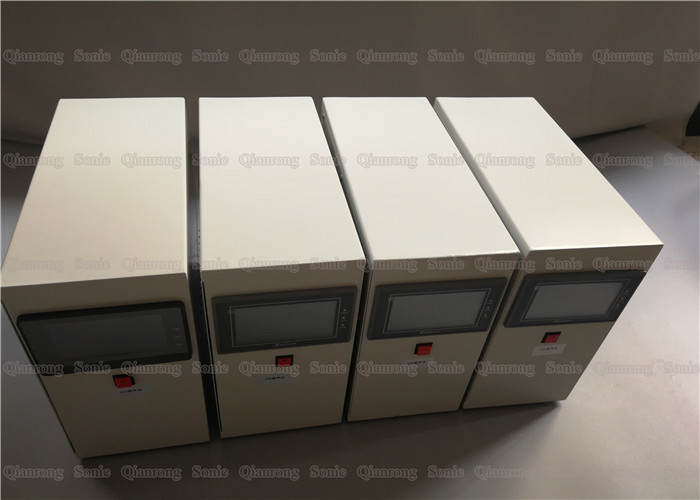

Spunbond Nonwoven Surgical Mask By Ultrasonic Vibration Transducer with Horn Digital Ultrasonic Generator

Spunbond Nonwoven Surgical Mask By Ultrasonic Vibration Transducer With Horn 0

Spunbond Nonwoven Surgical Mask By Ultrasonic Vibration Transducer With Horn 1
