2000w 20 Khz Ultrasonic Transducer For Mask Non Woven Welding
  • name
  • name
  • name
  • name

2000w 20 Khz Ultrasonic Transducer For Mask Non Woven Welding

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-4BZB
Products Name:
Ultrasonic Welding Transducer
Frequency:
20 Khz
Output Power:
2000 Watt
Joint Bolt:
M18*1.5
Ceramic Disc Diameter:
50mm
Ceramic Discs:
PZT4
Capacitance:
14-16nf
Application:
Mask Making Machine
Highlight:

20 khz ultrasonic transducer

,

ultrasonic transducer 20 khz

,

2000w ultrasonic transducer

Product Description

Searching 20Khz 2000w Ultrasonic Transducer for Mask Non Woven Welding with Black Ceramics





Description:



The ultrasonic transducer converts the electrical or magnetic energy output by the ultrasonic generator into mechanical vibration of the same frequency. At present, the piezoelectric ceramic transducer is used on the mask machine. The piezoelectric effect of the material converts electrical signals into mechanical vibrations. The working principle of medical ultrasound transducers (ultrasound probes) is basically the same, and its interior usually contains an electrical energy storage element and a mechanical vibration system. When the transducer is used as a transmitter, the electric oscillation signal sent from the excitation power supply will cause the electric field or magnetic field in the electric energy storage element of the transducer to change. This change will affect the mechanical vibration system of the transducer through some effect. A driving force is generated to enter the vibration state, thereby driving the medium in contact with the mechanical vibration system of the transducer to vibrate and radiate sound waves into the medium. The process of receiving sound waves is just the opposite. The external sound waves act on the vibrating surface of the transducer, thereby causing the mechanical vibration system of the transducer to vibrate. With a certain physical effect, it causes the electric field or the energy storage element of the transducer. The magnetic field changes accordingly, causing the electrical output of the transducer to generate a voltage and current corresponding to the acoustic signal.





Specifications:



Model QR-5020-4BZ
Frequency 20khz
Output power 2000 watt
Joint bolt M18*1.5
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 14-16nf
Amplitude 10 um
Application Mask welding machine





Parameters:



Item No.



Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



 Capacitance

Input power (W)


Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100






Searching 20Khz 2000w Ultrasonic Transducer for Mask Non Woven Welding with Black Ceramics

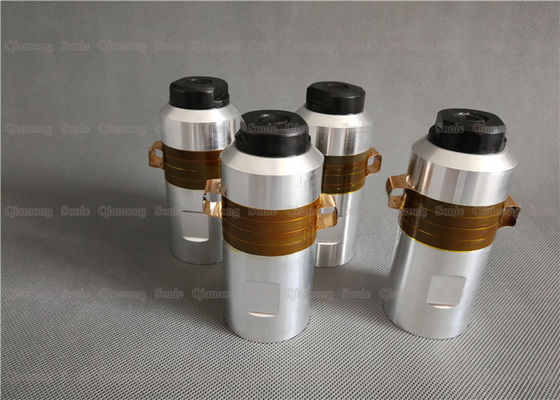

2000w 20 Khz Ultrasonic Transducer For Mask Non Woven Welding 0



2000w 20 Khz Ultrasonic Transducer For Mask Non Woven Welding 1



Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
