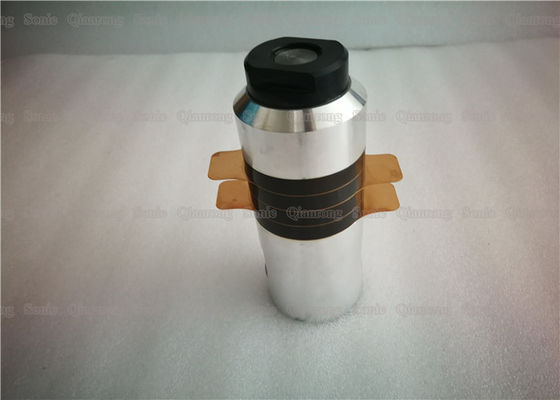

15khz High Frequency Ultrasonic Welding Transducer With Black Pzt4 Ceramics
  • name
  • name
  • name
  • name

15khz High Frequency Ultrasonic Welding Transducer With Black Pzt4 Ceramics

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-4BZB
Products Name:
Ultrasonic Piezoelectric Transducer
Frequency:
15 Khz
Output Power:
2600 Watt
Joint Bolt:
M20*1.5
Ceramic Disc Diameter:
60mm
Ceramic Discs:
PZT4
Capacitance:
9-13.5nf
Application:
Mask Continuous Sealing
Highlight:

15khz Ultrasonic Welding Transducer

,

2600 watt Ultrasonic Welding Transducer

,

Pzt4 Ultrasonic Welding Transducer

Product Description





15Khz High Frequency Ultrasonic Transducer with Black PZT4 Ceramics for N95 94 Mask Making Device





Description:



The transducer consists of a housing, a matching layer, a piezoceramic disk transducer, a backing, an extraction cable, and a Cymbal array receiver. The piezoelectric ceramic disk transducer is made of PZT-4 piezoelectric material with polarization direction polarization. The Cymbal array receiver consists of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets. The working distance of the invention is greater than 35 m, the frequency bandwidth reaches 10 kHz, and the long-distance target moving at high speed can be detected.



QRsonic provides ultrasonic accessories for mask stitching. The welding on the face of the mask uses a 15K ultrasonic system consisting of a flat tool head and a patterned roller. A 20K ultrasonic system is used to perform spot welding on the welding of mask earbands. According to different mask types, we will provide different numbers of ultrasonic sets, and the tool head can also be customized according to customer requirements.





Specifications:



Model QR-6015-4BZ
Frequency 15 khz
Output power 2600 watt
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 9-13.5nf
Amplitude 10 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000   17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000   19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500   700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000   22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20     11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500     1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000   900
4020-2BZ 1/2-20UNF 40 2 20   4800-5500   500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500     800
The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100





15Khz High Frequency Ultrasonic Transducer with Black PZT4 Ceramics for N95 94 Mask Making Device



15khz High Frequency Ultrasonic Welding Transducer With Black Pzt4 Ceramics 0



15khz High Frequency Ultrasonic Welding Transducer With Black Pzt4 Ceramics 1

15khz High Frequency Ultrasonic Welding Transducer With Black Pzt4 Ceramics 2





Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
