2600w High Power 15 Khz Ultrasonic Transducer For Large 270mm Welding Horn

2600w High Power 15 Khz Ultrasonic Transducer For Large 270mm Welding Horn

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-4BZB
Products Name:
Ultrasonic Piezoelectric Transducer
Frequency:
15 Khz
Output Power:
2600 Watt
Joint Bolt:
M20
Ceramic Disc Diameter:
60mm
Ceramic Discs:
Black PZT4
Capacitance:
9-13.5nf
Application:
Mask Sealing Machine
Highlight:

15 Khz Ultrasonic Transducer

,

2600w Ultrasonic Transducer

,

270mm Ultrasonic Transducer

Product Description

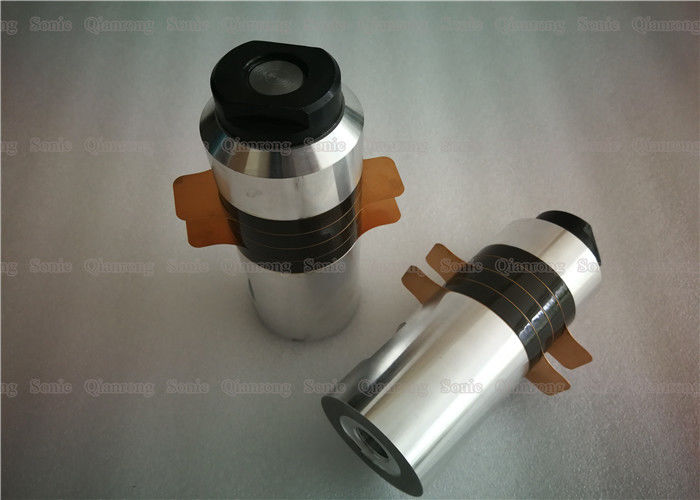

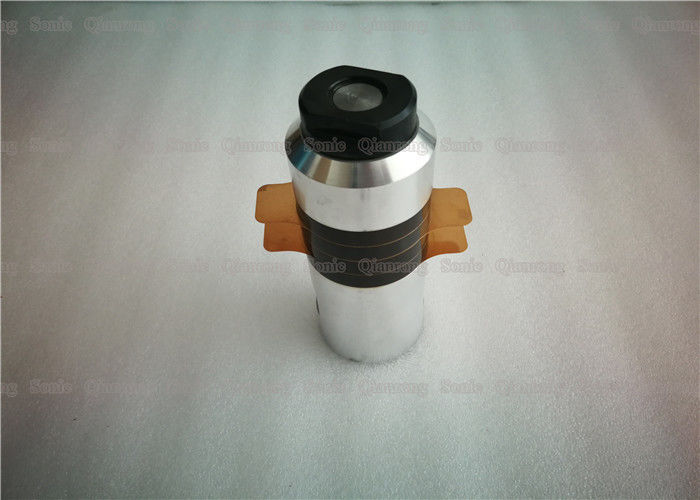

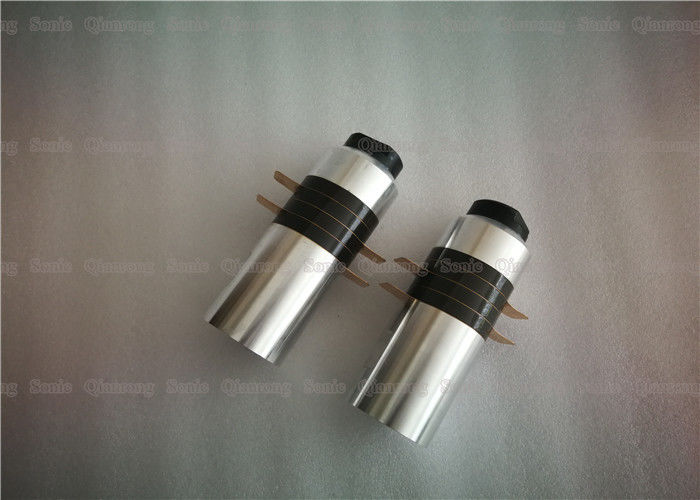

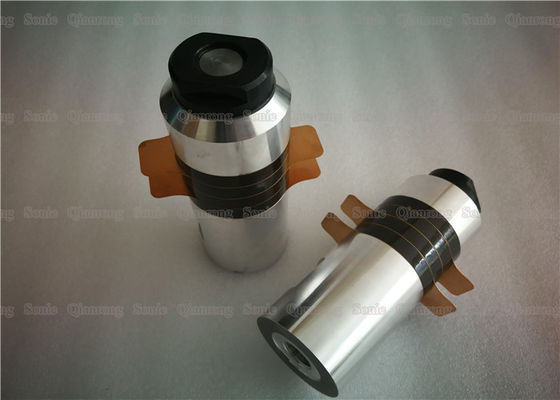

15Khz Ultrasonic Piezoelectric Transducer with 2600w High Power for Large 270mm Welding Horn





Description:



The mask machine is made of three layers of non-woven fabrics by hot pressing. The manufacture of a mask requires the cooperation of a mask body machine and an earband welding machine to produce a complete mask.

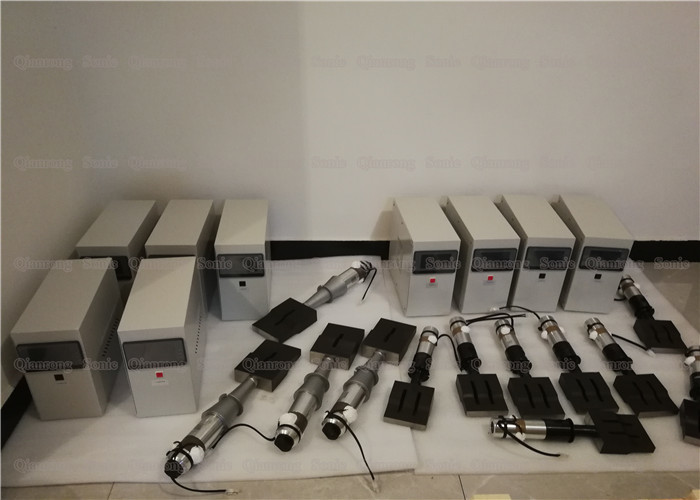

The 15K ultrasonic welding kit produced by QRsonic company is mainly used for the production of full-automatic folding mask body. Using 15K ultrasonic welding technology, 3-5 layers of PP non-woven fabric, activated carbon and filter material are bonded and cut out. Folding mask body, can process 9001, 9002 mask body. Depending on the raw materials used, the produced masks can reach different standards such as FFP1, FFP2, N95 and so on.





Specifications:



Model QR-6015-4BZ
Frequency 15 khz
Output power 2600 watt
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 9-13.5nf
Amplitude 15 um
Application Mask Making machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



Qty of Ceramic (pc)

Frequency (khz)



Capacitance

power (W)



Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000   17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000   19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500   700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000   22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20     11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500     1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000   900
4020-2BZ 1/2-20UNF 40 2 20   4800-5500   500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500     800
The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



Qty of Ceramic (pc)

Frequency (khz)



Capacitance

power (W)



Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100





15Khz Ultrasonic Piezoelectric Transducer with 2600w High Power for Large 270mm Welding Horn
