Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-S20DL |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Sealing Rotary Parts | Frequency: | 20KHZ |
|---|---|---|---|
| Power: | 2500W | Generator: | Digital Power Supply |
| Width Of Welding Wheel: | 22mm | Matched Transducer: | 5020-4D PZT4 |
| Generator Size: | 400*195*98mm | Application: | Fabric Materials |
| Highlight: | 2500w Ultrasonic Welding System,Seamless Ultrasonic Welding System,22mm Width Ultrasonic Welding System |
||

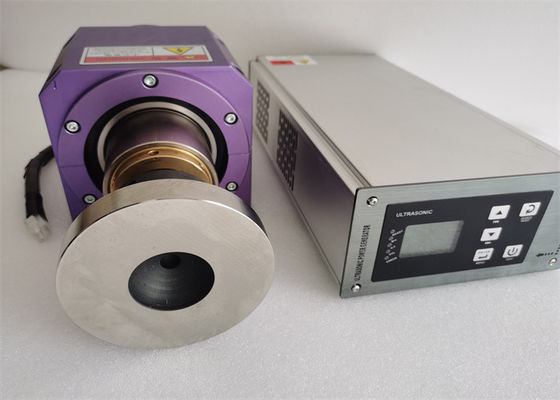

2500w High Frequency 20Khz Ultrasonic Sealing Rotary Welding System
Description:
20Khz ultrasonic seamless welding system, using customized 22mm width disc tool head. The core component of this ultrasonic radial sewing machine is a new product developed by our company. It completely solves the problem that the movement direction of the ultrasonic welding head in the original ultrasonic longitudinal vibration technology is inconsistent with the movement direction of the cloth, and the problem is not synchronized.
The core technology of ultrasonic seamless stitching is the use of a disk-type welding head for roll welding, which skillfully converts the longitudinal vibration of the transducer into a radial vibration of 360 ° radiation from the disk-shaped welding head in the diameter direction. And unlike the traditional lace machine, the traditional lace machine is generally composed of a flat tool head and a patterned roller. Because the tool head is stationary, it is easy to cause deformation and wrinkle of fabrics such as cloth during work, and roll welding This type of seamless sewing equipment uses two discs to vibrate to sew fabric, which solves this problem well. This not only shortens the volume of the vibration system itself, but also greatly reduces the installation size. The whole machine is beautiful, the volume is reduced, and the weight is greatly reduced.
Specifications:
| Item No | QR-S20DL |
| Power | 2500W |
| Generator | Digital generator |
| Frequency | 20KHZ |
| Voltage | 220V or 110V |
| Width of welding wheel | 22mm |
| Matched Transducer | 5020-4D PZT4 |
| Generator size | 400*195*98mm |
Compared with the traditional needle-type wired sewing, the non-woven ultrasonic sewing machine has the following advantages:
1. Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need for frequent needle changes, without the broken joints of traditional thread sewing, and neatly cutting and sealing textiles. Stitching also plays a decorative role. Strong adhesion, can achieve waterproof effect, clear embossing, three-dimensional relief effect on the surface, fast working speed, good product effect, more high-grade and beautiful, quality guaranteed.
2. Using ultrasonic and special steel wheel processing, the sealed edges will not crack, will not hurt the edges of the cloth, and there will be no burrs or curling.
3. No preheating is required during manufacture and continuous operation is possible.
4. The operation is simple, and there is not much difference with the traditional sewing machine operation method, and ordinary sewing workers can operate it.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.
2500w High Frequency 20Khz Ultrasonic Sealing Rotary Welding System
