22mm 20Khz Rotary Horn Ultrasonic Sealing System For Package Bag Edge

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-S20DL
Products Name:
Ultrasonic Sealing Rotary System
Frequency:
20KHZ
Power:
2500W
Generator:
Digital Control Box
Width Of Welding Wheel:
22mm
Matched Transducer:
5020-4D PZT4
Generator Size:
400*195*98mm
Application:
Fabric Bag Materials
Highlight:

22mm Ultrasonic Sealing Equipment

,

Rotary Horn Ultrasonic Sealing System

,

20KHZ Ultrasonic Sealing System

Product Description

22mm Sealing and Cutting 20Khz Rotary Horn for Package Bag Edge Sealing




Description:


Ultrasonic sewing machine core is mainly composed of 20Khz ultrasonic transducer, horn (fixed function), tool head and supporting special numerical control power supply combination, using servo motor system to drive rollers to work. Ultrasonic sewing machine uses high-frequency vibration to transmit sound waves from the welding head to the welding surface of the work object, instantly causing the molecules of the work object to friction and reach the melting point of the plastic, thereby completing the rapid welding of solid materials and completing the welding. The joint strength is close to that of a whole piece of continuous material. As long as the joint surface of the product is designed to match, there is absolutely no problem with complete sealing.




Specifications:



Item No QR-S20DL
Power 2500W
Generator Digital generator
Frequency 20KHZ
Voltage 220V or 110V
Width of welding wheel 22mm
Matched Transducer 5020-4D PZT4
Generator size 400*195*98mm




Advantage:



Traditional sewing machines stitch two cloths together through a needle-driven thread. During the threading process, not only the cloth is punctured but there is no bond between the cloth and the cloth, but they are tied together by a thin thread so that the cloth is easily pulled. Broken, the line is easy to break. Unexpectedly, thermoplastics can be used to stitch two cloths together by hot air welding. Needlework is not required but the welding temperature is difficult to control and the welding speed is slow.

Ultrasonic sewing machine core can sew most thermoplastic fabrics. Compared with ordinary needle and thread sewing, ultrasonic sewing does not require needle and thread, high sewing strength, good sealing and fast sewing speed. And the ultrasonic seamless stitching completely solves the problem that the movement direction of the ultrasonic welding head is inconsistent with the movement direction of the cloth, and the problem of non-synchronization will replace the ordinary sewing machine to a great extent.

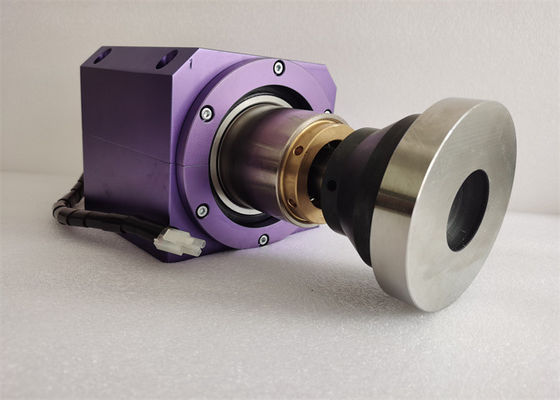

22mm Sealing and Cutting 20Khz Rotary Horn for Package Bag Edge Sealing



22mm 20Khz Rotary Horn Ultrasonic Sealing System For Package Bag Edge 022mm 20Khz Rotary Horn Ultrasonic Sealing System For Package Bag Edge 1

Tags:

ultrasonic fabric sewing machine,

ultrasonic embossing machine,

ultrasonic fabric welding machine
