22mm Wide Seamless Ultrasonic Welding System 20Khz

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-S20DL
Products Name:
Ultrasonic Sealing Rotary Welding System
Frequency:
20KHZ
Power:
2500W
Generator:
Digital Generator
Width Of Welding Wheel:
22mm
Matched Transducer:
5020-4D PZT4
Generator Size:
400*195*98mm
Application:
Fabric Materials Sealing Components
Highlight:

22mm Wide Ultrasonic Welding System

,

Seamless Ultrasonic Sewing Machine

,

20Khz Ultrasonic Sewing Machine

Product Description

Meeting Customer Requirement with 22mm Wide Seamless Welding Line 20Khz Ultrasonic System


Description:


Instead of a traditional sewing machine that stitches two pieces of cloth together through a needle-driven thread, the disadvantages of puncture and uneven bonding of the cloth are improved. The 20K ultrasonic seamless stitching system is completely synchronized with the rotation of the welding wheel and the pressing wheel during stitching. There is no speed and angle difference, and it will not cause the stretching, distortion or deformation of the fabric, and the accuracy is extremely high. All thermoplastic (softened after heating) fabrics, special tapes, and films can be welded using ultrasonic seamless stitching equipment. The rollers are made of quenched steel to extend the service life.


Specifications:



Item No QR-S20DL
Power 2500W
Generator Digital generator
Frequency 20KHZ
Voltage 220V or 110V
Width of welding wheel 22mm
Matched Transducer 5020-4D PZT4
Generator size 400*195*98mm



Advantages:



1. Using ultrasonic welding, eliminating the need for needle and thread, eliminating the need for frequent needle changes, without the broken joints of traditional thread sewing, and neatly cutting and sealing textiles. Stitching also plays a decorative role. Strong adhesion, can achieve waterproof effect, clear embossing, three-dimensional relief effect on the surface, fast working speed, good product effect, more high-grade and beautiful, quality guaranteed.

2. Using ultrasonic and special steel wheel processing, the sealed edges will not crack, will not hurt the edges of the cloth, and there will be no burrs or curling.

3. No preheating is required during manufacture and continuous operation is possible.

4. The operation is simple, and there is not much difference with the traditional sewing machine operation method, and ordinary sewing workers can operate it.

5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.

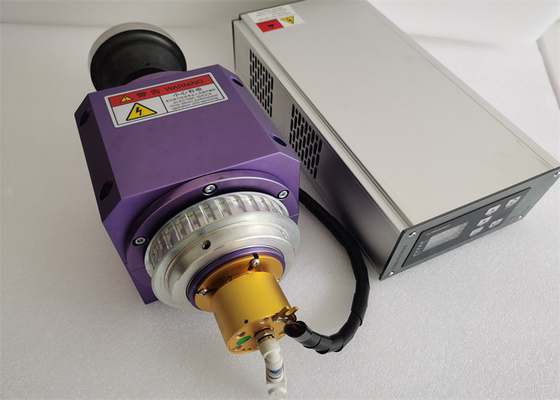

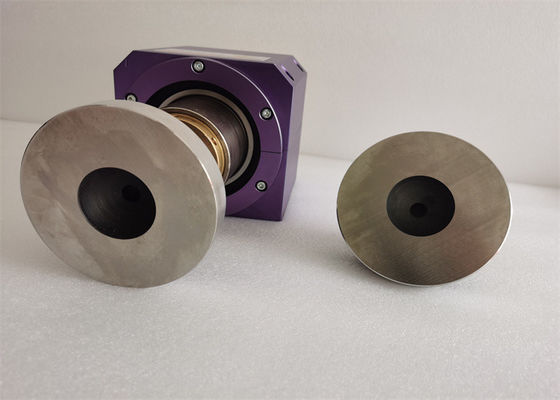

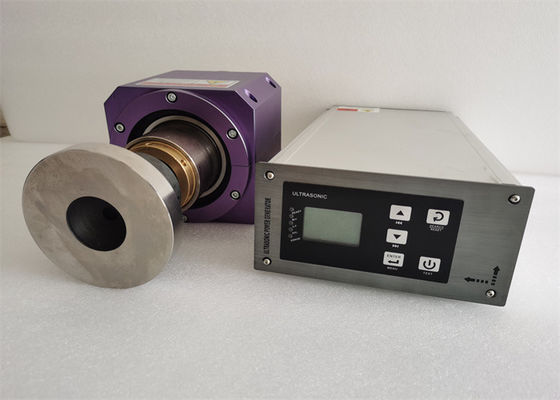

Meeting Customer Requirement with 22mm Wide Seamless Welding Line 20Khz Ultrasonic System



22mm Wide Seamless Ultrasonic Welding System 20Khz 0



22mm Wide Seamless Ultrasonic Welding System 20Khz 1
