35Khz Ultrasonic Welder Transducer For Rotary Sealing Fabric Machine
  • name
  • name
  • name
  • name

35Khz Ultrasonic Welder Transducer For Rotary Sealing Fabric Machine

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3535-4BD
Products Name:
Ultrasonic Welding Transducer
Frequency:
35 Khz
Output Power:
800 Watt
Joint Bolt:
M8*1
Ceramic Disc Diameter:
35mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
6.6-7.4nf
Amplitude:
6um
Highlight:

35 Khz Ultrasonic Transducer

,

Rotary Sealing Fabric Ultrasonic Transducer

,

800 Watt Ultrasonic Transducer

Product Description

35Khz Ultrasonic Welder Transducer Factory for Rotary Sealing Fabric Machine



Description:



This 35K ultrasonic transducer is mainly used in ultrasonic seamless suture system. The core technology of the ultrasonic seamless stitching system lies in the use of a disc-shaped welding head for seam welding. Ingeniously convert the longitudinal vibration of the 35Khz ultrasonic transducer into a radial vibration that radiates 360° outward along the diameter of the disc-shaped welding head.





Specifications:



Model QR-3535-4BD
Frequency 35khz
Output power 800 watt
Joint bolt M8*1
Ceramic disc Diameter 35mm
Qty of ceramic discs 4pcs
Capacitance 6.6-7.4nf
Amplitude 6 um
Application Plastic welding machine





Ultrasonic transducer process differentiation can be divided into the following points:



1. It can be identified from the manufacturing process and appearance of the ultrasonic transducer. The transducer indirectly shows that the company pays attention to the quality of the product, and the quality of the process and appearance is naturally better. Moreover, the design process indirectly affects the quality of production.

2. It can be identified according to the process design and application data of the ultrasonic transducer, but this requirement is very understandable and experienced for the transducer data. Whether the design can be reasonably determined should be based on the selection of materials. The quality of the data indirectly affects the quality of the product. The same specifications of the origin of the data is not the same, the quality will vary greatly.

3. Parameter detection, whether the parameters of the ultrasonic transducer can be matched with the parameters of the electric box, can it reach the ideal effect.

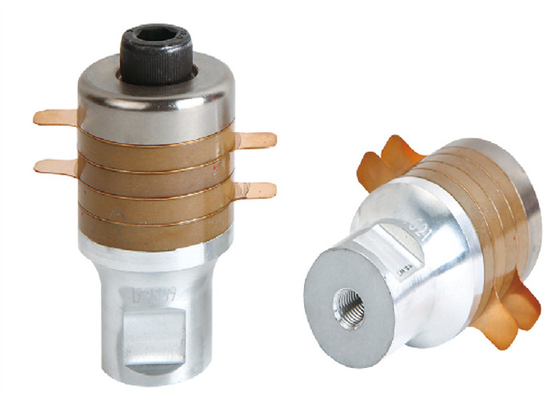

35Khz Ultrasonic Welder Transducer Factory for Rotary Sealing Fabric Machine

35Khz Ultrasonic Welder Transducer For Rotary Sealing Fabric Machine 035Khz Ultrasonic Welder Transducer For Rotary Sealing Fabric Machine 1

Tags:

high frequency ultrasonic transducer,

ultrasonic piezo transducer,

piezoelectric transducer ultrasound
