High Power 3000w Ultrasonic 20Khz Transducer For Water Cavitation And Vibration
  • name
  • name
  • name
  • name

High Power 3000w Ultrasonic 20Khz Transducer For Water Cavitation And Vibration

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-5020-6BD
Products Name:
Ultrasonic Pizoelectric Transducer
Frequency:
20 Khz
Output Power:
3000 Watt
Joint Bolt:
1/2-20UNF
Ceramic Disc Diameter:
50mm
Qty Of Ceramic Discs:
6pcs
Capacitance:
11-13nf
Amplitude:
10 Um
Highlight:

High Power 20Khz Transducer

,

3000 Watt 20 Khz Transducer

,

Water Cavitation 20khz Ultrasonic Transducer

Product Description

High Power 3000w Ultrasonic 20Khz Transducer for Water Cavitation and Vibration



Description:



20Khz 3000w High Power Ultrasonic transducer has played a key role in the application of ultrasonic sonochemistry technology.

Scientists refer to the number of vibrations per second as the frequency of the sound, and its unit is Hertz. The frequency of sound waves that we can hear in human ears is 20 to 20,000 Hz. When the vibration frequency of the sound wave is greater than 20KHz or less than 20Hz, we will not hear it. Therefore, we refer to sound waves with frequencies above 20,000 Hz as "ultrasonics." The ultrasonic frequency commonly used for medical diagnosis is 1 to 5 MHz.





Specifications:



Model QR-5020-6BD
Frequency 20 khz
Output power 3000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 6pcs
Capacitance 11-13nf
Amplitude 10 um
Application Ultrasonic Sonochemistry System




Parameters:



Item No.



Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



 Capacitance

Input power (W)


Yellow Grey Black
6015-4BZ-BZ M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-LR M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
6015-4BZ-RS M16 *1 60 4 9000-10000 10000-11000 12500-13500 2600
7015-4BZ-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BD-BZ M16 *1 60 4 9000-10000 10000-11000 / 2600
6015-6BD-BZ M16 *1 60 6 19000-20500 / 23000-25000 3600
7015-4BD-BZ M16 *1 70 4 12500-14000 / / 3600
6015-4BZ-LS M16 *1 60 8 18000-20000 20000-22000 / 4200
4515-4YZ-SS M16 *1 45 8 / / 25000-27000 2400
4515-4JZ-SS M16 *1 45 8 19000-21000 / / 2800
5015-4BZ-SZ M16 *1 50 8 22000-24000 / / 3600
5020-4CZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4BZ-BJ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5520-4BZ-BJ 3/8-24UNF 55 4 10500-11500 / / 1800
5020-4BZ-BZ 3/8-24UNF 50 4 11000-12000 13000-14000 14500-16000 1500
5020-4HZ-BJ 3/8-24UNF 50 4 / / 11000-12000 1500
3820-4BZ-SS 3/8-24UNF 38 8 13000-14500 / / 1800
5020-4BZ-LS 1/2-20UNF 50 8 23000-25000 26000-28000 / 2800
3028-2BZ-BT / 30 2 2800-3300 3300-3800 / 400
3828-4BZ-BJ M8*1 38 4 7200-8200 / 10000-12000 800
3828-4BZ-BJL M8*1 38 4 7200-8200 / 10000-12000 800
3828-2BZ-BJL M8*1 38 2 3700-4200 / / 500
3030-4BZ-SJL M10 30 4 / 6200-7200 / 700
3030-4BZ-LJL M10 30 4 / 6200-7200 / 700
3030-4BZ-BJ M8 30 4 / 6200-7200 / 700
3535-4BD-II M8 35 4 6600-7400 / 9200-10200 800
3035-4BZ-BJL M8 30 4 5500-6200 / / 700
3040-4BZ-BJ M8 30 4 5100-5800 / 6500-7500 500
1560-2BZ-BJ / 15 2 / / 700-850 100
1070-2BZ-BJ / 10 2 700-800 / / 100






High Power 3000w Ultrasonic 20Khz Transducer for Water Cavitation and Vibration

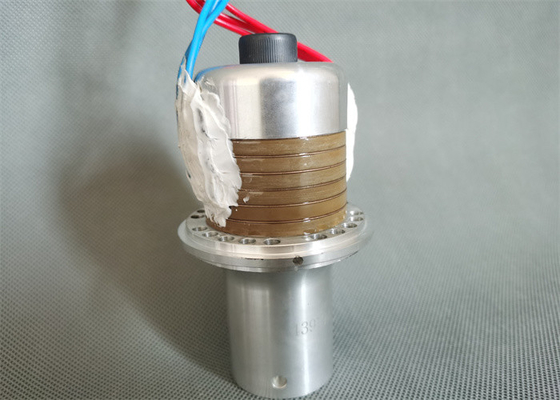

High Power 3000w Ultrasonic 20Khz Transducer For Water Cavitation And Vibration 0

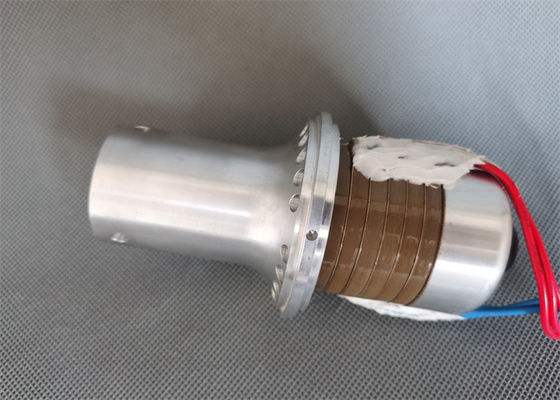

High Power 3000w Ultrasonic 20Khz Transducer For Water Cavitation And Vibration 1





Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
