Active Sensor Piezoelectric Ultrasonic Transducer 40Khz For Welding Cutting

MOQ:	1 pcs
Price:	Negotation
Standard Packaging:	Packed in carton
Delivery Period:	3 workdays
Payment Method:	T/T, Western Union
Supply Capacity:	2000pcs per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QRsonic

Certification

Model Number

QR-2540-4BD

Products Name:

Ultrasonic Piezoelectric Transducer

Frequency:

40 Khz

Output Power:

300 Watt

Joint Bolt:

Ceramic Disc Diameter:

Qty Of Ceramic Discs:

Capacitance:

4.5-6.5nf

Amplitude:

Highlight:

Active Sensor Ultrasonic Piezoelectric Transducer

Piezoelectric Ultrasonic Transducer 40Khz

300 Watt Ultrasonic Transducer 40Khz

Product Description

Active Sensor Piezoelectric Ultrasonic Transducer 40Khz for Welding or Cutting Application

Description:

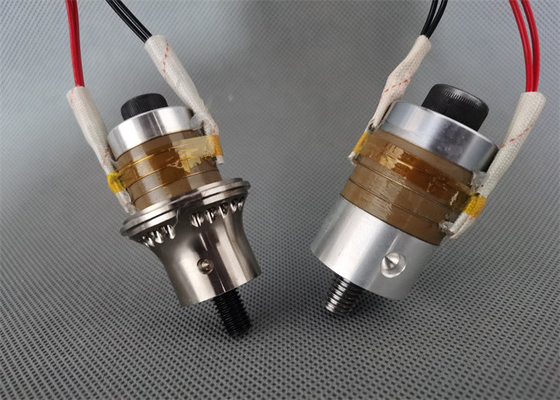

40Khz Ultrasonic transducers convert electrical energy, mechanical energy or acoustic energy from one form of energy to another form of energy device, also known as an ultrasonic transducer, also known as an active sensor. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, also known as piezoelectric transducer. The transducer is composed of a central piezoelectric ceramic component, a front and rear metal cover, a pre-stressed screw, an electrode sheet, and an insulating tube. Ultrasonic transducers are used in almost all ultrasonic equipment. Qianrong ultrasonic equipment is the source of ultrasonic titanium alloy transducers and core components.

Specifications:

Model	QR-2540-4BD
Frequency	40khz
Output power	300 watt
Joint bolt	M8
Ceramic disc Diameter	25mm
Qty of ceramic discs	4pcs
Capacitance	4.5-6.5nf
Amplitude	4 um
Application	Plastic welding machine

Parameters:

The columnar type NTK TYPE
Item No.	Connect screw	Ceramic dia (mm)	Qty of Ceramic (pc)	Frequency (khz)	Capacitance			power (W)
Item No.	Connect screw	Ceramic dia (mm)	Qty of Ceramic (pc)	Frequency (khz)	Yellow	Grey	Black	power (W)
7015-4BZ	M20 X 1.5	70	4	15	12500-14000		17000-19000	2600
6015-4BZ	M20 X 1.5	60	4	15	8000-10000	10000-12000	12500-13500	2200
6015-6BZ	M20 X 1.5	60	6	15	14000-16000		19500-21000	2600
5015-4BZ	M18 X 1.5	50	4	15	12000-13000	13000-14300	15000-17000	1500
4015-4BZ	M16 X 1	40	4	15	10000-11000	10500-11500		700
5520-4BZ	M18 X 1	55	4	20	10000-11000	10500-11500	14300-20000	2000
5020-6BZ	M18 X 1.5	50	6	20	18500-20000		22500-25000	2000
5020-4BZ	M18 X 1.5	50	4	20	11000-13000	13000-15000	15000-17000	1500
5020-2BZ	M18 X 1.5	50	2	20	6000-6500	6500-7000	8000-9000	800
5020-4CZ	M18 X 1.5	50	4	20	11000-12000	13000-14000	14500-16000	1500
5020-4HZ	M18 X 1.5	50	4	20			11000-12000	1500
5020-4BL	M18 X 1.5	50	4	20	11000-12500			1500
4020-4BZ	1/2-20UNF	40	4	20	9000-10000	9500-11000		900
4020-2BZ	1/2-20UNF	40	2	20		4800-5500		500
3820-4BZ	1/2-20UNF	38	4	20	6500-7500			800
The columnar type NTK TYPE
Item No.	Connect screw	Ceramic dia (mm)	Qty of Ceramic (pc)	Frequency (khz)	Capacitance			power (W)
Item No.	Connect screw	Ceramic dia (mm)	Qty of Ceramic (pc)	Frequency (khz)	Yellow	Grey	Black	power (W)
5025-2BZ	M12 X 1	50	2	25	5000-5600		7000-8000	500
3828-2BZ	1/2-20UNF	38	2	28	3800-4300			500
3828-4BZ	1/2-20UNF	38	4	28	7600-8500		10500-12000	800
3028-2BZ	3/8-24UNF	30	2	28	2700-3100	3400-3800		400
3028-4BZ	M10*1	30	4	28		6000-7000		700
2528-4FZ	M8 X 1	25	4	28	3900-4300			400
2528-2FZ	M8 X 1	25	2	28	1950-2200	2200-2500		300
3030-4BZ	M10	30	4	30		6200-6900		700
3035-2FZ	3/8-24UNF	30	2	35	2700-3100			500
3035-4BZ	M10 X 1	30	4	35	5000-6200			800
2535-2FZ	M8 X 1	25	2	35	1900-2200			400
2540-2BZ	3/8-24UNF	25	2	40		2000-2300		500
3040-4BZ	M10	30	4	40	5500-6200			1000
3050-4BZ	M8	30	4	50	5500-6200			600
1560-2BZ	M6 X 0.75	15	2	60			700-800	100

Atten:

The matching of the transducer with the electric box and the mold is the basis for the reliability of the system and the maximum power of the transducer. After the transducer is completed, there will be no adjustable parts. Adjust the electrical box and mold to match the working state of the transducer.
It is recommended to adjust the matching in the following steps:
First, adjust the oscillation frequency of the electric box to suit the dynamic range of the transducer.
Step 2: Adjust the matching circuit so that the no-load current of the transducer is less than 0.5A. The tuning voltage deviation should always be less than 0.2A, and check the transducer for normal vibration and heating.
The third step: connect the mold, with the load, and adjust the electric box to make the output power of the system meet the requirements for use.
Step 4: Full power test for a certain period of time, check that the state changes of the transducer and the electric box should be within the normal range.

Active Sensor Piezoelectric Ultrasonic Transducer 40Khz for Welding or Cutting Application
