2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder
  • name
  • name
  • name
  • name

2pcs Piezoelectric Ceramics Ultrasonic Transducer 28Khz For Spot Plastic Welder

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-3028-2BZ
Products Name:
Ultrasonic Welding Transducer
Frequency:
28 Khz
Output Power:
400 Watt
Joint Bolt:
3/8-24UNF
Ceramic Disc Diameter:
30mm
Qty Of Ceramic Discs:
2pcs
Capacitance:
2.8-3.8nf
Amplitude:
8um
Highlight:

Plastic Welder Ultrasonic Transducer

,

2pcs Piezoelectric Ceramics Ultrasonic Transducer

,

Spot Welder Ultrasonic Transducer

Product Description

28Khz Ultrasonic Welding Transducer for Spot Plastic Welder with 2pcs Piezoelectric Ceramics





Description:



28Khz ultrasonic welding transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.

Ultrasonic is widely used in production, such as welding, cutting, slitting, and plastic welding of various non-woven/chemical fiber cloths. However, due to the difference between ultrasonic and high-frequency principles, the applicable raw materials and applications are also applicable.





Specifications:



Model QR-3028-2BZ
Frequency 28khz
Output power 400 watt
Joint bolt 3/8-24UNF
Ceramic disc Diameter 30mm
Qty of ceramic discs 2pcs
Capacitance 2.8-3.8nf
Amplitude 8 um
Application Plastic welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100





Ultrasonic transducer manufacturing process:


The transducer consists of a shell, a matching layer, a piezoelectric ceramic disc transducer, a backing, a lead-out cable and a Cymbal array receiver. The piezoelectric ceramic disc transducer is made of PZT-5 piezoelectric material polarized in the thickness direction, and the Cymbal array receiver is composed of 8 to 16 Cymbal transducers, two metal rings and rubber gaskets.
1. Dry with hot air gun
2. Swing the electrode first
3. Ceramics, electrodes, ceramics
4. Back cover, screws
5. Positioning
6. Afterburner
7. Glue
8. Put the oven
9. Test with a test machine
10. Filling the seam
11. Test again before packing

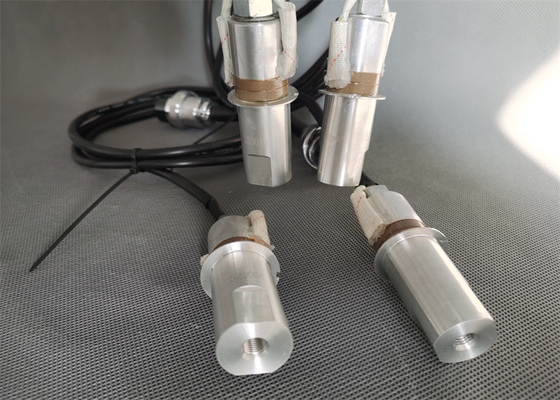

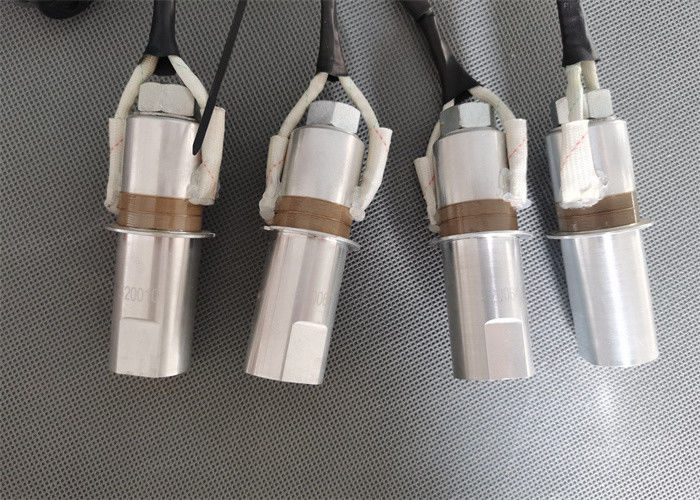

28Khz Ultrasonic Welding Transducer for Spot Plastic Welder with 2pcs Piezoelectric Ceramics
