High Power Ultrasonic Piezoelectric Transducer 10 - 12nf Capacitance 15Khz
  • name
  • name
  • name
  • name

High Power Ultrasonic Piezoelectric Transducer 10 - 12nf Capacitance 15Khz

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-4BZG
Products Name:
Ultrasonic Pieo Transducer
Frequency:
15 Khz
Output Power:
2200 Watt
Ceramic:
Grey
Ceramic Disc Diameter:
60mm
Qty Of Ceramic Discs:
4pcs
Capacitance:
10-12nf
Amplitude:
10 Um
Highlight:

High Power Ultrasonic Piezoelectric Transducer

,

Ultrasonic Piezoelectric Transducer 15Khz

,

12nf Ultrasonic Piezoelectric Transducer

Product Description

High Power Ultra Piezoelectric Transducer with 10-12nf Capacitance 15Khz





Description:



QRsonic ultrasonic transducer uses high-quality, high-consistency piezoelectric ceramics, professional structure design, stable operation, high stability, high consistency, high load test, non-hot, high amplitude, low impedance, stable wave, Characteristics of constant waves.

Ultrasonic transducer is an energy conversion device. Its function is to convert the input electric power into mechanical power (ultrasound) and then transmit it out, and it consumes only a small amount of power.





Specifications:



Model QR-6015-4BZG
Frequency 15 khz
Output power 2200 watt
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 10-12nf
Amplitude 10 um
Application Plastic welding machine





Composition:



The ultrasonic transducer is mainly composed of a central piezoelectric ceramic element, front and rear metal cover plates, pre-stressed screws, electrode sheets and insulating tubes. The specific composition is shown in the figure below.

1. Rear driver: the cylindrical element on the back of the piezoelectric transducer, the rear driver is close to the last piece of piezoelectric ceramic, and the pre-tightening pressure is usually applied by stacking bolts.
2. Electrode sheet: a thin conductive disc between the piezoelectric ceramics adjacent to the transducer. The transducer drive voltage is applied between these electrodes.
3. Front-end driver: Transmit the ultrasonic energy of the transducer to the horn or tool head. The front-end driver usually includes a mounting flange for connecting the housing.
4. Prestressed screw: A single stacked bolt passes through the center hole of the ceramic. After tightening the bolt, the ceramic will be compressed between the rear driver and the front driver to apply the required prestress to the ceramic.
5. Piezoelectric ceramics: Piezoelectric ceramics is the heart of the transducer, a component that converts the electrical signal of the ultrasonic generator into linear mechanical vibration.





High Power Ultra Piezoelectric Transducer with 10-12nf Capacitance 15Khz

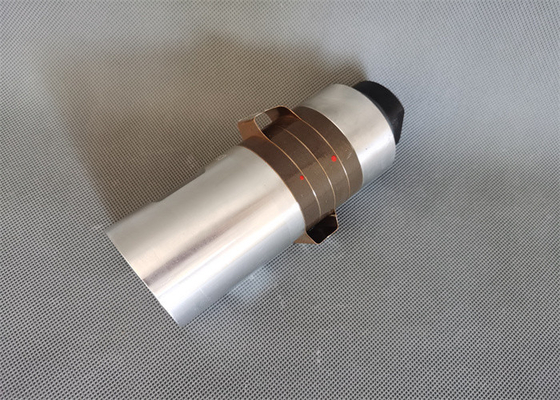

High Power Ultrasonic Piezoelectric Transducer 10 - 12nf Capacitance 15Khz 0
