| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-2528-2FZ |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Welding Oscillator | Frequency: | 28 Khz |
|---|---|---|---|
| Output Power: | 300 Watt | Joint Bolt: | M8*1 |
| Ceramic Disc Diameter: | 25mm | Qty Of Ceramic Discs: | 2pcs |
| Capacitance: | 1.9-2.6nf | Amplitude: | 8um |
| High Light: | 28Khz Ultra Welding Converter,Welding Converter With 2pcs Ceramics,2pcs Ceramics Welding Converter |
||

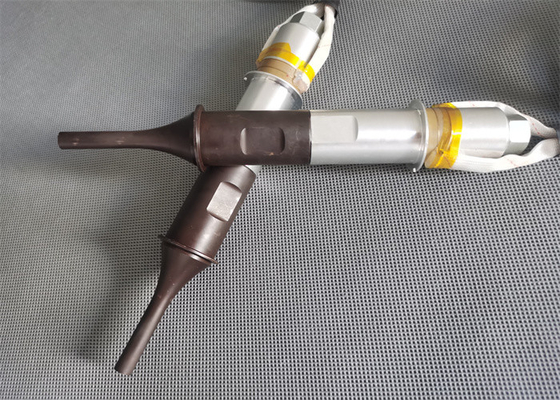

28Khz Ultra Welding Converter with 2pcs Ceramics 300w for Tea Bag Jointing
Description:
Ultrasonic transducers are energy devices that convert electrical energy, mechanical energy, or acoustic energy from one form of energy to another, also known as ultrasonic transducers, also known as active sensors. One of the most mature and reliable is the device that converts electrical energy and acoustic energy by piezoelectric effect, also known as piezoelectric transducer.
Specifications:
| Model | QR-2528-2FZ |
| Frequency | 28khz |
| Output power | 300 watt |
| Joint bolt | M8*1 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 2pcs |
| Capacitance | 1.9-2.6nf |
| Amplitude | 8 um |
| Application | Plastic welding machine |
Parameters:
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 7015-4BZ | M20 X 1.5 | 70 | 4 | 15 | 12500-14000 | 17000-19000 | 2600 | |
| 6015-4BZ | M20 X 1.5 | 60 | 4 | 15 | 8000-10000 | 10000-12000 | 12500-13500 | 2200 |
| 6015-6BZ | M20 X 1.5 | 60 | 6 | 15 | 14000-16000 | 19500-21000 | 2600 | |
| 5015-4BZ | M18 X 1.5 | 50 | 4 | 15 | 12000-13000 | 13000-14300 | 15000-17000 | 1500 |
| 4015-4BZ | M16 X 1 | 40 | 4 | 15 | 10000-11000 | 10500-11500 | 700 | |
| 5520-4BZ | M18 X 1 | 55 | 4 | 20 | 10000-11000 | 10500-11500 | 14300-20000 | 2000 |
| 5020-6BZ | M18 X 1.5 | 50 | 6 | 20 | 18500-20000 | 22500-25000 | 2000 | |
| 5020-4BZ | M18 X 1.5 | 50 | 4 | 20 | 11000-13000 | 13000-15000 | 15000-17000 | 1500 |
| 5020-2BZ | M18 X 1.5 | 50 | 2 | 20 | 6000-6500 | 6500-7000 | 8000-9000 | 800 |
| 5020-4CZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 13000-14000 | 14500-16000 | 1500 |
| 5020-4HZ | M18 X 1.5 | 50 | 4 | 20 | 11000-12000 | 1500 | ||
| 5020-4BL | M18 X 1.5 | 50 | 4 | 20 | 11000-12500 | 1500 | ||
| 4020-4BZ | 1/2-20UNF | 40 | 4 | 20 | 9000-10000 | 9500-11000 | 900 | |
| 4020-2BZ | 1/2-20UNF | 40 | 2 | 20 | 4800-5500 | 500 | ||
| 3820-4BZ | 1/2-20UNF | 38 | 4 | 20 | 6500-7500 | 800 | ||
| The columnar type NTK TYPE | ||||||||
|
Item No.
|
Connect screw
|
Ceramic dia (mm)
|
Qty of Ceramic (pc) |
Frequency (khz)
|
Capacitance |
power (W)
|
||
| Yellow | Grey | Black | ||||||
| 5025-2BZ | M12 X 1 | 50 | 2 | 25 | 5000-5600 | 7000-8000 | 500 | |
| 3828-2BZ | 1/2-20UNF | 38 | 2 | 28 | 3800-4300 | 500 | ||
| 3828-4BZ | 1/2-20UNF | 38 | 4 | 28 | 7600-8500 | 10500-12000 | 800 | |
| 3028-2BZ | 3/8-24UNF | 30 | 2 | 28 | 2700-3100 | 3400-3800 | 400 | |
| 3028-4BZ | M10*1 | 30 | 4 | 28 | 6000-7000 | 700 | ||
| 2528-4FZ | M8 X 1 | 25 | 4 | 28 | 3900-4300 | 400 | ||
| 2528-2FZ | M8 X 1 | 25 | 2 | 28 | 1950-2200 | 2200-2500 | 300 | |
| 3030-4BZ | M10 | 30 | 4 | 30 | 6200-6900 | 700 | ||
| 3035-2FZ | 3/8-24UNF | 30 | 2 | 35 | 2700-3100 | 500 | ||
| 3035-4BZ | M10 X 1 | 30 | 4 | 35 | 5000-6200 | 800 | ||
| 2535-2FZ | M8 X 1 | 25 | 2 | 35 | 1900-2200 | 400 | ||
| 2540-2BZ | 3/8-24UNF | 25 | 2 | 40 | 2000-2300 | 500 | ||
| 3040-4BZ | M10 | 30 | 4 | 40 | 5500-6200 | 1000 | ||
| 3050-4BZ | M8 | 30 | 4 | 50 | 5500-6200 | 600 | ||
| 1560-2BZ | M6 X 0.75 | 15 | 2 | 60 | 700-800 | 100 | ||
28Khz Ultra Welding Converter with 2pcs Ceramics 300w for Tea Bag Jointing
