Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-W20 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotation |
| Packaging Details: | Packed in wooden case |
| Delivery Time: | 7 workdays |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Products Name: | Ultrasonic Welding Parts | Frequency: | 20Khz |
|---|---|---|---|
| Power: | 2000W | Generator: | Digital Generator With LCD Screen |
| Width Of Welding Wheel: | 110*20mm Or Customized | Materials Of Welding Horn: | Special Steel |
| Net Weight Of Welding Horn: | 5.5kgs | Application: | Making Surgical Gowns |
| Highlight: | 20Khz Ultrasonic Welding Parts,2000w Ultrasonic Welding Parts,Surgical Gowns Ultrasonic Welding Parts |
||

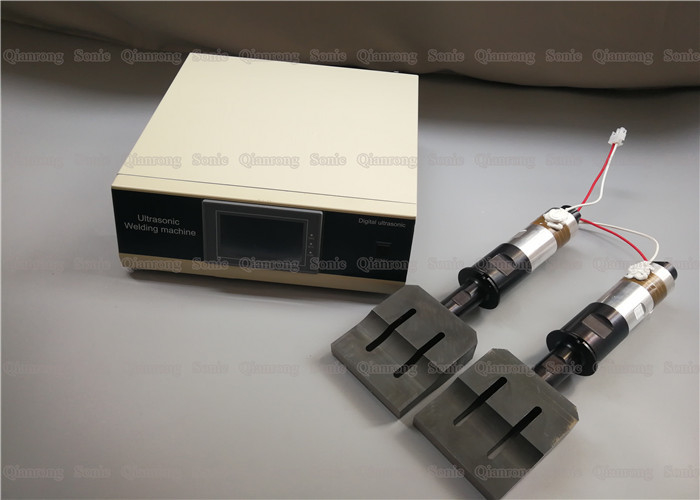

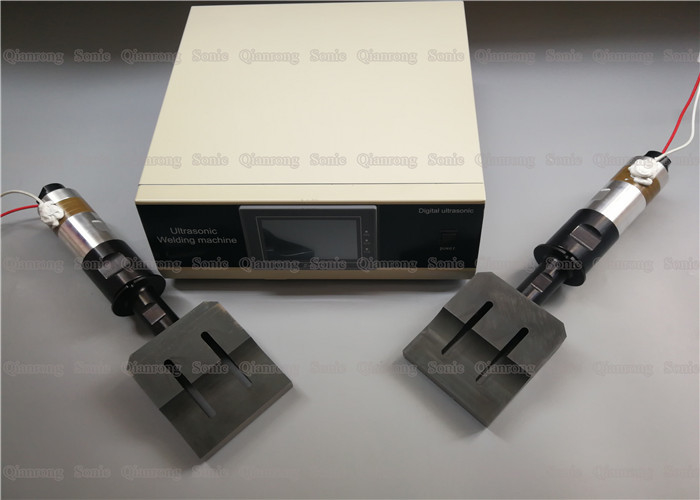

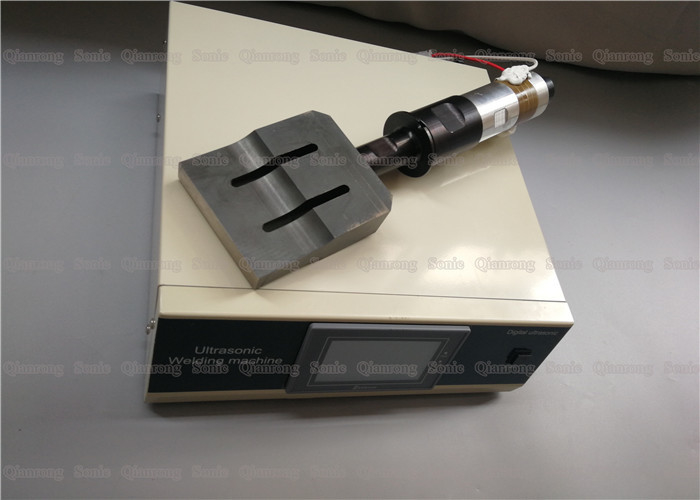

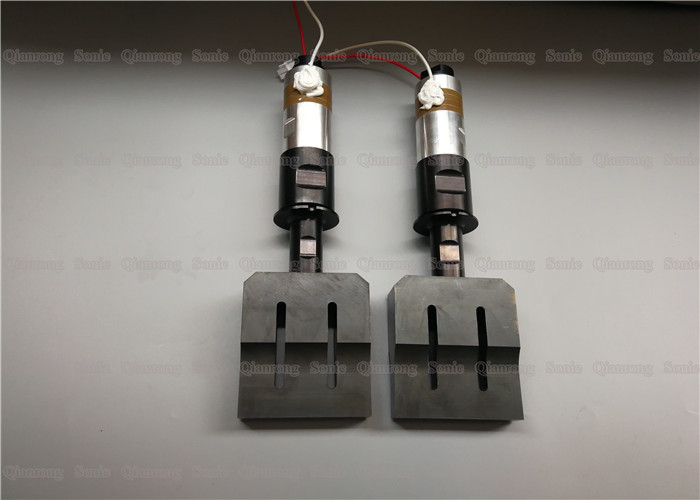

20Khz 2000w Ultrasonic Welding Parts for Making Surgical Gowns
Description:
QRsonic provides ultrasonic accessories for Surgical Gowns stitching. 20Khz 2000W Ultrasonic welding machine which is also named ultrasonic sewing machine is an efficient suture, embossing device. It is mainly used for the seam edge, fusion edge, melt cutting, embossing of synthetic fiber fabrics. The processed products have good water tightness, high production efficiency, no needle thread accessories, smooth melted surface without burrs and good hand feeling.
The high-frequency oscillation is used to transmit the sound wave to the welding surface of the workpiece by the welding head, and the molecules of the workpiece are instantly rubbed to reach the melting point of the plastic, so as to complete the rapid dissolution of the solid material and complete the welding; the strength of the joint is close to that of a whole piece of continuous material. , as long as the joint surface of the product is designed to match, it can be completely sealed and welded.
Specifications:
| Classification | QR-20K |
| Frequency | 20Khz |
| Power | 2000w |
| Voltage | 220V |
| Generator | Digital generator |
| Material of Horn | Steel |
| Dimension of horn | 110*20mm |
| Net weight of horn | 5.5kgs |
| Dimension of generator | 380*130*350mm |
| Net weight of generator | 6kgs |
| Package | Wooden case |
| Application | Non woven mask welding |
Features of Ultrasonic Sewing machine:
Ultrasonic Sewing machine has high conversion rate and long life
1. The power and frequency of the ultrasonic lace machine adopts the analog pulse high-frequency oscillation form, which can observe the change of power and frequency at any time, and provides an accurate basis for controlling and detecting ultrasonic waves.
2. Wide frequency tracking technology: When the output frequency of the ultrasonic generator does not match the frequency of the transducer, it not only affects the experimental effect, but even damages the device when the deviation is large. Therefore, we use frequency tracking technology to make the output frequency of the ultrasonic generator always match the frequency of the transducer, thus ensuring the quality of stitching and embossing, and greatly extending the life of the ultrasonic generator and the transducer device.
20Khz 2000w Ultrasonic Welding Parts for Making Surgical Gowns
