20Khz Ultra Rotary Sewing Machine With 22mm Seamless Welding Line

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 7 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-S20DL
Products Name:
Ultrasonic Seamless Rotary Welder
Frequency:
20KHZ
Power:
2500W
Generator:
Digital Power Supply
Width Of Welding Wheel:
22mm
Matched Transducer:
5020-4D PZT4
Generator Size:
400*195*98mm
Application:
Fabric Materials Sealing Components
Highlight:

20 Khz Ultra Rotary Sewing Machine

,

20Khz Ultra Rotary Sewing Machinery

,

22mm Seamless Sewing Machine

Product Description

20Khz Ultra Rotary Sewing Machinery with 22mm Seamless Welding Line for Fabric




Description:


The core component of 20Khz ultrasonic rotary seamless sewing machine (also called ultrasonic radial sewing machine) is a roller-type welding tool head. It completely solves the inherent problem of the original ultrasonic longitudinal vibration technology, that is, the movement direction of the ultrasonic welding head is inconsistent with the movement direction of the cloth and is not synchronized. The precision of ultrasonic cloth sewing has been greatly improved, which makes it possible for ultrasonic technology to be widely used in the field of garment sewing. Ultrasonic seamless sewing creates a seam by melting and solidifying the synthetic fibers of the material, which will not fray or tear.




Specifications:



Item No QR-S20DL
Power 2500W
Generator Digital generator
Frequency 20KHZ
Voltage 220V or 110V
Width of welding wheel 22mm
Matched Transducer 5020-4D PZT4
Generator size 400*195*98mm





Advantages:



Traditional sewing machines stitch two cloths together through a needle-driven thread. During the threading process, not only the cloth is punctured but there is no bond between the cloth and the cloth, but they are tied together by a thin thread so that the cloth is easily pulled. Broken, the line is easy to break. Unexpectedly, thermoplastics can be used to stitch two cloths together by hot air welding. Needlework is not required but the welding temperature is difficult to control and the welding speed is slow.

Ultrasonic sewing machine core can sew most thermoplastic fabrics. Compared with ordinary needle and thread sewing, ultrasonic sewing does not require needle and thread, high sewing strength, good sealing and fast sewing speed. And the ultrasonic seamless stitching completely solves the problem that the movement direction of the ultrasonic welding head is inconsistent with the movement direction of the cloth, and the problem of non-synchronization will replace the ordinary sewing machine to a great extent.

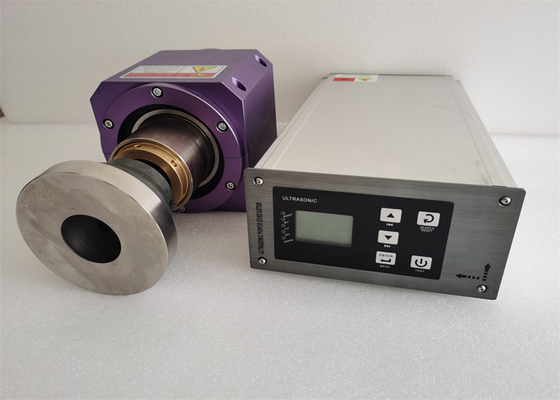

20Khz Ultra Rotary Sewing Machinery with 22mm Seamless Welding Line for Fabric



20Khz Ultra Rotary Sewing Machine With 22mm Seamless Welding Line 0

Tags:

ultrasonic fabric sewing machine,

ultrasonic embossing machine,

ultrasonic fabric welding machine
