Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | China |
|---|---|
| Brand Name: | QRsonic |
| Certification: | CE |
| Model Number: | QR-R35 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 3 workdays |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 2000pcs per month |
| Products Name: | Ultrasonic Replacement Converter | Frequency: | 35 Khz |
|---|---|---|---|
| Output Power: | 1200 Watt | Joint Bolt: | M8 |
| Ceramic Disc Diameter: | 25mm | Capacitance: | 2.1-2.3nf |
| Amplitude: | 6um | Application: | Ultrasonic Plastic Welding Machine |
| High Light: | High Frequency 35Khz Ultrasonic Converter,Replacement Rinco Ultrasonic Converter,Low Impedance Ultrasonic Converter |
||

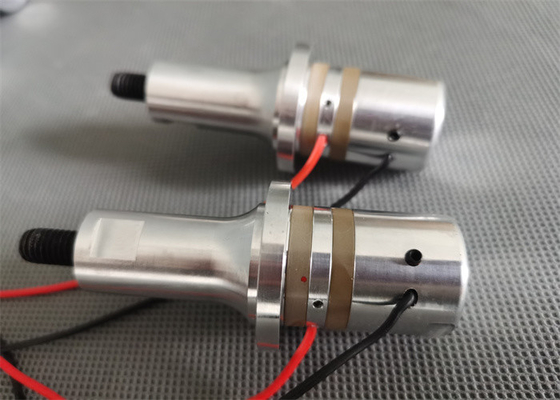

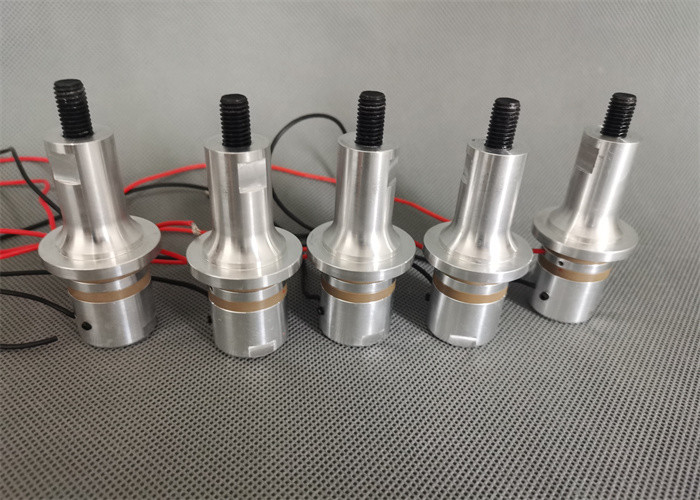

High Fre 35Khz Ultrasonic Replacement Rinco Converter with Low Impedance
Description:
It is imitated according to the parameters of the original Rinco transducer and used with the Rinco electric box. QRsonic uses high-quality, high-consistency piezoelectric ceramic sheets, designed according to the original structure, using international advanced simulation technology combined with self-developed high-precision assembly instruments, the imitation Rinco transducer runs stably, with high stability and high Consistency, high load test, no heat, high amplitude, low impedance, stable wave, continuous wave characteristics.
Specifications:
| Model | QR-R35 |
| Frequency | 35 khz |
| Output power | 800 watt |
| Joint bolt | M8 |
| Ceramic disc Diameter | 25mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 2.1-2.3nf |
| Amplitude | 6 um |
| Application | Plastic welding machine |
Specification:
| Item No |
Connect screw (Size)
|
Ceramic diameter (mm)
|
Quantity of Ceramic (pc)
|
Resonance frequency (khz)
|
Input Power | Machine |
| 1-QR-BCJ20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 2-QR-BCR20 | 1/2-20UNF | 50 | 6 | 20 | 3300 |
Branson 2000 series |
| 3-QR-B502 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 5170, 8800 |
| 4-QR-B402 | 1/2-20UNF | 40 | 4 | 20 | 900 |
Branson 8200, 8400 |
| 5-QR-B803 | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 8700 |
| 6-QR-B902J | 1/2-20UNF | 50 | 4 | 20 | 2000 |
Branson 910W or IW+ |
| 7-QR-B4TH | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 8-QR-B4TR | M8 | 25 | 4 | 40 | 800 | 40khz Branson welders |
| 9-QR-D20 | 1/2-20UNF | 50 | 2 | 20 | 2000 | 20khz Dukane Heavy Duty |
| 10-QR-D41S30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260 |
| 11-QR-D41C30 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 12-QR-D110-3122 | 1/2-20UNF | 50 | 4 | 20 | 2000 | |
| 13-QR-D110-3168 | 1/2-20UNF | 50 | 4 | 20 | 2000 | Dukane Model 43B18 |
| 14-QR-D41C28 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 15-QR-D41C29 | M8 | 35 | 2 | 40 | 800 | 40khz Dukane welders |
| 16-QR-R3510 | M8 | 25 | 4 | 35 | 800 | 35Khz Rinco Welders |
| 17-QR-R35 | M8*1.25 | 25 | 2 | 35 | 500 | 35khz Rico Welders |
| 18-QR-R20 | 1/2-20UNF | 50 | 2 | 20 | 1200 | |
| 19-QR-J3506 | M8 | 25 | 4 | 35 | 800 | |
| 20-QR-J3710 | M8 | 25 | 4 | 37 | 500 | CV231 |
| 21-QR-J3706-W1 | M8 | 25 | 4 | 37 | 500 | |
| 22-QR-J3706-W2 | M8 | 32 | 2 | 37 | 400 | CV3510 |
| 23-QR-T35 | M8 | 25 | 4 | 35 | 800 | 35khz Telsonic Machine |
| 24-QR-H20 | 1/2-20UNF | 50 | 6 | 20 | 3000 |
Special Items can be customized.
