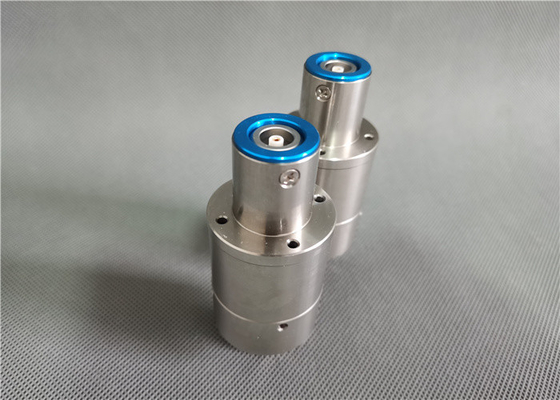

1200W Ultrasonic Replacement Telsonic Konverter High Frequency 35Khz For Plastic
  • name
  • name
  • name
  • name

1200W Ultrasonic Replacement Telsonic Konverter High Frequency 35Khz For Plastic

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-T35
Products Name:
Ultrasonic Replacement Telsonic Konverter
Frequency:
35 Khz
Output Power:
1200 Watt
Joint Bolt:
M8
Ceramic Disc Diameter:
25mm
Capacitance:
2.1-2.3nf
Amplitude:
6um
Application:
Cutting Or Welding Spare Parts
Highlight:

Ultrasonic Replacement Telsonic Konverter

,

High Frequency 35Khz Ultrasonic Welding Converter

,

1200W Ultrasonic Konverter

Product Description

1200W High Frequency 35Khz Ultrasonic Replacement Telsonic Konverter for Plastic Welder





Description:



35Khz ultrasonic Konverter is imitated according to the parameters of the original Telsonic transducer and matched with the Telsonic electric box. QRsonic uses high-quality, high consistency piezoelectric ceramic chips, which are designed according to the original structure, and are made by using international advanced simulation technology and self-developed high-precision assembly instruments. The imitated Rinco transducer runs stably, with high stability, high consistency, high load testing, no burning, high amplitude, low impedance, stable wave sending, and continuous wave characteristics.

Piezo converter converts 35kHz electrical signal from ultrasonic welding device power supply into mechanical vibratio.

Repacement Telsonic SE3512C Konverter. Ultrasonic transducer is a device that can convert high-frequency electrical energy into mechanical energy. It is generally magnetostrictive and piezoelectric ceramic. The power output is sent to the ultrasonic generator, and then to the ultrasonic transducer. The ultrasonic derivation device can generate ultrasonic waves.





Specifications:



Model QR-T35
Frequency 35 khz
Output power 1000 watt
Joint bolt M8
Ceramic disc Diameter 25mm
Qty of ceramic discs 4pcs
Capacitance 2.1-2.3nf
Amplitude 6 um
Application Plastic welding machine





Specification:



Item No

Connect screw (Size)



Ceramic diameter (mm)



Quantity of Ceramic (pc)



Resonance frequency (khz)



 Input Power Machine
1-QR-BCJ20 1/2-20UNF 50 6 20 3300

Branson

2000 series
2-QR-BCR20 1/2-20UNF 50 6 20 3300

Branson

2000 series
3-QR-B502 1/2-20UNF 50 4 20 2000

Branson

5170, 8800
4-QR-B402 1/2-20UNF 40 4 20 900

Branson

8200, 8400
5-QR-B803 1/2-20UNF 50 4 20 2000

Branson

8700
6-QR-B902J 1/2-20UNF 50 4 20 2000

Branson

910W or IW+
7-QR-B4TH M8 25 4 40 800 40khz Branson welders
8-QR-B4TR M8 25 4 40 800 40khz Branson welders
9-QR-D20 1/2-20UNF 50 2 20 2000 20khz Dukane Heavy Duty
10-QR-D41S30 1/2-20UNF 50 4 20 2000 Dukane model 43A250, 43A255, 43D255, 43E255, 43A260, or 43B260
11-QR-D41C30 1/2-20UNF 50 4 20 2000
12-QR-D110-3122 1/2-20UNF 50 4 20 2000
13-QR-D110-3168 1/2-20UNF 50 4 20 2000 Dukane Model 43B18
14-QR-D41C28 M8 35 2 40 800 40khz Dukane welders
15-QR-D41C29 M8 35 2 40 800 40khz Dukane welders
16-QR-R3510 M8 25 4 35 800 35Khz Rinco Welders
17-QR-R35 M8*1.25 25 2 35 500 35khz Rico Welders
18-QR-R20 1/2-20UNF 50 2 20 1200
19-QR-J3506 M8 25 4 35 800
20-QR-J3710 M8 25 4 37 500 CV231
21-QR-J3706-W1 M8 25 4 37 500
22-QR-J3706-W2 M8 32 2 37 400 CV3510
23-QR-T35 M8 25 4 35 800 35khz Telsonic Machine
24-QR-H20 1/2-20UNF 50 6 20 3000

Special Items can be customized.





Main factors of transducer failure:


1. Over fatigue crack caused by continuous long time work;
2. The design of the welding head is incorrect, or the welding head bursts, that is, the welding head frequency and resistance are incorrect;
3. The amplifier is not designed correctly or burst, which is caused by incorrect frequency and resistance of the amplifier;
4. The transducer is impacted by external force;
5. Amplifier/welding head loosens automatically during operation. Or the booster/welding head is not tightly installed.





1200W High Frequency 35Khz Ultrasonic Replacement Telsonic Konverter for Plastic Welder

1200W Ultrasonic Replacement Telsonic Konverter High Frequency 35Khz For Plastic 01200W Ultrasonic Replacement Telsonic Konverter High Frequency 35Khz For Plastic 1
