15Khz 2600W Ultrasound Piezoelectric Transducer For Standard Plastic Welder
  • name
  • name
  • name
  • name

15Khz 2600W Ultrasound Piezoelectric Transducer For Standard Plastic Welder

MOQ: 1 pcs
Price: Negotation
Standard Packaging: Packed in carton
Delivery Period: 3 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000pcs per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-6015-4BZG
Products Name:
Ultrasonic Welding Transducer
Frequency:
15 Khz
Output Power:
2600w
Joint Bolt:
M20
Ceramic Disc Diameter:
60mm
Ceramic Discs:
Grey
Capacitance:
10-11nf
Application:
Plastic Welding Machine
Highlight:

15Khz Ultrasound Piezoelectric Transducer

,

2600W Ultrasound Piezoelectric Transducer

,

Plastic Welder Piezoelectric Transducer

Product Description

15Khz 2600W Ultrasound Piezoelectric Transducer for Standard Plastic Welder





Description:



Ultrasonic transducer is a device that realizes the conversion of electrical, mechanical or acoustic energy from one form of energy to another form of energy. It is called a transducer, also called an active transducer.The more mature and reliable one is the piezoelectric effect. The device that realizes the conversion of electrical energy and acoustic energy is also called a piezoelectric transducer. The transducer produced by our company adopts imported piezoelectric ceramics and titanium alloy variable rods. The main features are high efficiency: the board has a high quality factor, and it can work at the resonance frequency to obtain extremely high electroacoustic conversion efficiency. The amplitude is large: the structure optimized by the computer has a high vibration speed ratio, a large front cover vibration, and a large power: Under the action of the prestressed rod, the energy of the ceramic sheet is maximized and the heat is good: the transducer has a small impedance, a small amount of heat, a wide temperature range, and high reliability and long life.





Specifications:



Model QR-6015-4BZG
Frequency 15 khz
Output power 2600 watt
Joint bolt M20*1.5
Ceramic disc Diameter 60mm
Qty of ceramic discs 4pcs
Capacitance 10-11nf
Amplitude 15 um
Application welding machine





Parameters:



The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
7015-4BZ M20 X 1.5 70 4 15 12500-14000   17000-19000 2600
6015-4BZ M20 X 1.5 60 4 15 8000-10000 10000-12000 12500-13500 2200
6015-6BZ M20 X 1.5 60 6 15 14000-16000   19500-21000 2600
5015-4BZ M18 X 1.5 50 4 15 12000-13000 13000-14300 15000-17000 1500
4015-4BZ M16 X 1 40 4 15 10000-11000 10500-11500   700
5520-4BZ M18 X 1 55 4 20 10000-11000 10500-11500 14300-20000 2000
5020-6BZ M18 X 1.5 50 6 20 18500-20000   22500-25000 2000
5020-4BZ M18 X 1.5 50 4 20 11000-13000 13000-15000 15000-17000 1500
5020-2BZ M18 X 1.5 50 2 20 6000-6500 6500-7000 8000-9000 800
5020-4CZ M18 X 1.5 50 4 20 11000-12000 13000-14000 14500-16000 1500
5020-4HZ M18 X 1.5 50 4 20     11000-12000 1500
5020-4BL M18 X 1.5 50 4 20 11000-12500     1500
4020-4BZ 1/2-20UNF 40 4 20 9000-10000 9500-11000   900
4020-2BZ 1/2-20UNF 40 2 20   4800-5500   500
3820-4BZ 1/2-20UNF 38 4 20 6500-7500     800
The columnar type NTK TYPE

Item No.



Connect screw



Ceramic dia (mm)



 Qty of Ceramic (pc)

Frequency (khz)



 Capacitance

power (W)


Yellow Grey Black
5025-2BZ M12 X 1 50 2 25 5000-5600   7000-8000 500
3828-2BZ 1/2-20UNF 38 2 28 3800-4300     500
3828-4BZ 1/2-20UNF 38 4 28 7600-8500   10500-12000 800
3028-2BZ 3/8-24UNF 30 2 28 2700-3100 3400-3800   400
3028-4BZ M10*1 30 4 28   6000-7000   700
2528-4FZ M8 X 1 25 4 28 3900-4300     400
2528-2FZ M8 X 1 25 2 28 1950-2200 2200-2500   300
3030-4BZ M10 30 4 30   6200-6900   700
3035-2FZ 3/8-24UNF 30 2 35 2700-3100     500
3035-4BZ M10 X 1 30 4 35 5000-6200     800
2535-2FZ M8 X 1 25 2 35 1900-2200     400
2540-2BZ 3/8-24UNF 25 2 40   2000-2300   500
3040-4BZ M10 30 4 40 5500-6200     1000
3050-4BZ M8 30 4 50 5500-6200     600
1560-2BZ M6 X 0.75 15 2 60     700-800 100

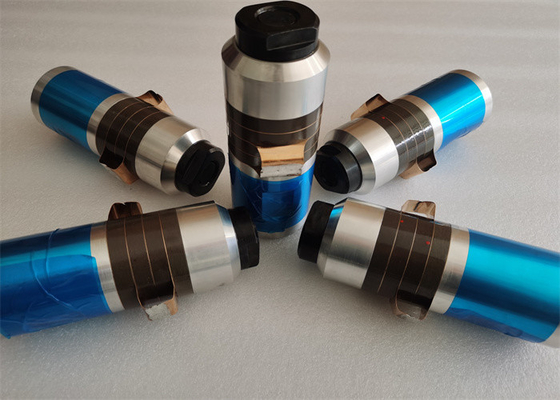

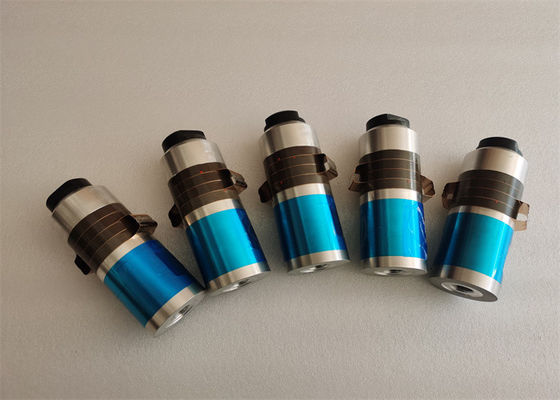

15Khz 2600W Ultrasound Piezoelectric Transducer for Standard Plastic Welder

15Khz 2600W Ultrasound Piezoelectric Transducer For Standard Plastic Welder 015Khz 2600W Ultrasound Piezoelectric Transducer For Standard Plastic Welder 1

Tags:

ultrasonic high power transducer,

piezoelectric ceramic transducer,

high frequency ultrasound transducer
