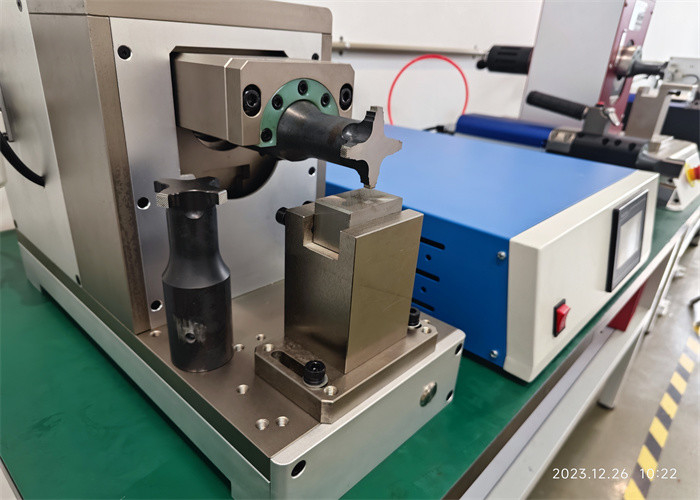

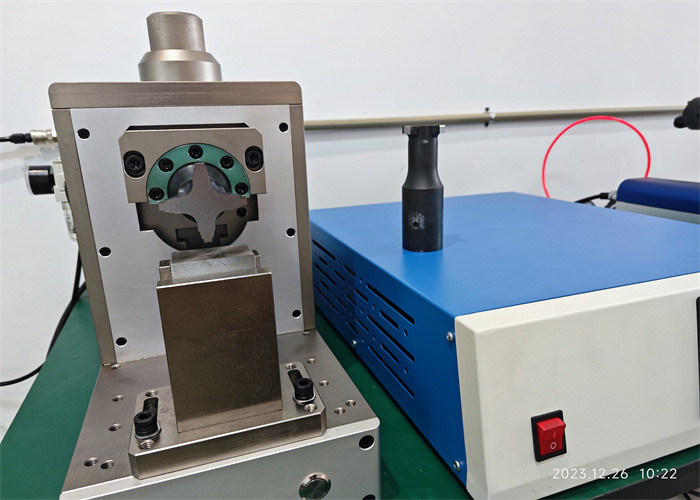

Aluminum Copper Metal Materials Ultrasonic Welding Machine 20Khz

Aluminum Copper Metal Materials Ultrasonic Welding Machine 20Khz

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2030A
Products Name:
Ultrasonic Metal Welding
Frequency:
20KHZ
Power:
3000W
Voltage:
220V

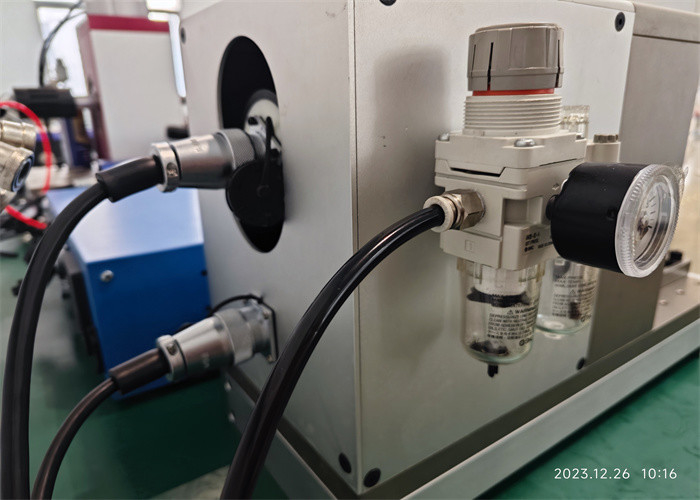

Air Pressure:
0.05-0.9Mpa
Dimension Of Generator:
400*195*98mm
Highlight:

Ultrasonic Aluminum Welding Equipment

,

Ultrasonic Welding Machine 20Khz

,

Metal Materials Ultrasonic Welding Machine

Product Description

Utilizing the Heat Generated by 20Khz Ultrasonic Vibration to Achieve Welding of Aluminum Copper Metal Materials



Principle:


The working principle of ultrasonic metal welding is to use ultrasonic vibration to transfer to the metal joint, generating local frictional heat. The frictional heat between metal joints causes an increase in the surface temperature of the material. When the temperature reaches the melting point of the metal, it will melt and form a weld. The vibration frequency of ultrasonic waves is usually between 20 kHz and 60 kHz, and the appropriate frequency can be selected based on the required welding materials and applications.



Specifications:



Item No QR-D2020A QR-D2030A QR-D2050A QR-D2030Q
Power 2000W 3000W 5000W 3000W
Air Pressure 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa 0.05-0.9MPa
Frequency 20KHZ 20KHZ 20KHZ 20KHZ
Voltage 220V 220V 380V 220V
Weight of horn 55KG 60KG 88KG 60KG
Dimension of Horn 550*280*380mm 550*280*430mm 550*380*660mm 550*280*430mm
Generator Size 540*380*150mm 540*380*150mm 540*380*150mm 400*195*9mm




Advantages:


1. Ultrasonic metal welding can complete the welding process in a relatively short time because the vibration of ultrasonic waves can quickly generate heat.
2. Due to the absence of open flames and arcs during the welding process, there will be no significant oxidation, slag, or splashing.
3. Ultrasonic welding usually does not require the use of filler materials or additives, thus maintaining the purity of the metal material.
4. Due to the small heat affected area during the welding process, it can reduce thermal damage to surrounding materials.

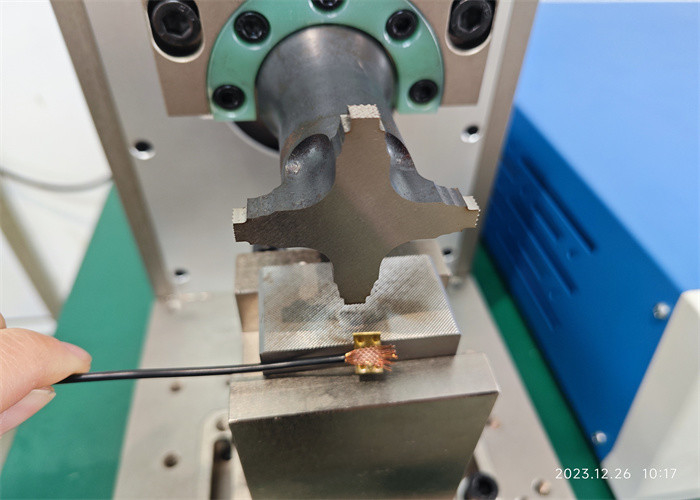

Ultrasonic metal welding is widely used in many fields, including automotive manufacturing, electronic equipment manufacturing, aerospace, and medical equipment. It can be used for welding various metal components, such as battery cells, electronic components, wire connections, etc.
It should be noted that ultrasonic metal welding has high requirements for metal materials and requires the welding material to have a certain degree of plasticity. In addition, the metal surface needs to be cleaned and treated before welding to ensure good welding quality.




Utilizing the Heat Generated by 20Khz Ultrasonic Vibration to Achieve Welding of Aluminum Copper Metal Materials
