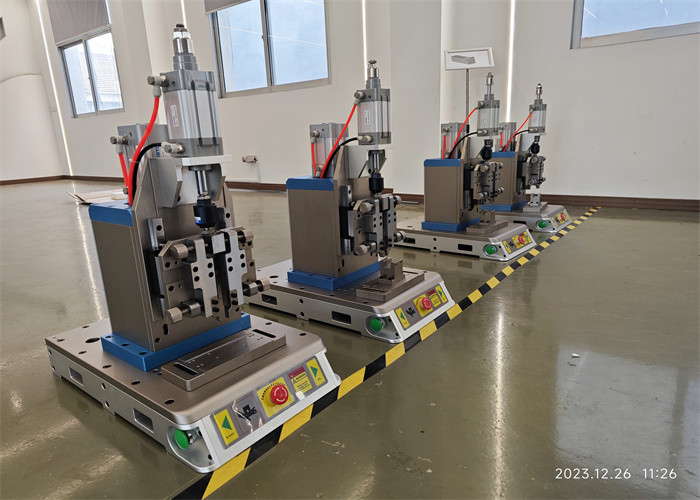

New Energy Power Battery Spot Welding Machine Copper Aluminum Ultrasonic Metal Welder

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed in wooden case
Delivery Period: 15 workdays
Payment Method: T/T, Western Union
Supply Capacity: 2000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
QR-D2050A
Products Name:
Ultrasonic Metal Welding
Frequency:
20Khz
Power:
5000W
Voltage:
220V
Air Pressure:
0.05-0.9Mpa
Application:
Copper, Aluminum, Non-ferrous Metals
Highlight:

Ultrasonic Metal Welder 20Khz

,

New Energy Power Battery Spot Welder

,

Copper Aluminum Spot Welding Machine

Product Description

New Energy Power Battery Spot Welding Machine Copper Aluminum Welding Equipment Manufacturer Ultrasonic Metal Welder





Description:

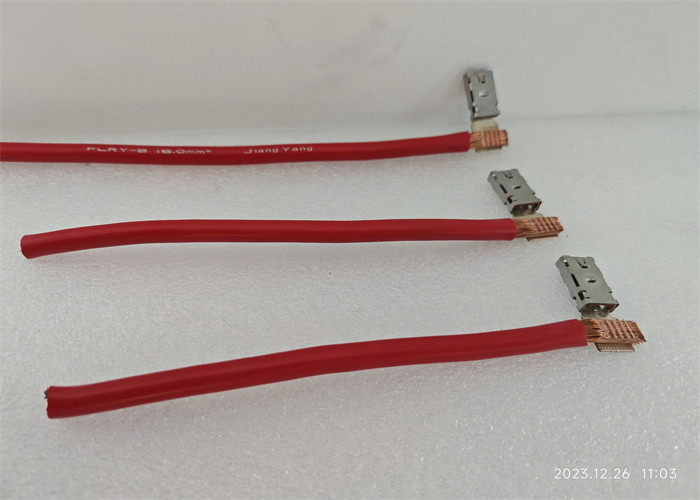

Ultrasonic terminal welding machine is a device that uses ultrasonic vibration to weld wires or cables between terminals. It transfers high-frequency ultrasonic energy to the solder joint, generates frictional heat, and fuses the solder material together, thereby achieving fast, stable, and efficient welding operations.





Specifications:



Item No QR-D2050A
Frequency 20khz
Power 5000w
Action Control Pneumatic Mode
Working Power Supply AC220V/AC380V
Voltage 220V
Working Mode Time or Energy
Generator Size 450mm *350mm *160mm
Application Copper, aluminum, non-ferrous metals





Product features:


1. High strength aviation aluminum alloy material body, high strength, and flexible application space
2. Four sets of heavy-duty guide rail sliders with high repeatability and smooth operation

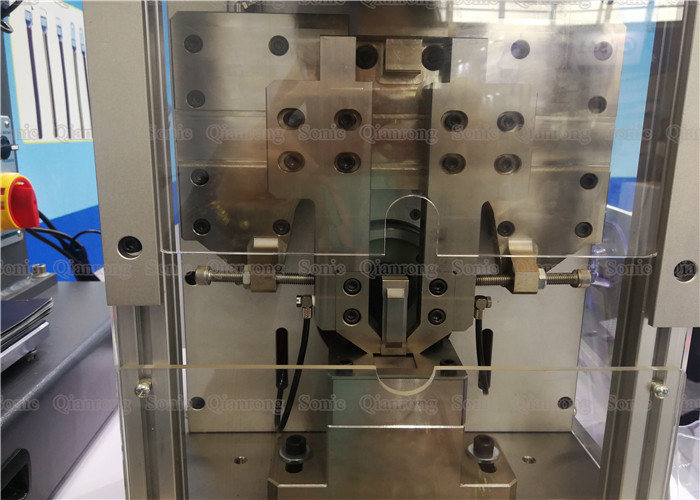

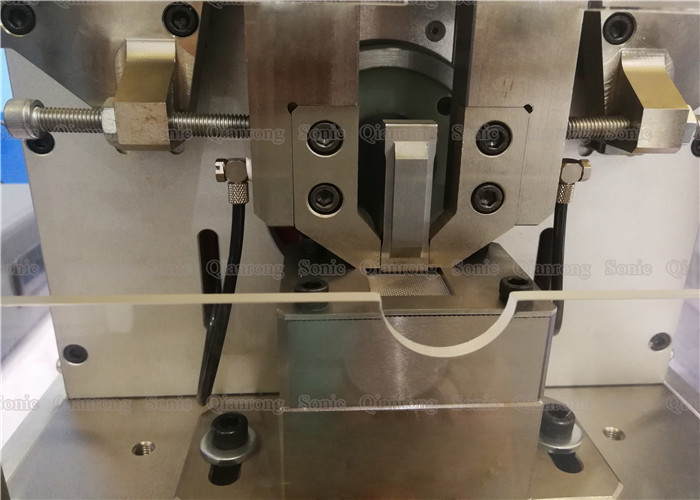

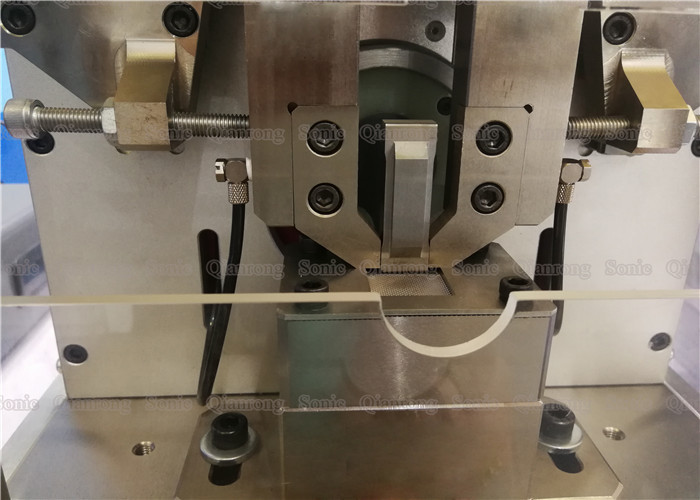

3. The triple unit can rotate 360 degrees inside the body, with a unique clamping structure and quick replacement of welding molds
4. Precision mechanical stroke limit
5. Digital ultrasonic system, ultra high power, automatic frequency tracking, stable and reliable performance
6. Automatic amplitude compensation, stable power output, and reliable welding quality
7. Frequency anomaly protection, current overload protection, voltage over protection, power overload protection, and temperature over protection
8. Independently design each set of welding fixtures according to customer requirements
9. The welding head materials are all made of imported high-speed powder metallurgy steel, which can reach a hardness of 62-64 degrees after heat treatment, and has high wear resistance, hardness, and toughness
10. Each welding head is analyzed using simulation software to ensure the best production plan





New Energy Power Battery Spot Welding Machine Copper Aluminum Welding Equipment Manufacturer Ultrasonic Metal Welder

New Energy Power Battery Spot Welding Machine Copper Aluminum Ultrasonic Metal Welder 0

New Energy Power Battery Spot Welding Machine Copper Aluminum Ultrasonic Metal Welder 1

Tags:

ultrasonic welding machine,

ultrasonic welding process,

ultrasonic metal welding equipment
