| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-6003-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <10μm | Application: | Larger Solid Particles And Higher Solid Content Slurries |
| High Light: | Ultrasonic Atomization Nozzlee,60Khz Convergent Ultrasonic Nozzle,Slurry Ultrasonic Nozzle |
||

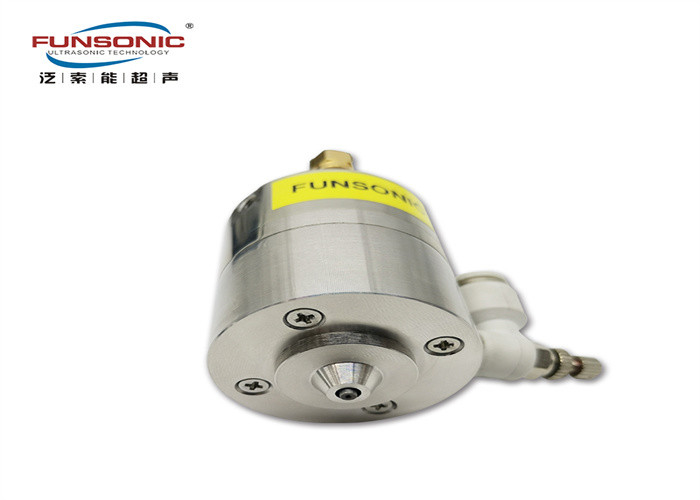

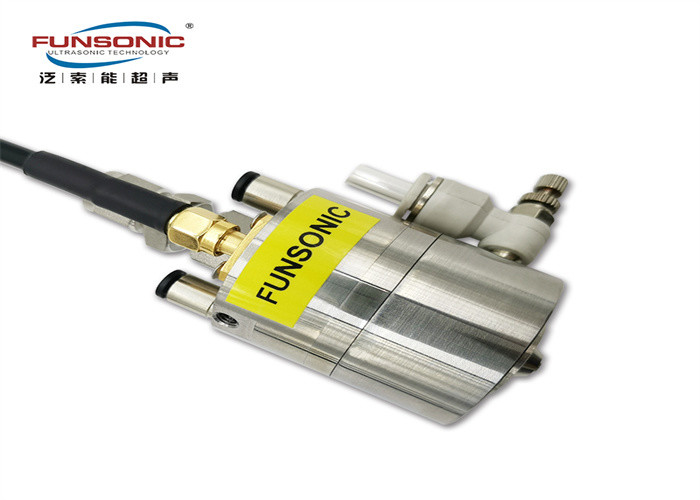

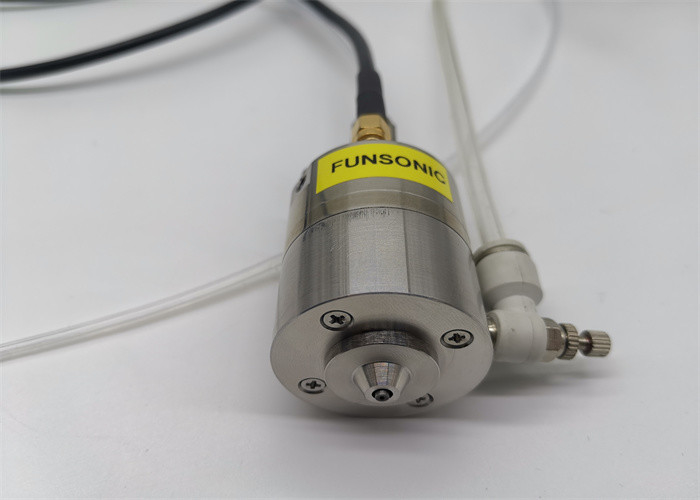

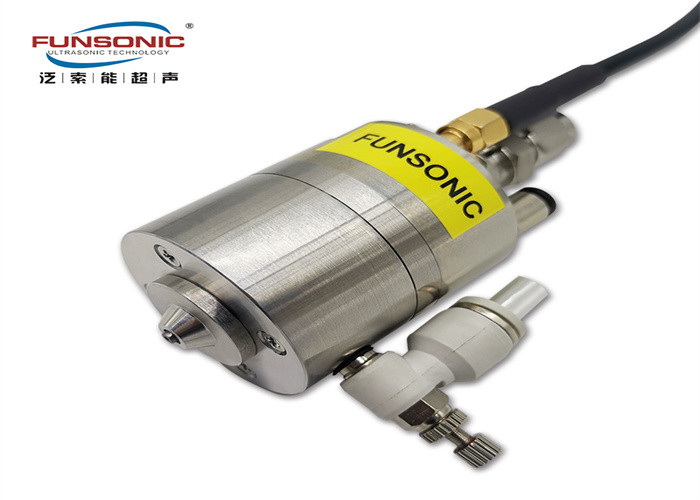

60Khz Convergent Ultrasonic Nozzle with Larger Solid Particles and Higher Solid Content Dispersion in Slurry
Description:
The convergent ultrasonic atomization nozzle is combined with low-pressure air/gas to produce a soft, highly focused small droplet beam. Usually, compressed air/gas of 1 psi is introduced into the diffusion chamber of the air guide hood surrounding the nozzle, generating a uniformly distributed air/gas flow around the nozzle rod. The spray generated by the ultrasonic wave at the tip of the valve stem is immediately entrained in the low-pressure air/airflow. The adjustable focusing mechanism on the wind deflector can fully control the spray width. The spray hood is very narrow and shaped like an hourglass. The width of the shape is controlled by adjusting the distance between the nozzle and the substrate, ranging from 0.07-1.0 inches (1.78-25 mm). Very suitable for small devices such as brackets, balloon conduits, wires, flux for selective welding applications, etc.
Principle:
The ultrasonic atomizer utilizes electronic high-frequency oscillation and the high-frequency resonance of ceramic atomization plates to disperse the structure of liquid water molecules and produce naturally flowing water mist, without the need for heating or adding any chemical reagents. Compared with the heating atomization method, it saves 90% of energy. In addition, a large amount of negative ions will be released during the atomization process, which will react with floating smoke, dust, etc. in the air in an electrostatic manner, causing them to precipitate. At the same time, it can effectively remove harmful substances such as formaldehyde, carbon monoxide, bacteria, etc., purifying the air and reducing the occurrence of diseases.
Parameters:
| Model | FSW-6003-L |
| Name | Aggregation type ultrasonic nozzle |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 2-20 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-30 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Maximum solid content (%) | 15% |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for larger solid particles and higher solid content slurries |
Advantage:
1. High stability: Made of high-performance titanium alloy and stainless steel, it has strong adaptability, corrosion resistance, no pressure, no noise, no nozzle wear and blockage, and high uniformity of atomized particles.
2. Material saving and environmental protection: the impact of spray is very small, which will not cause liquid splashing, thus reducing the waste of raw materials and air pollution caused by back spraying. The material utilization rate of ultrasonic spraying is more than 4 times that of traditional two fluid spraying.
3. High controllability: it can accurately control the atomization flow, low flow continuous spray, and spray shape is easy to control and shape (increase the spray manipulator), which is applicable to the industrial field. By combining, the atomization amount can meet any requirement.
4. Easy maintenance: The liquid is transmitted to the spray head through its own gravity or low-pressure pump and realizes continuous or intermittent atomization. There is no blockage, no wear, no noise, no pressure, and no moving parts. When atomizing, there is no need for cooling water. The energy consumption is small, the equipment is simple, and the failure rate is low. The ultrasonic spray head has the function of cleaning and daily maintenance free.
60Khz Convergent Ultrasonic Nozzle with Larger Solid Particles and Higher Solid Content Dispersion in Slurry
