| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-6004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 60Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-20μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Vacuum Blood Collection Production Line |
| High Light: | Long Nozzle Ultrasonic Spray Coater,Ultrasonic Atomization Spraying Machine,Vacuum Blood Collection Vessel Spraying Machine |
||

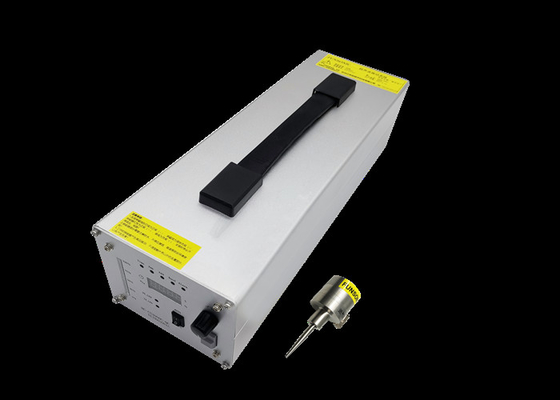

60K High-frequency Vacuum Blood Collection Vessel Spraying with Long Nozzle Ultrasonic Atomization Spraying
Description:
The control type (long mouthed) aims to produce reproducible thin lines, down to 0.5mm. In very small volume applications, low pressure air/gas is used to focus spray into very thin lines. The long mouthed design creates the thinnest and clearest lines among all nozzles. Can be applied for in vitro spraying.
The probe type ultrasonic nozzle is an extended type of ultrasonic atomization nozzle. It adopts ultrasonic atomization nozzle technology and extends the ultrasonic nozzle into a narrow space for spraying by extending the front end design of the nozzle. It is mainly used for probing the inner wall of pipelines for spraying applications.
Typical applications include vacuum blood collection tube spraying, syringe silicone oil spraying, etc. FUNSONIC provides a complete ultrasonic spraying solution for vacuum blood collection and spraying. The controllable ultrasonic nozzle can perform ultrasonic spraying with 5-10 parallel heads, and the distance between the two nozzles is only 25mm. It can be directly used in existing vacuum blood collection production lines. Combined with a dedicated precision metering pump, the anticoagulant is evenly sprayed into the inner wall of the vacuum blood collection vessel, with a production speed of up to 12000 tubes per hour.
Parameters:
| Model | FSW-6004-L |
| Name | 60Khz Long Nozzle Ultrasonic Atomization Spraying |
| Frequency | 60Khz |
| Atomized particle size range(μm) | 15-20 |
| Spray width(mm) | 1-3 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.1 |
| Application | Vacuum blood collection production line |
Advantage:
1. High stability: Made of high-performance titanium alloy and stainless steel, it has strong adaptability, corrosion resistance, no pressure, no noise, no nozzle wear and blockage, and high uniformity of atomized particles.
2. Material saving and environmental protection: the impact of spray is very small, which will not cause liquid splashing, thus reducing the waste of raw materials and air pollution caused by back spraying. The material utilization rate of ultrasonic spraying is more than 4 times that of traditional two fluid spraying.
3. High controllability: it can accurately control the atomization flow, low flow continuous spray, and spray shape is easy to control and shape (increase the spray manipulator), which is applicable to the industrial field. By combining, the atomization amount can meet any requirement.
4. Easy maintenance: The liquid is transmitted to the spray head through its own gravity or low-pressure pump and realizes continuous or intermittent atomization. There is no blockage, no wear, no noise, no pressure, and no moving parts. When atomizing, there is no need for cooling water. The energy consumption is small, the equipment is simple, and the failure rate is low. The ultrasonic spray head has the function of cleaning and daily maintenance free.
