Basic Ultrasonic Precision Spray Coated Machine With Ultrasonc Disperse Liquid Supply System

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FS310

Production Name:

Ultrasonic Precision Spray Coated Machine

Frequency:

60Khz (100K, 110K,120K For Optional)

Power:

1-15w

Automized Particle Size Range:

15-20μm

Spray Flow:

0.01-50ml/min

Liquid Viscosity:

<30cps

Particle Size:

Application:

Suitable For Qualitative Experiments

Highlight:

60Khz Ultrasonic Spray Coating Machine

Basic Ultrasonic Precision Spray Coated Machine

Disperse Liquid Supply System Spray Coater

Product Description

Basic Ultrasonic Precision Spray Coated Machine with Ultrasonc Disperse Liquid Supply System

Description:

FUNSONIC basic ultrasonic spraying machine FS310 is suitable for scientific research, laboratory qualitative test, small batch production and small area film production, and can be used for nano-film coating, solar cell coating, fuel cell coating, glass coating, AR transmission and reflection film coating, hydrophilic coating coating, hydrophobic coating coating, thermal insulation film coating, proton exchange film coating, fuel cell membrane electrode coating, transparent conductive film coating, biosensor coating coating, photoresist coating, circuit board fluxing system, and so on. Photoresist coating, circuit board flux coating, transparent conductive film coating, super hydrophobic coating, antibacterial coating, etc.

Parameters:

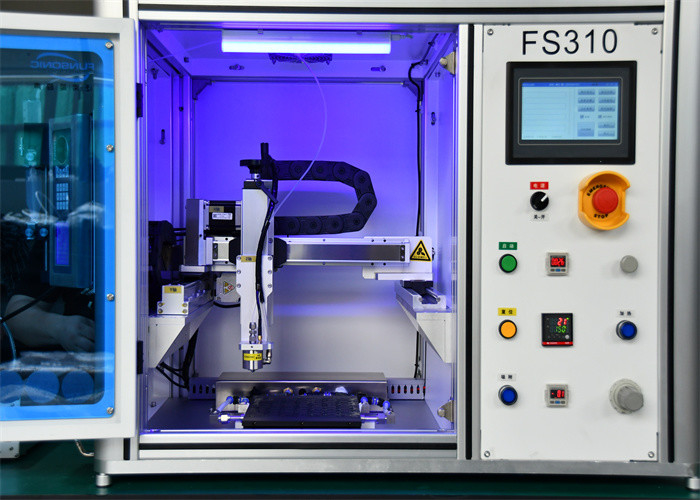

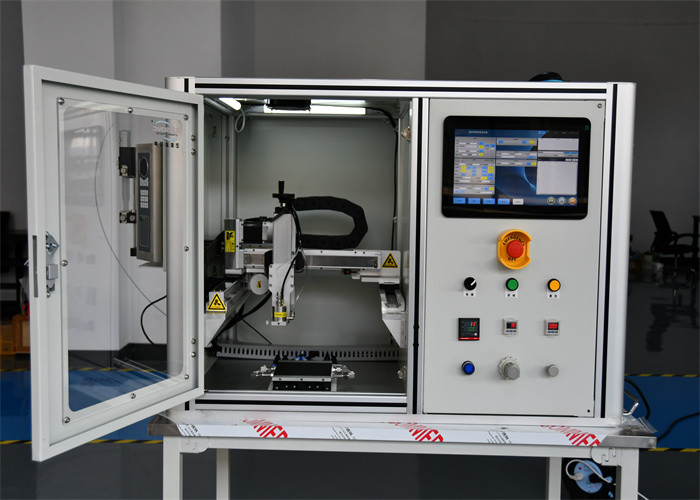

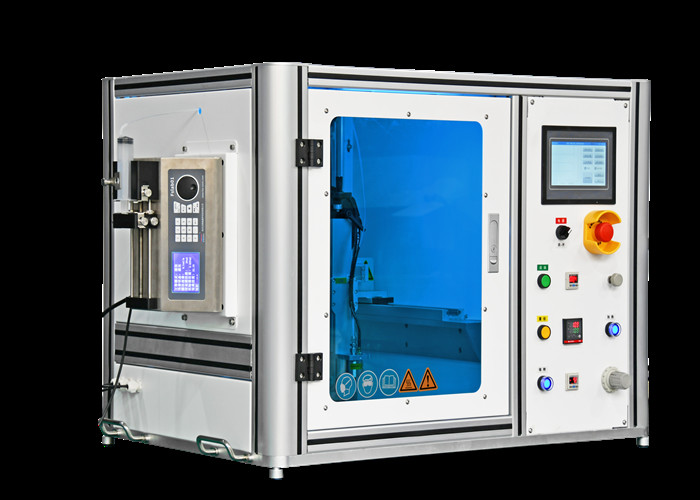

Product Type	Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310
Exercise Mode	X+Y two axis fully automatic, Z-axis manual adjustment
Control Mode	Micro computer card, 7-inch touch screen+buttons
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	200W,10A
Heating and Drying System (Optional)	Aluminum alloy microhole heating plate, maximum 300 ℃
Vacuum Adsorption (Optional)	Vacuum adsorption, equipped with a vacuum generator

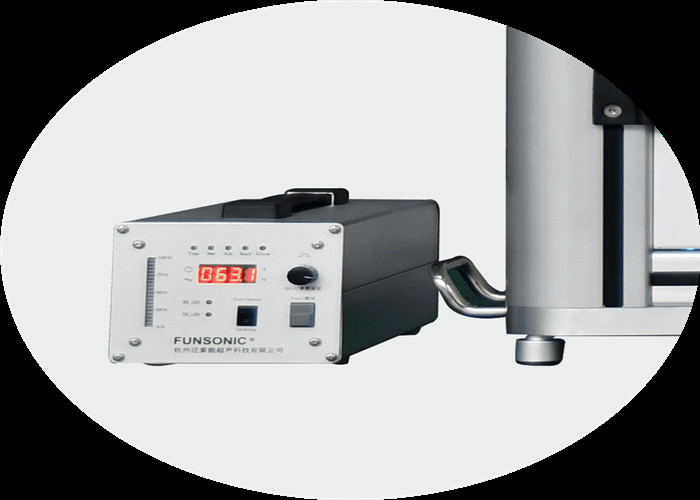

Ultrasonic Generator	Fully CNC generator, fully intelligent frequency tracking, no need for manual adjustment
Air Outlet	Exhaust fan
Net weight	Approximately 120kg
Auxiliary Material	Aluminum profile+sheet metal spray coating
Core Material of Nozzle	Piezoelectric ceramics, titanium alloys

Advantage:

1. It can spray any shape object to form a uniform and efficient film coating with a uniformity of more than 95%.

2. Ultra-low inflow air pressure (≤0.10MPA), which can obviously reduce the waste caused by back spraying and save cost.

3. Solution conversion rate ≧95%, the utilization rate is 4 times than the traditional two-fluid spraying.

4. Ultrasonic spray nozzles are self-cleaning, non-clogging and corrosion resistant.

Basic Ultrasonic Precision Spray Coated Machine with Ultrasonc Disperse Liquid Supply System

Basic Ultrasonic Precision Spray Coated Machine With Ultrasonc Disperse Liquid Supply System 0

Basic Ultrasonic Precision Spray Coated Machine With Ultrasonc Disperse Liquid Supply System 1
