| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FS620 |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by Wooden Case |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spray Coating Machine | Frequency: | 20-200khz For Selection |
|---|---|---|---|
| Max Power: | 100w | Continuous Spraying Volume Max: | 20-1200ml/h/pcs，Scalable |
| Effective Spraying Width: | 2-260mm/pcs，Scalable | Spray Uniformity: | ≥95% |
| Solution Viscosity: | ≤30cps | Input Voltage: | 220V±10%/50-60Hz |
| Highlight: | Fuel Cell CoatingUltrasonic Spray Coating Machine,Ultrasonic Precision Spraying Coated Machine,Desktop Ultrasonic Spraying Coated Machine |
||

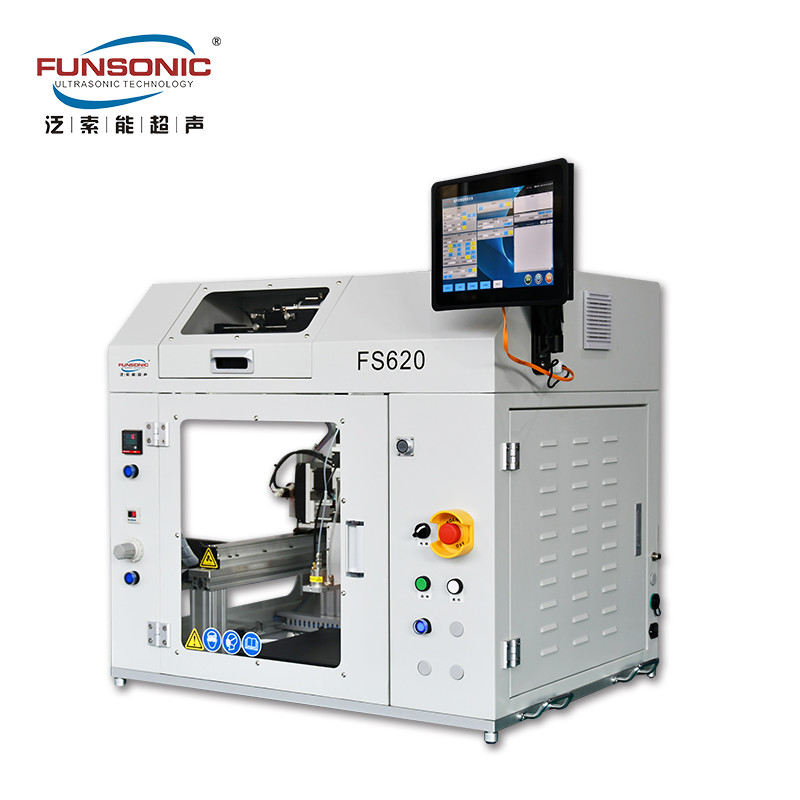

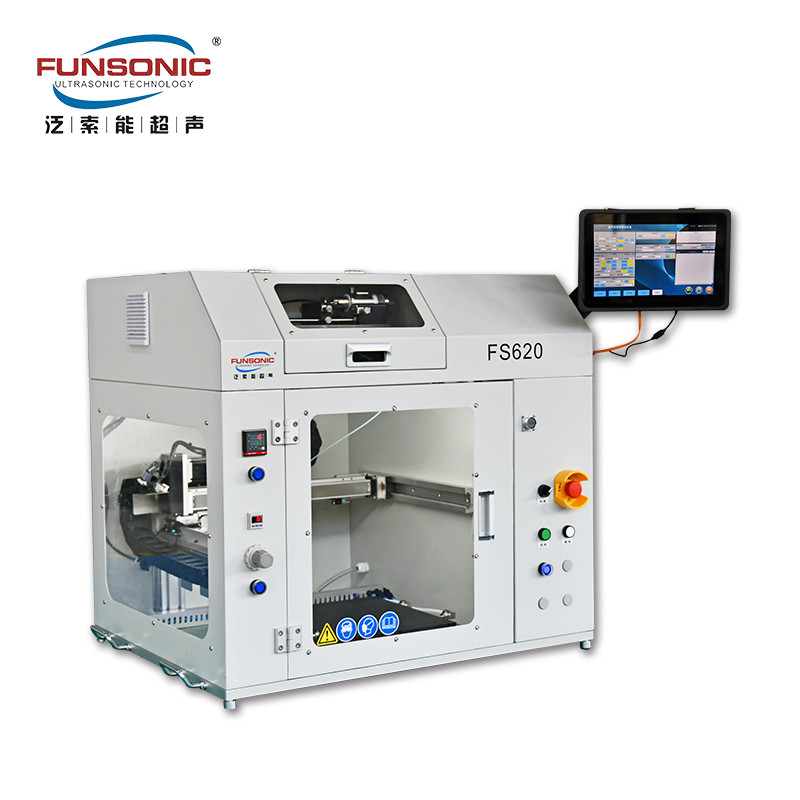

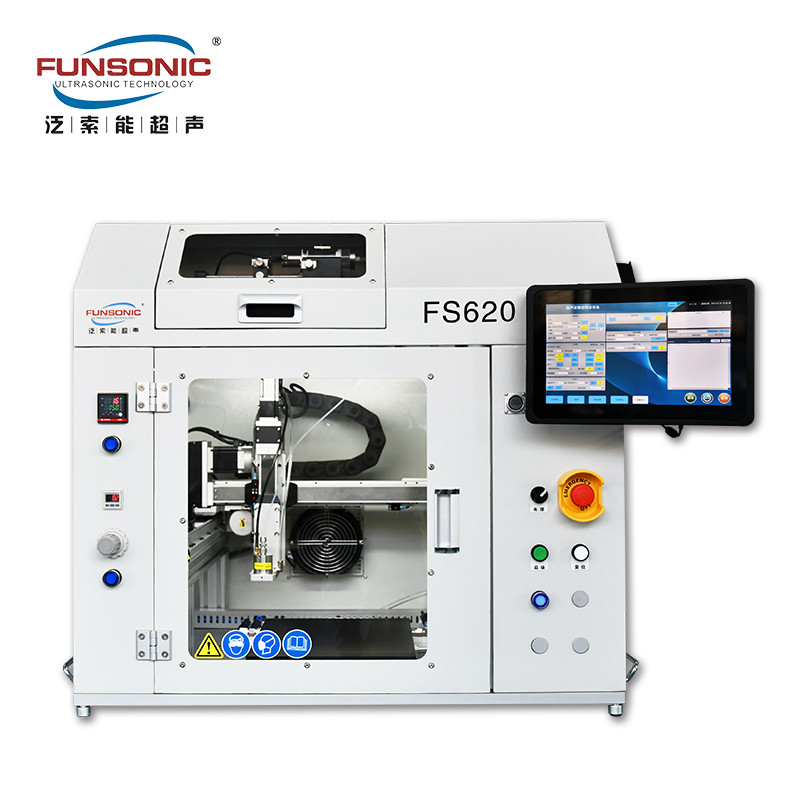

Intelligent Ultrasonic Precision Spraying Coated Machine Desktop for Fuel Cell Coating
Description:
The FUNSONIC intelligent ultrasonic precision spraying machine FS620 is mainly used for qualitative testing in scientific research laboratories, small and medium-sized batch production, and medium area spraying.
The entire equipment has a simple and elegant structure, with complete functions, mainly including the XYZ axis precision motion module, equipped with FUNSONIC's independently developed ultrasonic spraying special control system, which is WYSIWYG. It realizes a comprehensive trajectory editing system with matching functions, and can spray any two-dimensional plane shape, such as rectangles, circles, triangles, or curves. Optional to be equipped with any ultrasonic nozzle from FUNSONIC, as well as a precision injection pump and digital gas carrier system. It can also be equipped with functions such as ultrasonic dispersion supply system, vacuum adsorption heating substrate, etc.
Parameters:
| Product Type |
Intelligent Ultrasonic Precision Coating Machine desktop Type FS620 |
| Spray Nozzle Operating Frequency | 20-200KHz (Normally use 60100110120K) |
| Nozzle Power | 1-15W |
| Continuous Spraying Volume Max | 0.01-50ml/min |
| Effective Spraying Width | 2-100mm |
| Spray Uniformity | ≥95% |
| Solution Conversion Rate | ≥95% |
| Dry Film Thickness | 20nm-100μm |
| Solution Viscosity | ≤30cps |
| Temperature Range | 1-60℃ |
| Atomized Particles (Median Value) | 10-45μm (distilled water), determined by the frequency of the nozzle |
| Diversion Pressure Max | ≤0.15MPA |
| Input Voltage | 220V±10%/50-60Hz |
| Exercise Mode | XYZ three-axis, independently programmable |
| Control Mode | FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen |
| Control Content | Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems |
| Liquid Supply Method | Precision injection pump |
| Ultrasonic Dispersion System (Optional) | 20ml or 50ml, 40K, biological grade sampler |
| Rated Power of Ultrasonic Dispersion System | 100W |

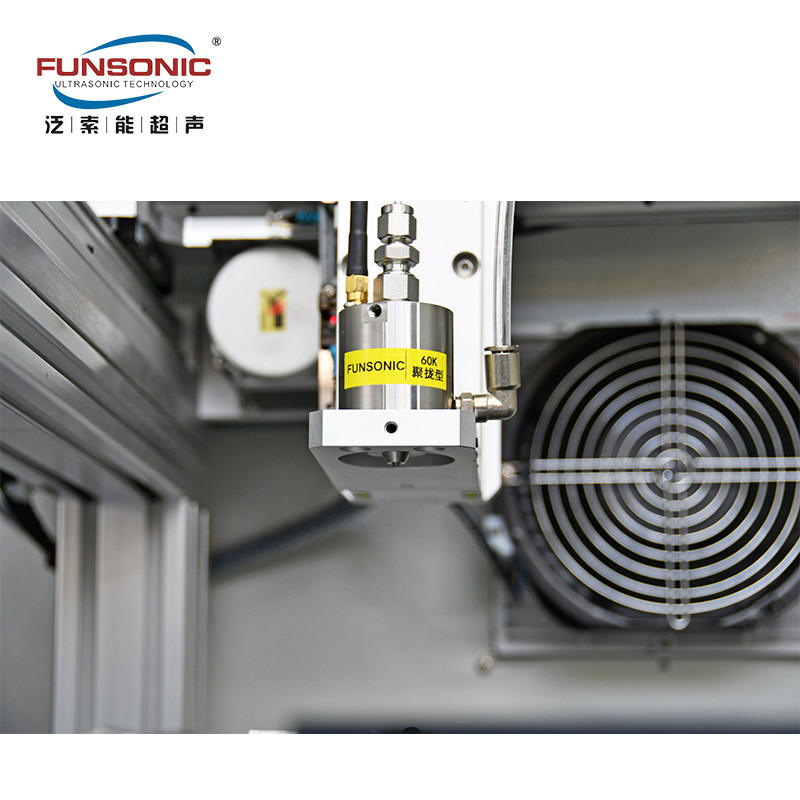

The difference between ultrasonic atomization nozzles and traditional nozzles:
Unlike the traditional spray head, which relies on pressure and high-speed movement to crush the liquid into small particles, the ultrasonic nozzle uses lower ultrasonic vibration energy to atomize the liquid. The liquid can be delivered to the spray head through its own gravity or low-pressure liquid pump to achieve continuous or intermittent atomization. The amount of liquid atomization is only determined by the amount of liquid conveyed, within the limits.
Traditional two fluid nozzle:
1. Utilize the kinetic energy of two fluids, gas and liquid, for atomization
2. The impact force of spray is large, which will cause splash and waste of raw materials
3. Poor uniformity of atomized particles
4. The size of atomized particles is determined by the nozzle diameter
When the nozzle is very thin, it is easy to block the nozzle
6. Unable to accurately control the spray flow, unable to continue spray at a low flow
Advantages of ultrasonic atomization spray:
1. Use high-frequency ultrasonic oscillation to atomize liquid
2. The impact force of spray is very small, which will not cause the splash of raw materials and waste of raw materials
3. The uniformity of atomized particles is very high
4. The size of atomized particles is determined by the ultrasonic frequency and is independent of the nozzle diameter
5. The nozzle diameter is adjustable in thickness and maintains ultrasonic oscillation, making it difficult to block the nozzle
6. Precise flow control, continuous spray at extremely low flow
