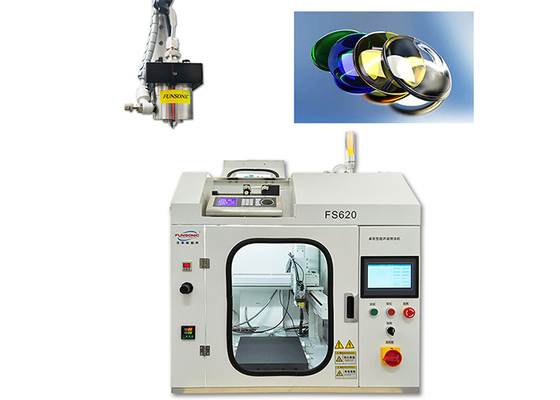

High Precision Ultrasonic Lens Coating Nebulizer System
  • name
  • name
  • name
  • name

High Precision Ultrasonic Lens Coating Nebulizer System

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T,Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620V
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
20-200khz
Max Power:
1-15W
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-100mm/pcs，Scalable
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

ultrasonic spray coating machine with warranty

,

high precision ultrasonic lens coating

,

ultrasonic nebulizer system for coating

Product Description

High Precision Ultrasonic Lens Coating Nebulizer System



Description:


The high-precision ultrasonic lens coating device is an perfect desire for coating purposeful and aesthetic lenses onto glasses or different lenses. The machine is designed to observe anti fingerprint, challenging coating or scratch resistant coating (SRC), anti glare, anti fog, anti fouling, UV blockading agents, coloring (electrochromic), and photoresist to glasses (including bifocal lenses) and shades with excessive accuracy, repeatability, and uniformity. The ultrasonic coating machine is recognised for its specific skinny movie coating and minimal highly-priced answer overspray, changing regular coating strategies such as impregnation and spin coating to minimize waste and reduce overspray.



Parameters:


Product Type Intelligent Ultrasonic Precision Coating Machine desktop Type FS620V
Spray Nozzle Operating Frequency 20-200Khz
Nozzle Power 1-15W
Continuous Spraying Volume Max 0.5-10ml/min
Effective Spraying Width 2-100mm
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Dry Film Thickness 20nm-100μm
Solution Viscosity ≤30cps
Temperature Range 1-60℃
Atomized Particles (Median Value) 15-40μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.05MPA
Input Voltage 220V±10%/50-60Hz
Exercise Mode XYZ three-axis, independently programmable
Control Mode FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump
Ultrasonic Dispersion System (Optional) 20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 100W




Advantages :


1. Ultrasonic nozzles are corrosion-resistant and not easily clogged
2. The diameter range of spray is 2-100mm
3. Suitable for all fluxes
4. High control accuracy, point spraying, and fast startup speed
5. Stable equipment and low maintenance costs
6. Coating utilization rate>95%
7. Low diversion pressure and no sputtering
8. Multiple series nozzles can be configured
9. Spraying irregular workpieces


Application:


1. Contact lenses
2. Optical lenses
3. Microscope lens
4. Telescope lens
5. Binocular lenses
6. Camera lens
7. Protective glasses (goggles, laboratory glasses)
8. Sports equipment (motorcycle helmet mask, ski goggles, swimming goggles)
9. Photoresist on the oscilloscope lens


High Precision Ultrasonic Lens Coating Nebulizer System 0


High Precision Ultrasonic Lens Coating Nebulizer System 1
   High Precision Ultrasonic Lens Coating Nebulizer System 2



High Precision Ultrasonic Lens Coating Nebulizer System

High Precision Ultrasonic Lens Coating Nebulizer System 3

High Precision Ultrasonic Lens Coating Nebulizer System 4
