20Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction
  • name
  • name
  • name
  • name

20Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSD-2030-GI
Name:
20Khz Industrial Liquid Ultrasonic Processing
Frequency:
20Khz
Power:
3000w
Input Voltage:
220V±10%，50/60Hz
Emitter Materials:
Titanium Alloy
Diameters Of Emitter Tip:
Φ38mm, Φ50mm
Durable Temperature:
0-80℃
Application:
Ultrasonic Extraction, Dispersion, Emulsification, Defoaming, Crushing, Stirring
Highlight:

Defoaming Ultrasonic Sonochemistry Equipment

,

Ultrasonic Acoustic Chemistry Equipment

,

20Khz Ultrasonic Degassing Equipment

Product Description

20Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction





Description:



Ultrasonic defoaming sonochemistry refers to the process of using the power of ultrasound to promote the formation and disintegration of bubbles, as well as the application of ultrasound in sonochemical reactions. When bubbles exist in a liquid, the mechanical action of ultrasound can affect the behavior of bubbles, including promoting their formation and disintegration, thereby generating a series of effects in sonochemical reactions.

Ultrasonic defoaming sonochemistry has a wide range of applications in chemical synthesis, catalytic reactions, dissolution, and extraction. By selecting ultrasonic parameters reasonably, such as frequency, power, and processing time, the best defoaming and sonochemical effects can be achieved.





Parameters:



Model FSD-2030-GI
Name

20Khz Industrial Liquid Ultrasonic Processing


Frequency 20Khz
Power 3000w
Input Voltage 220V±10%,50/60Hz
Emitter Materials Titanium Alloy
Diameters of Emitter Tip Φ38mm, Φ50mm
Durable Temperature 0-80℃
Application Ultrasonic extraction, dispersion, emulsification, defoaming, crushing, stirring





The process of ultrasonic defoaming is as follows:



1. Bubble formation: The vibration of ultrasound can cause local pressure changes in the liquid. When the pressure drops below the saturated vapor pressure, the gas in the liquid will form bubbles. The vibration effect of ultrasound can promote the escape of gas from the liquid and form bubbles.

2. Collapse of bubbles: The high-intensity vibration of ultrasound can generate intense eddy currents and local flows, which exert shear forces on bubbles and promote their collapse. When a bubble is subjected to ultrasound, the liquid inside the bubble undergoes violent eddy currents and turbulent motion, leading to the rupture and disintegration of the bubble.

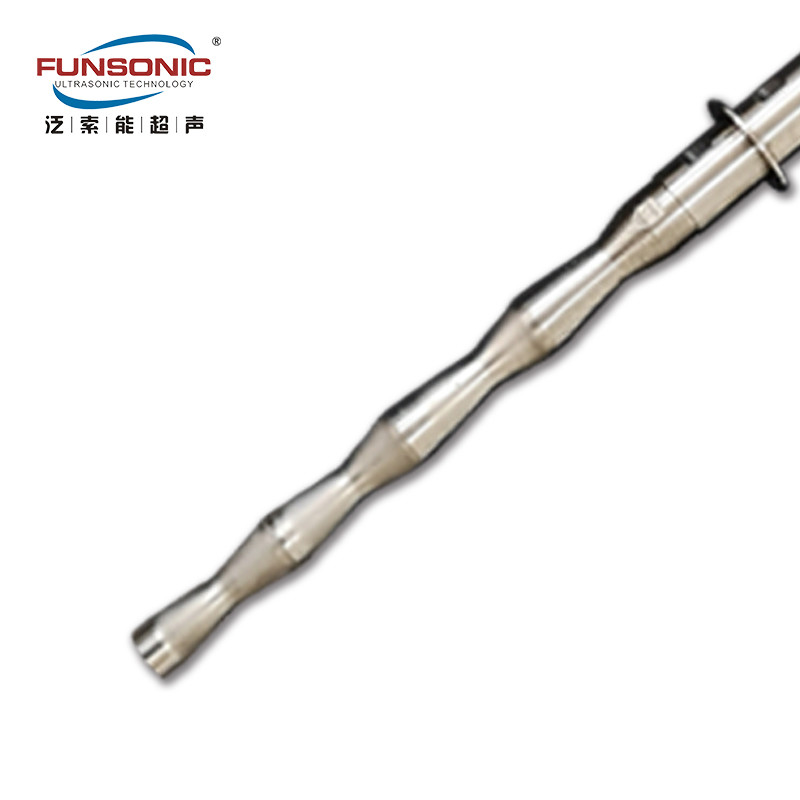

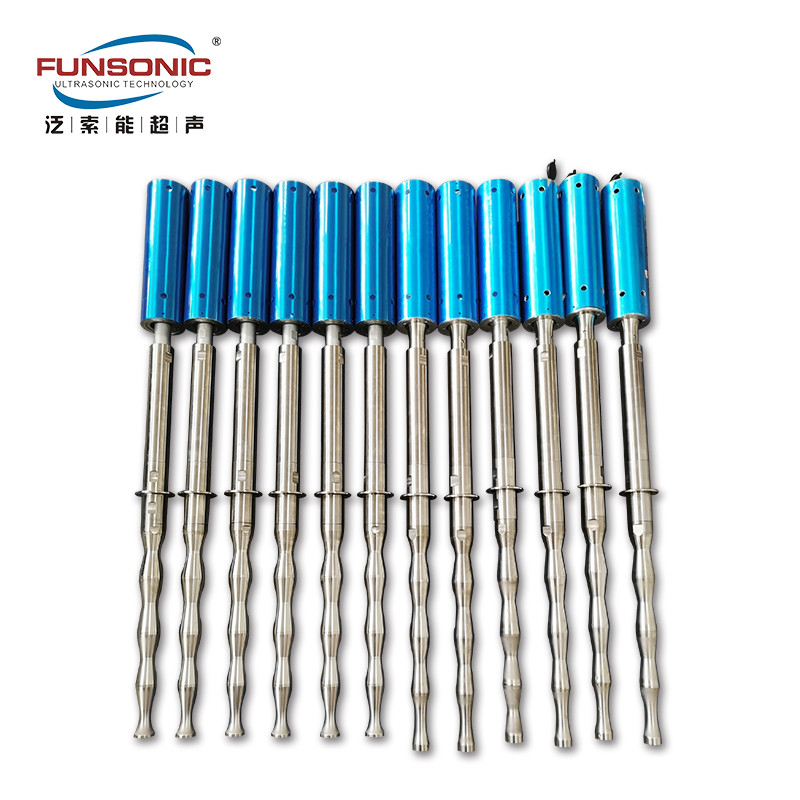

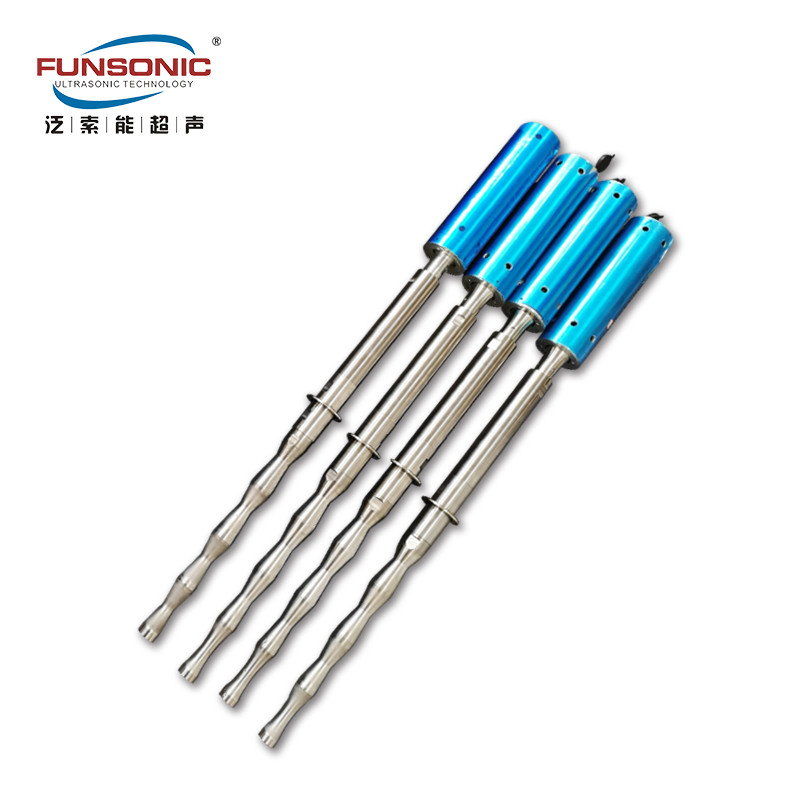

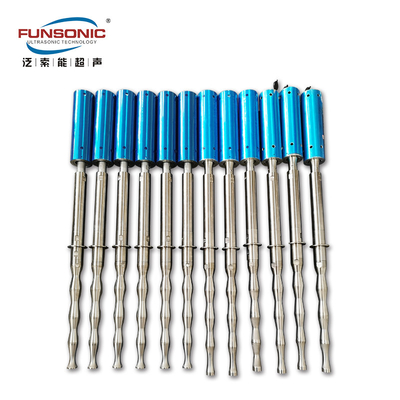

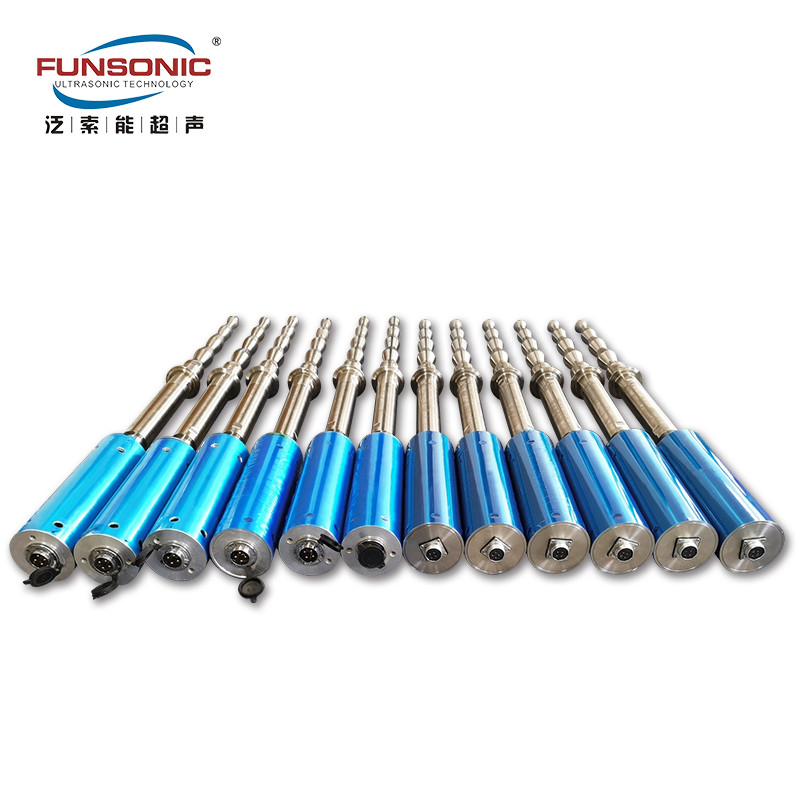

20Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction



20Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction 020Khz Ultrasonic Defoaming Degassing Acoustic Chemistry Equipment Sonochemical Reaction 1
