60Khz Ultrasonic Metal Alloy Atomization Metal Powder Making Device

60Khz Ultrasonic Metal Alloy Atomization Metal Powder Making Device

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Place of Origin
China
Brand Name
FUNSONIC
Certification
CE
Model Number
FSM-6002-R
Name:
60Khz Ultrasonic Metal Atomizer
Frequency:
60Khz
Power:
200w
Input Voltage:
220V±10%,50/60Hz
Temperature Range:
150-350℃
Application:
Atomize Melted Metal Into Powder
Highlight:

60Khz Ultrasonic Metal Atomizer

,

Metal Alloy Ultrasonic Atomiser

,

Ultrasonic Atomization Metal Powder Making Device

Product Description

China Ultrasonic Metal Alloy Atomization Production Manufactory Metal Powder Making Device





Description:



Ultrasonic atomization technology of metal powder is a new type of metal powder preparation technology that is energy-saving and environmentally friendly. The outstanding advantage of ultrasonic atomization method is the simple structure and small size of the equipment, which can even have no moving parts. High reliability, sealing and maintenance are very easy, especially suitable in research units, process trials, small-scale multi-batch fine production field, while high-power ultrasonic can also have a large output.



When the molten metal liquid passes through the atomization surface, it is broken into uniform micron sized droplets of fine mist, achieving atomization. After atomization, micrometer sized liquid droplets are thrown out of the atomization surface under the action of rotational centrifugal force and standing waves. They quickly solidify when cooled by air, forming micrometer sized metal solid particles. Collecting these particles is the required metal powder to be prepared. Moreover, during the ultrasonic atomization process, the size of micrometer level liquid droplets and fine mist can be precisely controlled, thereby accurately controlling the size of metal powder.





Parameters:



Model FSM-6002-R
Name

60Khz Ultrasonic Metal Atomizer



Frequency 60Khz
Power 200w
Input Voltage 220V±10%,50/60Hz
Tool Head Materials Titanium Alloy
Temperature Range 150-350℃
Application atomize melted metal into powder





Application:



Ultrasonic metal powder production uses ultrasonic waves to atomize melted metal into powder. The solder powder (such as indium powder) prepared by ultrasonic atomization process has good sphericity, narrow particle size distribution, and low oxygen content. The method of ultrasonic atomization can be used to produce metal powder. When the ultrasonic power generator excites the ultrasonic transducer, the ultrasonic tool head that serves as the transducer load vibrates, and the melted metal solution is atomized through ultrasonic vibration. Then, the droplets of metal particles cool and solidify in the air before falling into the powder collection cylinder and collecting to form metal powder. The atomization of various molten metals is commonly used to prepare metal powder or solder powder. Preparation of metal powders such as tin, indium, bismuth, etc.

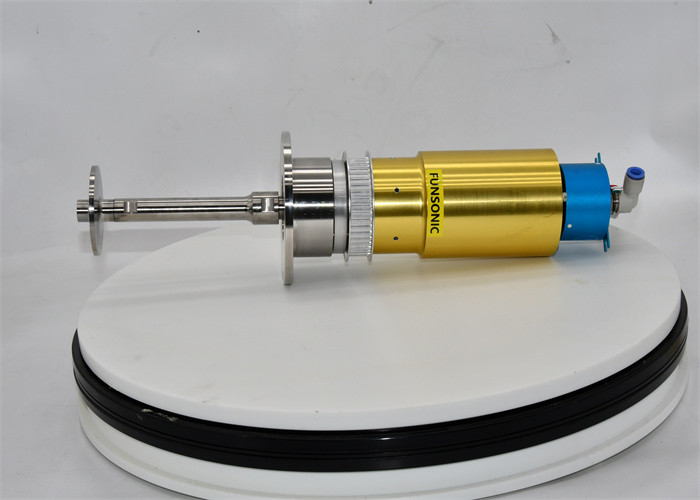

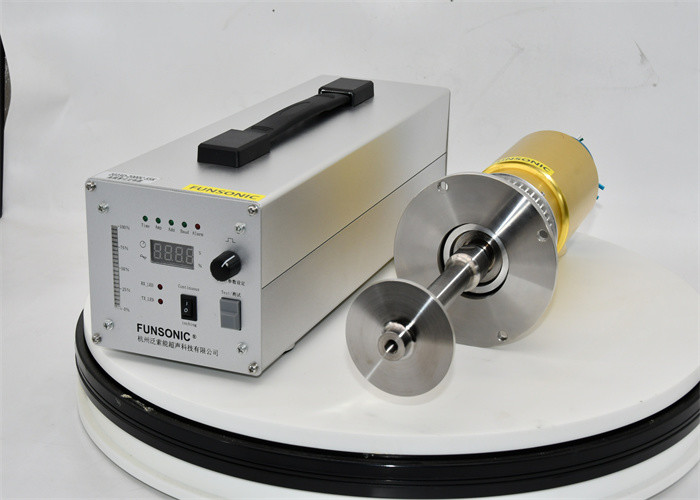

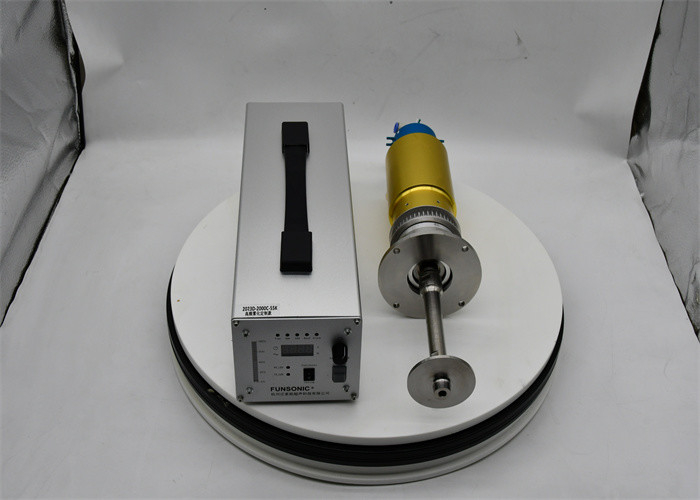

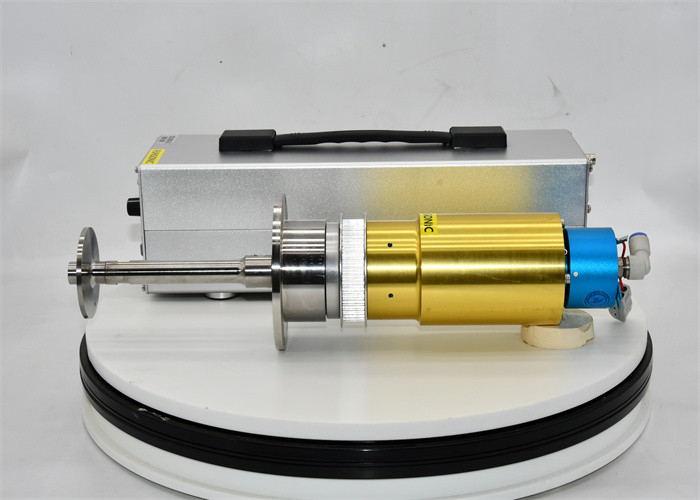

China Ultrasonic Metal Alloy Atomization Production Manufactory Metal Powder Making Device



60Khz Ultrasonic Metal Alloy Atomization Metal Powder Making Device 0

60Khz Ultrasonic Metal Alloy Atomization Metal Powder Making Device 1
