High Power 1500w Ultrasonic Mechanical Impact Testing Machine
  • name
  • name
  • name
  • name

High Power 1500w Ultrasonic Mechanical Impact Testing Machine

MOQ: 1 unit
Price: Negotation
Standard Packaging: Packed by Wooden Case
Delivery Period: 5-8 work days
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QRsonic
Certification
CE
Model Number
FSA-2010-HC
Frequency:
20khz
Power:
1500w
Output Amplitude:
30-100μm
Processing Speed:
≥500mm/min
Input Voltage:
220V±10%,50/60Hz, 4A
Size Of Impact Head:
Φ3Φ5Φ8 Or Customized
Highlight:

Mechanical Impact Testing Machine

,

1500w Mechanical Impact Testing Machine

,

Ultrasonic Mechanical Impact Testing Machine

Product Description

High Power 1500w Ultrasonic Mechanical Impact Testing Machine​





Description:



The high-power 1500W ultrasonic mechanical impact testing machine is an aging method that can completely replace heat treatment to eliminate welding residual stress. The high-power 1500W ultrasonic mechanical impact testing machine can eliminate welding stress on workpieces by up to 80% -100% and generate ideal compressive stress, making it the most ideal equipment for eliminating welding metal stress.
The high-power 1500W ultrasonic mechanical impact testing machine has a unique stable frequency and constant amplitude control circuit, ensuring safe and reliable system operation. The host power can be adjusted within a wide range, and can be automatically adjusted according to on-site needs. It has better stress relief effects for on-site processing of large structural components' welds, ultra high and low weld processing, and welding repair welds.







Parameters:



Item No FSA-2010-HC
Frequency 20Khz
Max Power 1500w
Output Amplitude 30-100μm
Voltage AC 220V±10%, 50HZ
Conversion Efficiency 90%
Processing Speed ≥500mm/min
Materials of Impact Head Specially tungsten steel
Size of Impact Head Φ3Φ5Φ8 or Customized
Common Impact Heads four pins, single pin, or customized





Characteristic :


1. High power, good impact effect
2. High reliability and long service life
3. Lightweight, portable, and very easy to operate
4. Well designed and widely applicable
5. Significant energy saving and cost reduction

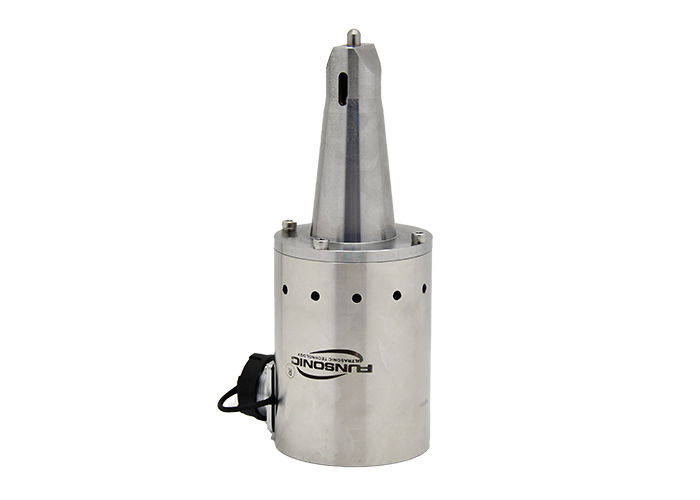

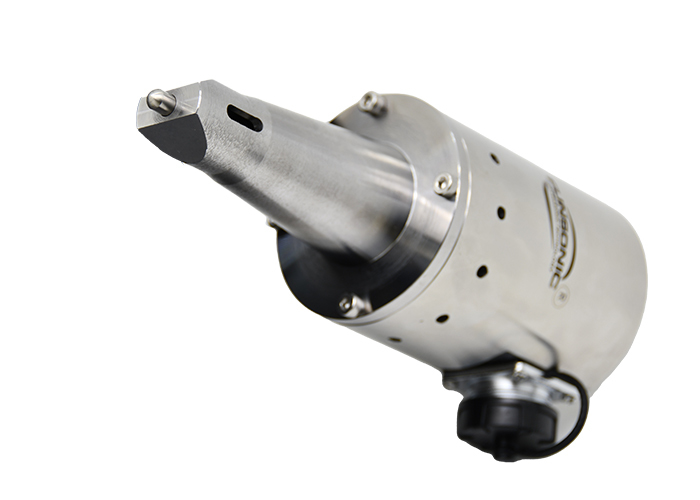

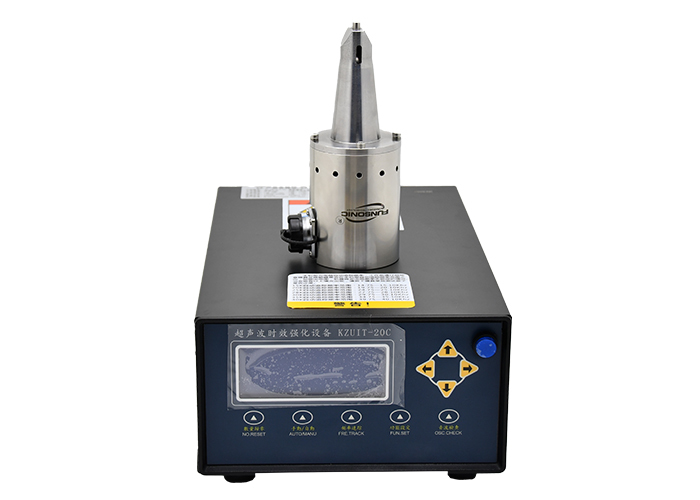

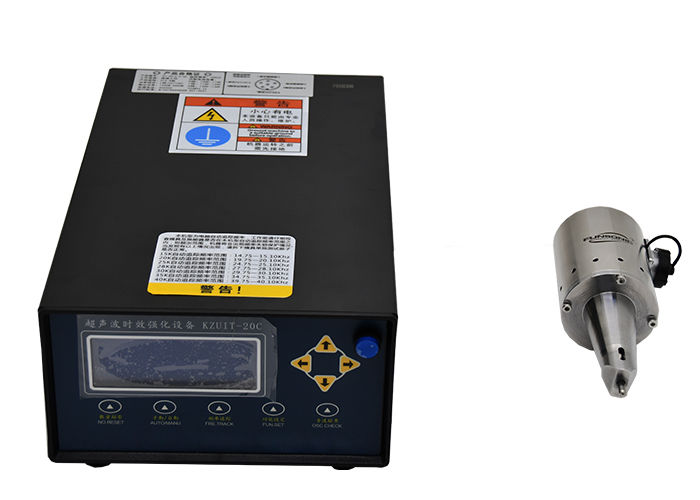

High Power 1500w Ultrasonic Mechanical Impact Testing Machine



High Power 1500w Ultrasonic Mechanical Impact Testing Machine 0High Power 1500w Ultrasonic Mechanical Impact Testing Machine 1
