High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment With Focusmist Spray Nozzle

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FS310

Production Name:

Ultrasonic Precision Spraying Machine

Frequency:

60Khz

Max Power:

Automized Particle Size Range:

15-40μm

Spray Flow:

0.5-10ml/min

Liquid Viscosity:

<30cps

Particle Size:

Application:

Suitable For Qualitative Experiments

Highlight:

60Khz Ultrasound Precision Spraying Coated Equipment

Ultrasound Spraying Coated Equipment

High Frequency ultrasonic spray coating machine

Product Description

High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment with Focusmist Spray Nozzle

Description:

FUNSONIC basic ultrasonic spraying machine FS310 is mainly developed by enterprises, universities, and research institutes that are in contact with ultrasonic spraying equipment for the first time.

The entire equipment has a simple and elegant structure, with complete functions, mainly including XY dual axis precision motion module, combined with a comprehensive trajectory editing system, to achieve the spraying function of any two-dimensional plane graphics, such as rectangles, circles, triangles, or curves. Optional FUNSONIC ultrasonic nozzle, equipped with precision injection pump, digital carrier gas system, optional ultrasonic dispersion liquid supply system, vacuum adsorption heating substrate and other functions. The entire set of equipment can be customized in size and placed in a fume hood for use as needed.

Parameters:

Product Type	Ultrasonic Precision Spray Coating Machine Laboratory desktop Type FS310
Spray Nozzle Operating Frequency	20-200KHz
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.01-50ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.10MPA
Input Voltage	220V±10%/50-60Hz

Advantages of Ultrasonic Atomization Spray:

1. Use high-frequency ultrasonic oscillation to atomize liquid

2. The impact force of spray is very small, which will not cause the splash of raw materials and waste of raw materials

3. The uniformity of atomized particles is very high

4. The size of atomized particles is determined by the ultrasonic frequency and is independent of the nozzle diameter

5. The nozzle diameter is adjustable in thickness and maintains ultrasonic oscillation, making it difficult to block the nozzle

6. Precise flow control, continuous spray at extremely low flow

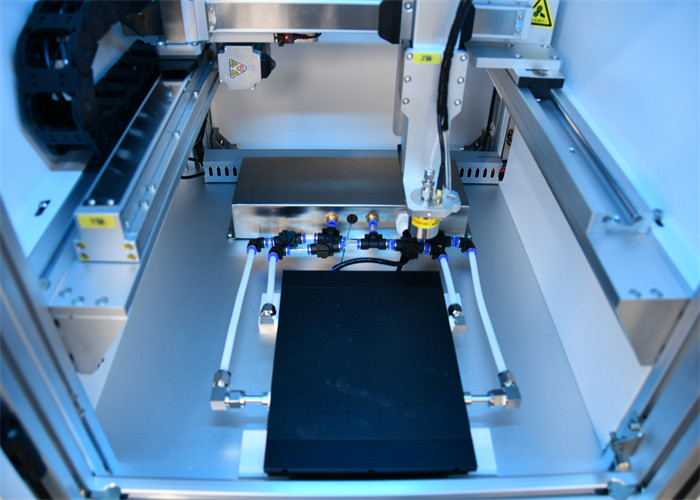

High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment With Focusmist Spray Nozzle 0

High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment with Focusmist Spray Nozzle

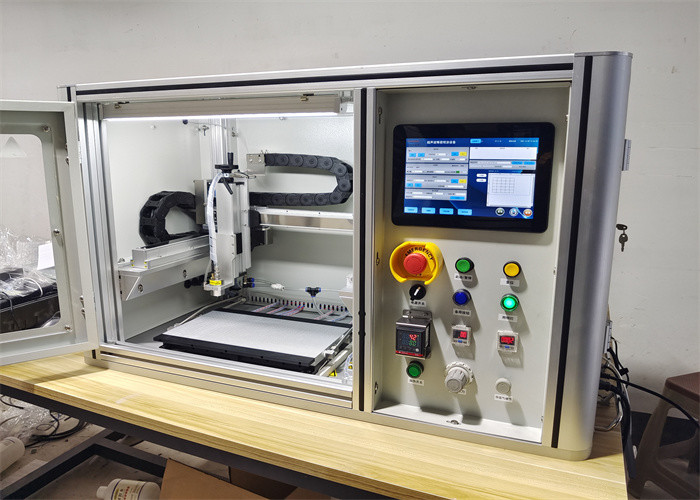

High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment With Focusmist Spray Nozzle 1

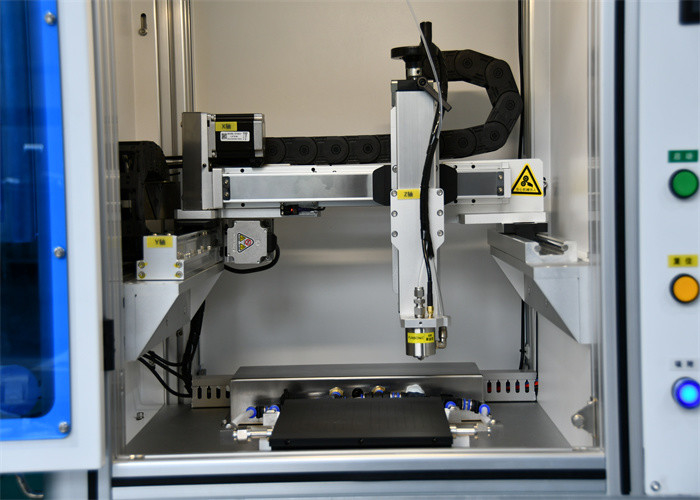

High Frequency 60Khz Ultrasound Precision Spraying Coated Equipment With Focusmist Spray Nozzle 2

Tags:

Anti Restenosis Polymers Medical Spraying Machine,

Ultrasonic Probe Type Nozzle 40Khz,

Ultrasonic Wide Open Mist Fan Shaped Area Spraying Nozzle System
