Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
20-200khz For Optional
Max Power:
50w
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-260mm/pcs，Scalable
Spray Uniformity:
<5%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

Qualitative Testing Ultrasonic Coating Machine

,

Scientific Research Laboratory Ultrasonic Coating Machine

,

Laboratory Qualitative Testing ultrasonic spray coater

Product Description

Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine


Description:

Funsonic’s ultrasonic coating system, with its gentle spray characteristics, greatly reduces overspray, thus reducing costs and pollution of the surrounding air, and at the same time, this new technology expands the range of applications, for example, ideal when low flow rates are required. For substrate coating, atomization and humidification, film coating, spray drying, flux coating, film coating, fine line coating and other industrial and R&D applications.
Desktop type ultrasonic precision coating machine FS620 is an ultrasonic coating machine suitable for scientific research laboratory qualitative test, small batch production and small area film precision production.


Parameters:


Product Type

Intelligent Ultrasonic Precision Coating Machine desktop Type
FS620

Spray Nozzle Operating Frequency20-200KHz (Normally use 60100110120K)
Nozzle Power1-15W
Continuous Spraying Volume Max0.01-50ml/min
Effective Spraying Width2-100mm
Spray Uniformity≥95%
Solution Conversion Rate≥95%
Dry Film Thickness20nm-100μm
Solution Viscosity≤30cps
Temperature Range1-60℃
Atomized Particles (Median Value)10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max≤0.15MPA
Input Voltage220V±10%/50-60Hz
Exercise ModeXYZ three-axis, independently programmable
Control ModeFUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control ContentUltrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply MethodPrecision injection pump
Ultrasonic Dispersion System (Optional)20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System100W



Advantage:

1. It can spray any shape object to form a uniform and efficient film coating with a uniformity of more than 95%.
2. The coating thickness can be precisely controlled, with a single layer as small as several tens of nanometers.
3. Adopt high-precision constant-flow syringe pump with ultra-low flow capacity, which can repeat intermittent or continuous work.
4. Ultra-low infusion air pressure (≤0.15MPA), which can obviously reduce the waste caused by back spraying and save cost.
5. ultrasonic nozzle any choice for different spraying applications.
6. Solution conversion rate ≧95%, the utilization rate is 4 times than the traditional two-fluid spraying.
7. Ultrasonic spray nozzles are self-cleaning, non-clogging and corrosion resistant.
8. Use laser alignment, fast alignment of the spraying position.
9. Configured with a full CNC ultrasonic generator, full intelligent frequency following, frequency chasing, simple and convenient operation.

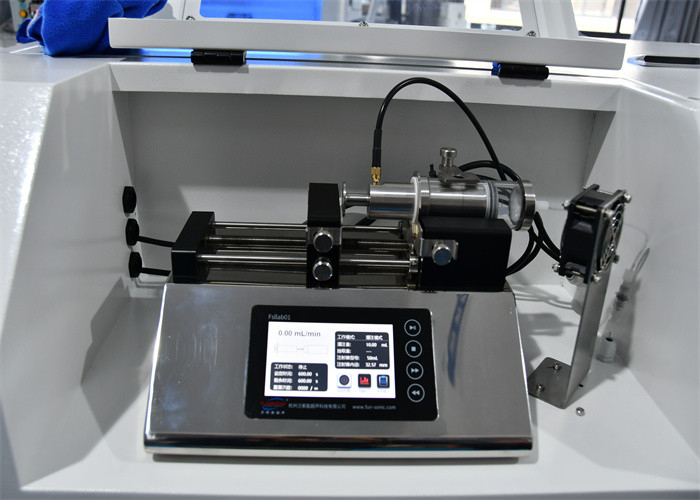

Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine 0

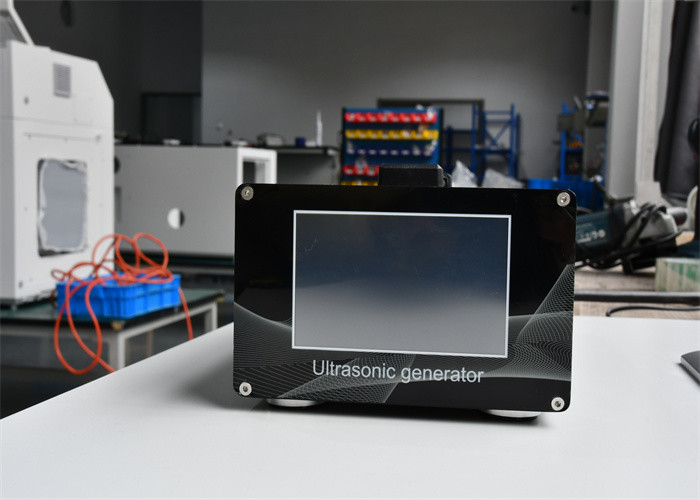

Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine

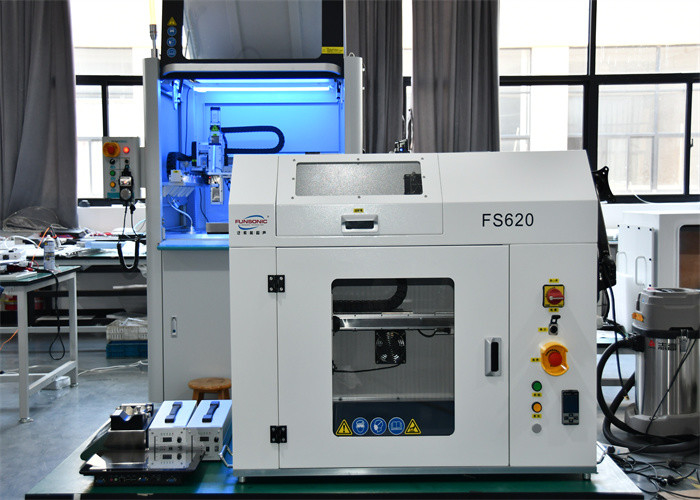

Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine 1

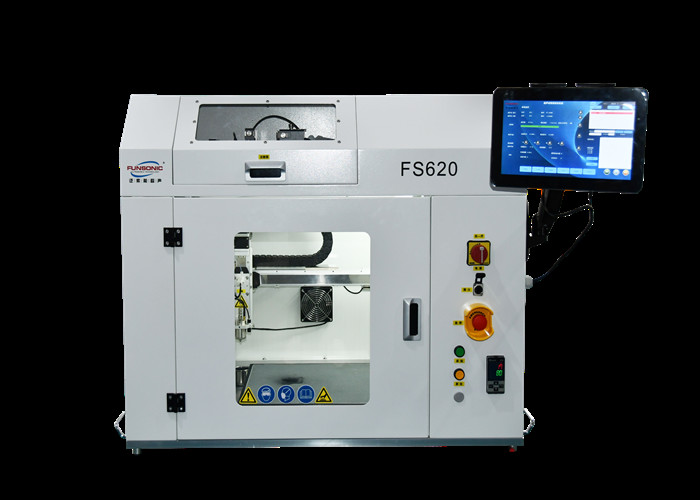

Scientific Research Laboratory Qualitative Testing Ultrasonic Coating Machine 2
