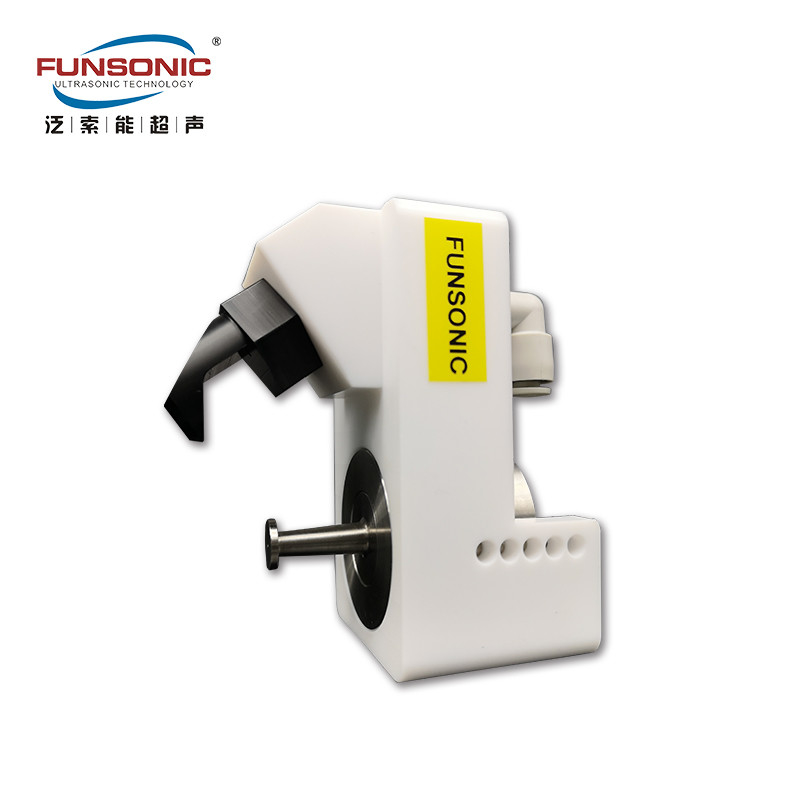

High Frequency 120khz Ultrasonic Atomization Nozzles Widemist Spray Coating Fuel Cell

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by carton
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSW-12001-L

Production Name:

Ultrasonic Widemist Spray Nozzle

Frequency:

120Khz

Max Power:

Automized Particle Size Range:

15-40μm

Spray Flow:

0.5-20ml/min

Liquid Viscosity:

<30cps

Particle Size:

<10μm

Application:

Ultra Large Area Spraying Glass Coating

Highlight:

Fuel Cell Ultrasonic Atomization Nozzles

Widemist Spray Ultrasonic Atomization Nozzles

Widemist Spray Coating Ultrasonic Atomization Nozzles

Product Description

High Frequency 120khz Ultrasonic Atomization Nozzles Widemist Spray Coating Fuel Cell

Description:

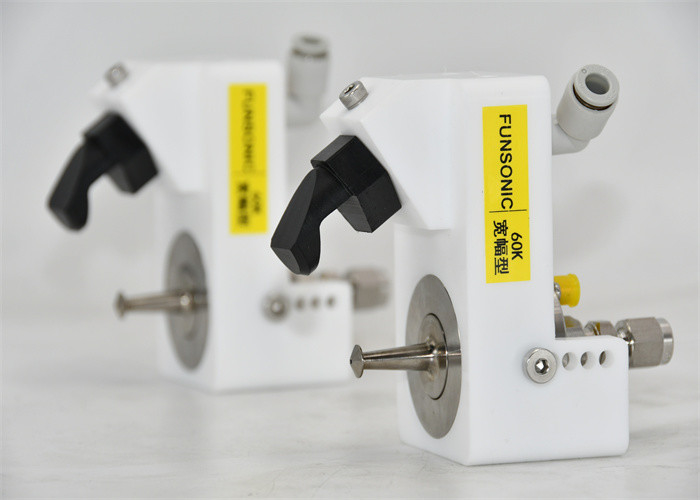

The wide ultrasonic spray nozzle system, also known as the fan-shaped wide spray ultrasonic nozzle system, is a combination of FUNSONIC's unique ultrasonic atomization nozzle and the controlled airflow sprayed by the fan-shaped nozzle. The droplets generated by ultrasonic waves on the atomization surface will be immediately taken away by the air flow, forming a fan-shaped spray shape. As the airflow velocity is controlled, the airflow can shoot spray onto the product or workpiece with high or low impact force.

Parameters:

Type	FSW-12001-L
Name	Ultrasonic Wide Type Spray Coating Nozzle
Frequency	120Khz
Atomized particle size range (μm)	40-120
Spray width(mm)	30-60
Spray flow(ml/min)	0.5-20
Spray height(mm)	50-150
Permissible liquid viscosity(cps)	<30
Allow particle size(μm)	<10
Diversion pressure (Mpa)	<0.05
Application	Suitable for large-area spraying, such as proton exchange membranes, etc

Advantages:

1. The coating is evenly distributed and has high transmission efficiency.

2. No need for moving parts, higher device stability.

3. The ultrasonic nozzle greatly reduces maintenance costs due to its non clogging effect caused by ultrasonic vibration.

4. It has a wide range of liquid flow rates and can be sprayed intermittently or continuously

5. Ultrasonic spray is highly controllable, and the results are reliable and consistent.

6. Ultrasonic high-frequency high-speed spray is easy to control, reducing rebound to the minimum, reducing excessive spray and reducing material consumption.

7. A single nozzle can cover a maximum width of 120mm, and multiple nozzles can cover a large area of substrate.

High Frequency 120khz Ultrasonic Atomization Nozzles Widemist Spray Coating Fuel Cell

High Frequency 120khz Ultrasonic Atomization Nozzles Widemist Spray Coating Fuel Cell 0

High Frequency 120khz Ultrasonic Atomization Nozzles Widemist Spray Coating Fuel Cell 1
