Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS620
Production Name:
Ultrasonic Precision Spraying Machine
Frequency:
60khz
Max Power:
1-15W
Continuous Spraying Volume Max:
20-1200ml/h/pcs，Scalable
Effective Spraying Width:
2-260mm/pcs，Scalable
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

60Khz Ultrasonic Spray Coated Machine

,

Film Precision Ultrasonic Spray Coated Machine

,

High Frequency Ultrasonic Spray Coated Machine

Product Description

Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology


Description:

Ultrasonic precision spraying equipment is a device that utilizes ultrasonic technology to achieve high-precision spraying. It combines spraying technology and ultrasonic technology, which can provide higher control accuracy and uniformity in the coating construction process.



The working principle of ultrasonic precision spraying equipment is to disperse the coating into small particles through ultrasonic vibration, and transfer these particles to the nozzle through air flow. Ultrasonic vibration can effectively crush coating particles, making their particle size more uniform, thereby improving the uniformity and quality of spraying.



Parameters:



Product Type

Ultrasonic Precision Spray Coating Machine Laboratory desktop Type

FS310

Intelligent Ultrasonic Precision Coating Machine desktop Type

FS620
Spray Nozzle Operating Frequency 20-200KHz 20-200KHz (Normally use 60100110120K)
Nozzle Power 1-15W 1-15W
Continuous Spraying Volume Max 0.01-50ml/min 0.01-50ml/min
Effective Spraying Width 2-100mm 2-100mm
Spray Uniformity ≥95% ≥95%
Solution Conversion Rate ≥95% ≥95%
Dry Film Thickness 20nm-100μm 20nm-100μm
Solution Viscosity ≤30cps ≤30cps
Temperature Range 1-60℃ 1-60℃
Atomized Particles (Median Value) 10-45μm (distilled water), determined by the frequency of the nozzle 10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max ≤0.10MPA ≤0.15MPA
Input Voltage 220V±10%/50-60Hz 220V±10%/50-60Hz
Exercise Mode X+Y two axis fully automatic, Z-axis manual adjustment XYZ three-axis, independently programmable
Control Mode Micro computer card, 7-inch touch screen+buttons FUNSONIC spraying control system, PLC control, 13.3-inch full-color touch screen
Control Content Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method Precision injection pump Precision injection pump
Ultrasonic Dispersion System (Optional) 50ml, 40K, biological grade sampler 20ml or 50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System 200W,10A 100W




Compared with traditional spraying equipment, ultrasonic precision spraying equipment has the following advantages:



  • High precision spraying: Ultrasonic technology can achieve particle refinement, making the sprayed particles more uniform, thereby improving the quality and appearance of the coating.
  • High spraying efficiency: Ultrasonic vibration can better disperse paint particles and transmit them to the nozzle through airflow, improving spraying efficiency.
  • Good coating uniformity: Ultrasonic technology can effectively control the size and distribution of coating particles, making the coating more uniform and reducing the problem of coating unevenness.
  • Cost saving: Due to the more precise and uniform spraying process, it can reduce paint waste and lower costs.
  • Ultrasonic precision spraying equipment has a wide range of application prospects in fields such as automobiles, aerospace, electronics, medical devices, etc. It can improve product quality, reduce production costs, and meet the needs of high-precision spraying.

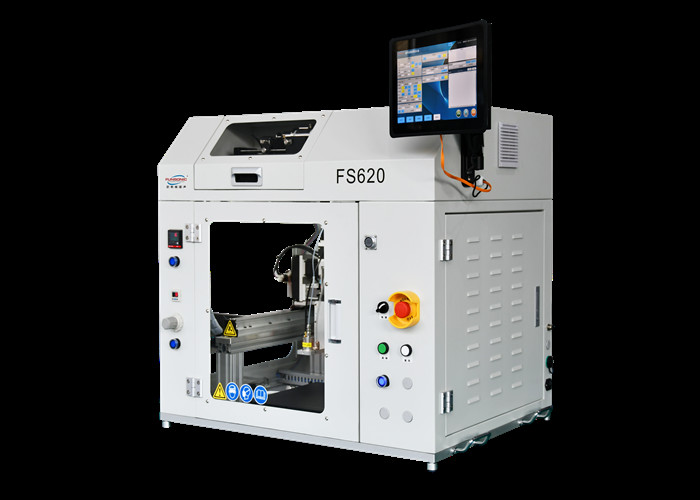

   Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology 0

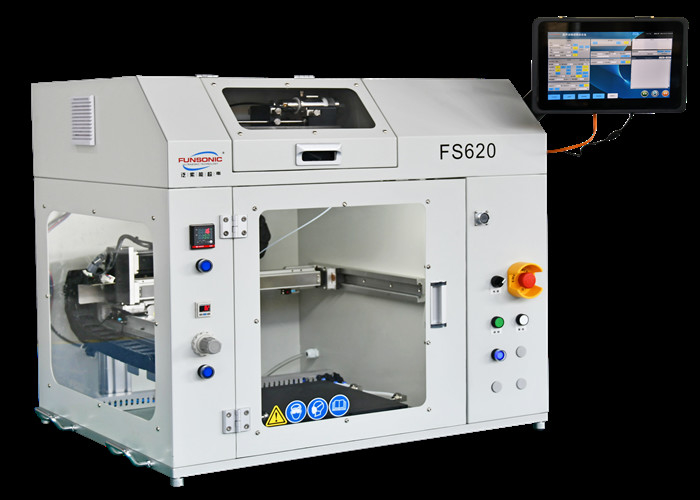

Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology 1

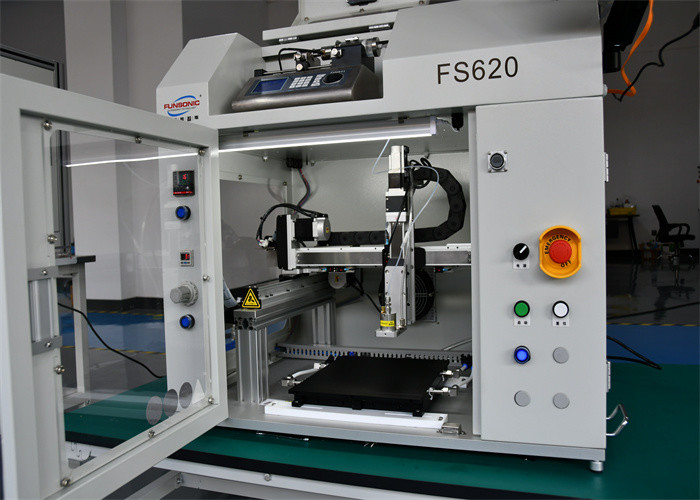

Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology 2

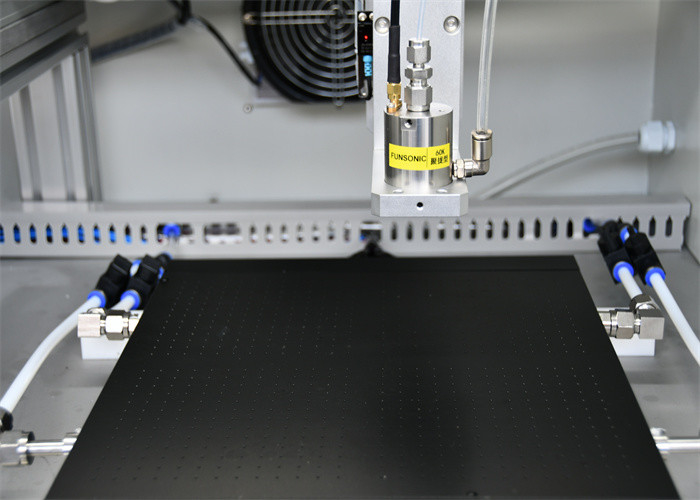

Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology



Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology 3

Film Precision Production Ultrasonic Spray Coated Machine High Frequency 60Khz Ultra Technology 4
