New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying With 110Khz Conemist Nozzle

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FS2000
Production Name:
Production Ultrasonic Spraying System
Frequency:
110khz
Max Power:
1-15w
Continuous Spraying Volume Max:
0.5-12ml/min
Effective Spraying Width:
50-100mm
Spray Uniformity:
≥95%
Solution Viscosity:
≤30cps
Input Voltage:
220V±10%/50-60Hz
Highlight:

New Concept Ultrasonic Coating Perovskite

,

Solar Cells Ultrasonic Coating Perovskite

,

Nebulizer Spraying Ultrasonic Coating Perovskite

Product Description

New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying with 110Khz Conemist Nozzle





Description:



Ultrasonic spraying technology has a wide range of applications in the preparation of perovskite solar cells. Perovskite solar cells are a new type of high-efficiency solar cell, and their active layer is usually composed of perovskite materials.



Ultrasonic atomization equipment is mainly used in industries such as fuel cells, thin-film photovoltaic cells, thin-film solar coatings, perovskite solar cells, solar cells, graphene coatings, silicon photovoltaic cells, glass coatings, biomedicine, food processing, textiles and non-woven fabrics, microelectronics and semiconductors. The nozzle can be used for various liquids, even sewage, chemical liquids, and low viscosity oil and viscous liquids can be atomized and sprayed.





Parameters:



Product Type

Perovskite Batteries Ultrasonic Spray Coating

FS2000

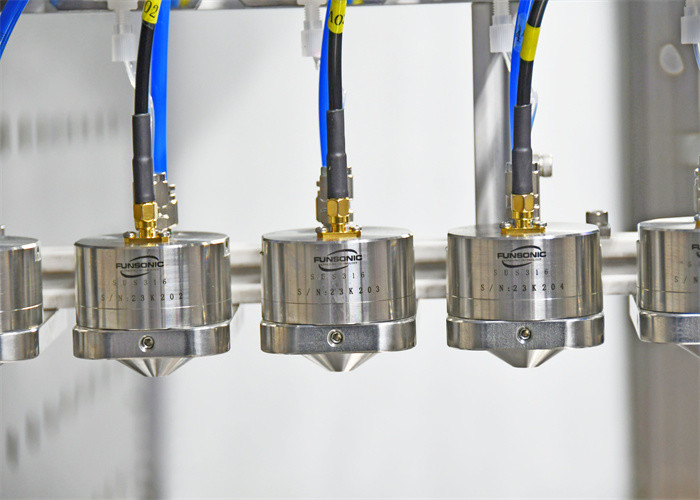

Spray Nozzle Operating Frequency 110KHz
Nozzle Power 1-15W
Continuous Spraying Volume Max Determine based on the type and quantity of nozzles configured
Effective Spraying Width Determine based on the type and quantity of nozzles configured
Spray Uniformity ≥95%
Solution Conversion Rate ≥95%
Solution Viscosity ≤130cps
Temperature Range -10-60℃
Diversion Pressure Max ≤0.15MPA
Material of the contact solution part SUS304, Titanium, PTFE
Exercise Mode A spraying control system independently developed by FUNSONIC based on the Windows system, with PLC control, 15.6-inch full-color touch screen, XYZ three-axis imported servo motor, R-axis start rotation, and fully enclosed precision screw module+Bottom glass conveyor belt
Control Content PLC control, touch screen+buttons
Liquid Supply Method Precision self pumping and constant flow injection pump





The benefits of ultrasonic nozzle spraying fuel cell catalyst slurry:



1. The membrane electrode manufacturing has a very high platinum utilization rate of up to 90%.

2. The porous coating has high strength to prevent cracking or peeling of the catalyst layer.

3. Avoid excessive spraying, save expensive catalyst slurry, and reduce material consumption by up to 50%.

4. Accurate spray pattern, easy to shape, suitable for various applications.

5. Highly controllable atomizing spray with high product consistency.

6. There is no blocking atomizing spray, and there is no deviation.

7. It can perform ultra-low flow spraying and can work intermittently or continuously.

8. Ultrasonic vibration can continuously disperse and mix solid particles.

9. Able to coat proton exchange membranes with very little slurry

10. Outstanding catalyst coating adhesion, suitable for high vibration fuel cell applications such as automotive components.

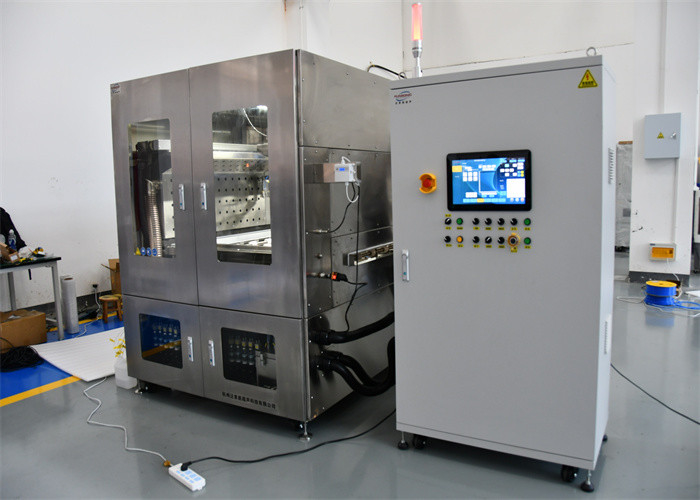

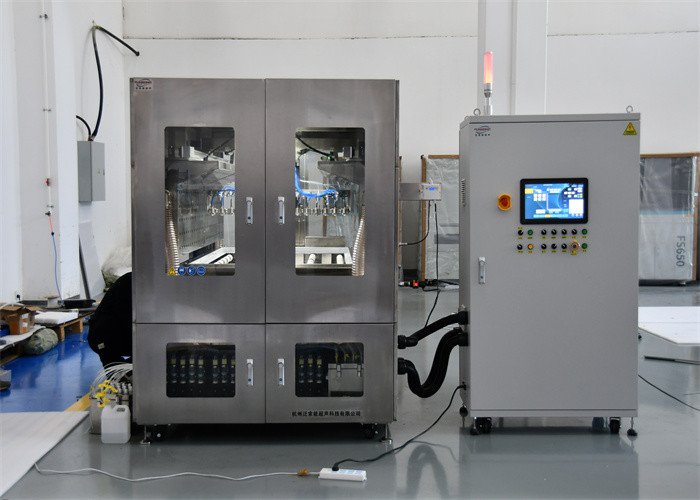

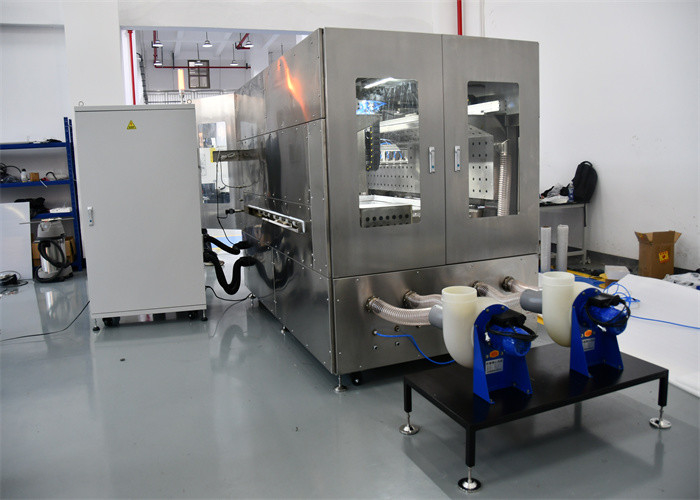

New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying with 110Khz Conemist Nozzle



New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying With 110Khz Conemist Nozzle 0



New Concept Ultrasonic Coating Perovskite Solar Cells Nebulizer Spraying With 110Khz Conemist Nozzle 1

Tags:

Anti Restenosis Polymers Medical Spraying Machine,

Ultrasonic Probe Type Nozzle 40Khz,

Ultrasonic Wide Area Spraying Nozzle
