Intelligent Ultrasonic Dispersion Automatic Pumping System for Ultrasonic Spraying Coated

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSLAB02

Production Name:

Ultrasonic Dispersion Automatic Pumping System

Type:

Automatic Liquid Extraction Type

Travel Control Accuracy:

Error ≤ 0.01% (when The Stroke Is ≥ 30% Of The Maximum Stroke)

Piston Drive:

Stepper Motor Drives Screw, Photoelectric Encoder Detects Out Of Step And Return To Zero Position

Type Of Directional Valve:

3-way Valve (4-way Valve, 3-way Distribution Valve, 9-way Distribution Valve Optional)

Rated Stroke (number Of Control Steps):

30mm (3000 Steps Or 25000 Steps)

Linear Speed Range:

0.005mm/s-30mmm/s

Speed Resolution:

0.005mm/s

Highlight:

Ultrasonic Dispersion Automatic Pumping System

Intelligent Ultrasonic Dispersion Automatic Pumping System

Ultrasonic Spraying Coated Automatic Pumping System

Product Description

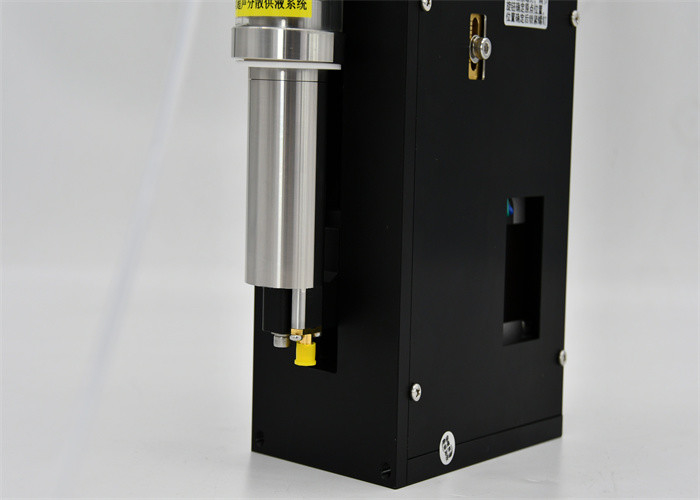

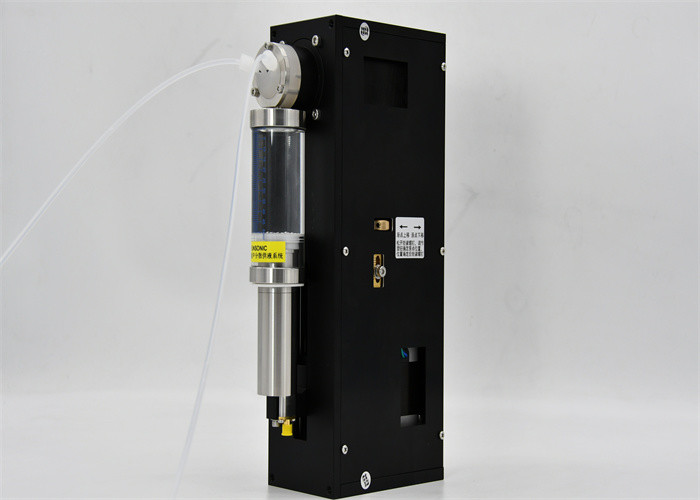

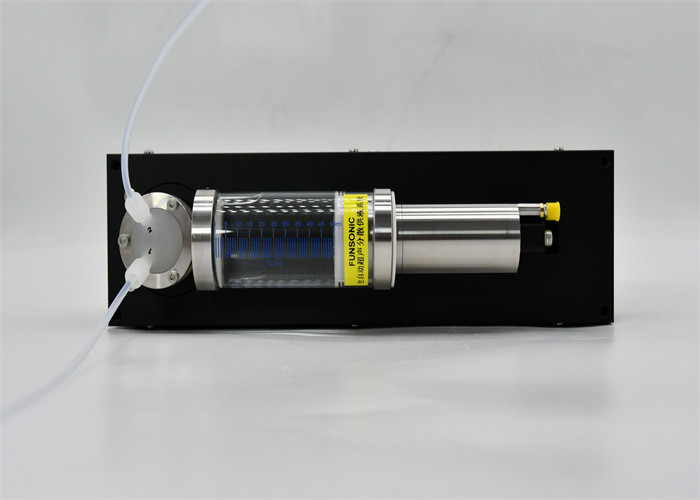

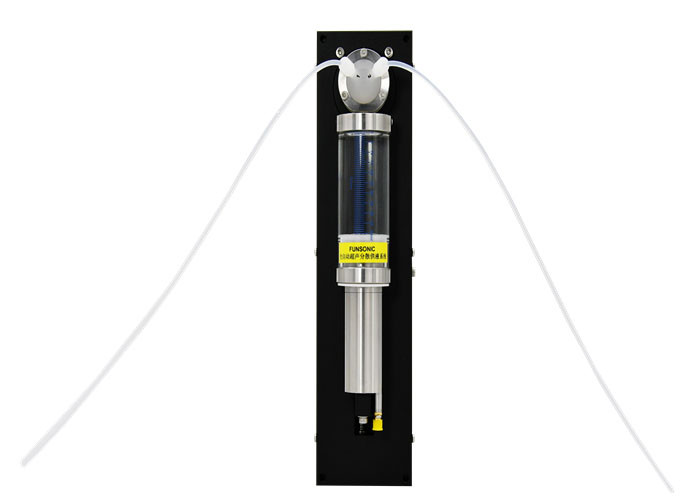

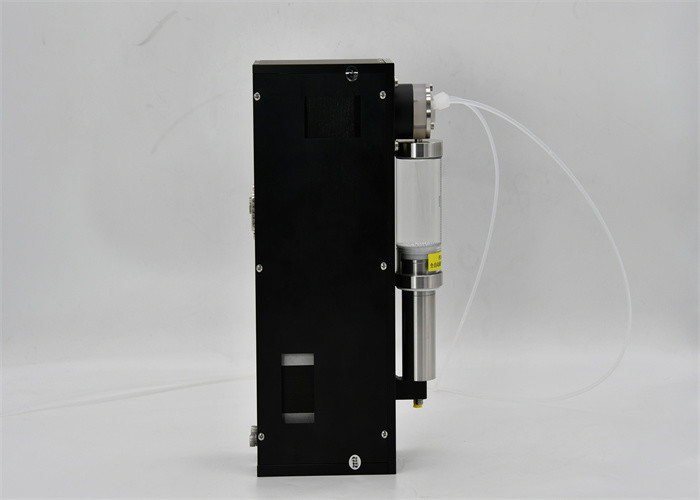

Intelligent Ultrasonic Dispersion Automatic Pumping System for Ultrasonic Spraying Coated

Description:

The FSLAB02 automatic liquid supply system uses a plastic casing and is a programmable fluid processing equipment. The device has a rated travel of 30mm and can achieve functions such as automatic pipetting and dilution through external computers and microcontrollers.

Parameters:

Item No	Ultrasonic Dispersion Automatic Pumping System FSLAB02
Type	Automatic liquid extraction type
Travel control accuracy	Error ≤ 0.01% (when the stroke is ≥ 30% of the maximum stroke)
Piston drive	Stepper motor drives screw, photoelectric encoder detects out of step and return to zero position
Type of directional valve	3-way valve (4-way valve, 3-way distribution valve, 9-way distribution valve optional)
Material of directional valve	Valve body material: PCTFE; Valve core material: PTFE
Rated stroke (number of control steps)	30mm (3000 steps or 25000 steps)
Linear speed range	0.005mm/s-30mmm/s
Running time per trip	1.25s-100min
Speed resolution	0.005mm/s
Travel control resolution	0.01mm or 0.00125mm
Maximum pressure of the liquid circuit	0.68MPa(optional if higher than 0.68MPa)
Storage temperature	-20°C-60°C
Working environment temperature	15°C-40°C (low-temperature operation requires a low-temperature syringe)
power supply	DC240±10%/1.25A(peak)
Syringe type	50μL,100μL,250μL,1.0ml,2.5ml,5.0ml,10ml,25ml
Syringe material	Needle cylinder material: high borosilicate glass; Push rod material: stainless steel; Push rod sealing material: PTFE
Product size(mm)	28080160
Product weight (kg)	1.5
type	Automatic liquid extraction type
Travel control accuracy	Error ≤ 0.01% (when the stroke is ≥ 30% of the maximum stroke)
Piston drive	Stepper motor drives screw, photoelectric encoder detects out of step and return to zero position

Main features:

1. Strong application flexibility and programmability

2. Implement automatic liquid extraction

3. Real and reliable performance, achieving planned maintenance and replacement of injectors

4. Simple integration method to achieve synchronization with external devices

5. Widely applicable to syringes and directional valves of various sizes.

The FSLAB02 automatic liquid supply system can accommodate different specifications of syringes or samplers, suitable for large total liquid supply and regular rhythm working conditions. FUNSONIC's FS620/FS650 and other experimental or production level equipment are also suitable.
