Ultrsonic Dispersion Constant Flow Syringe Pump For FUNSONIC Ultrasonic Precision Spraying Coated
  • name
  • name
  • name
  • name

Ultrsonic Dispersion Constant Flow Syringe Pump For FUNSONIC Ultrasonic Precision Spraying Coated

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by Wooden Case
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSLAB03
Production Name:
Ultrasonic Dispersion Constant Pumping System
Type:
Constant Flow Pumping Type
Flow Range:
0.6μL-70ml
Infusion Volume:
0.1μL-25ml(ultrasonic Dispersion 25ml）
Travel Control Accuracy:
≤ ±0.05%(at Maximum Stroke, 500 μ Syringes Above L, Deionized Water At Room Temperature)
Rated Stroke (number Of Control Steps):
30mm (3000 Steps Or 25000 Steps)
Linear Speed Range:
0.005mm/s-30mmm/s
Travel Control Resolution:
0.01mm Or 0.00125mm
Highlight:

Constant Flow Syringe Pump

,

Ultrsonic Dispersion Syringe Pump

,

Ultrsonic Dispersion Constant Flow Syringe Pump

Product Description

Ultrsonic Dispersion Constant Flow Syringe Pump for FUNSONIC Ultrasonic Precision Spraying Coated


Description:
The FSLAB03 constant flow pumping liquid supply system focuses on the transmission and distribution of "micro upgraded" liquids. By controlling a set of alternating "extraction injection" execution units, combined with directional valves, the "constant flow injection" function is achieved, which not only retains the transmission accuracy of the micro injection pump, but also achieves uninterrupted liquid transmission.


Parameters:


Item No

Ultrasonic Dispersion Constant Pumping System
FSLAB03

typeConstant flow pumping type
Flow range0.6μL-70ml
Infusion volume0.1μL-25ml(ultrasonic dispersion 25ml)
Travel control accuracy≤ ±0.05%(at maximum stroke, 500 μ Syringes above L, deionized water at room temperature)
Piston driveStepper motor drives screw, photoelectric encoder detects out of step and return to zero position
Type of directional valve3-way valve 120 ° valve
Material of directional valveValve body material: PCTFE; Valve core material: PTFE
Rated stroke (number of control steps)30mm(3000 steps or 25000 steps)
Linear speed range0.005mm/s-30mmm/s
Travel control resolution0.01mm or 0.00125mm
Maximum pressure of the liquid circuit0.68MPa (optional if higher than 0.68MPa)
Control methodTouch screen+imported mechanical buttons
powerController ≤ 10w, execution unit ≤ 60w
Working environment temperature15°C-40°C (low-temperature operation requires a low-temperature syringe)
Applicable power supplyDC240±10%/1.25A(peak)
Syringe type50μL,100μL,250μL,1.0ml,2.5ml,5.0ml,10ml,25ml
Product size (mm)280*165*170
Product weight (kg)3.2



Main features:

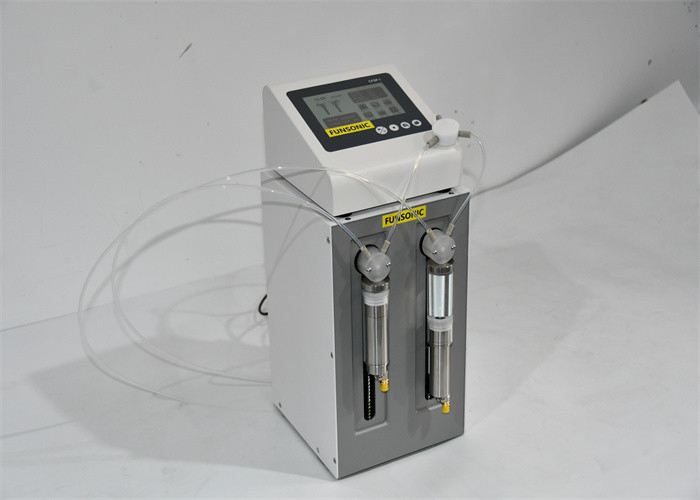

1. 4.3-inch industrial grade true color LCD screen, synchronized simulation animation, intuitive and convenient user operation
2. "Micro upgrade" liquid uninterrupted transmission and intelligent proofreading function
3. Four working modes: continuous transmission, quantitative measurement, timed quantitative measurement, and timed start stop
4. Record the usage times of the directional valve and injector, obtain real-time operating information, and facilitate equipment maintenance
5. Closed loop control, overload protection function, syringe protection, silent equipment

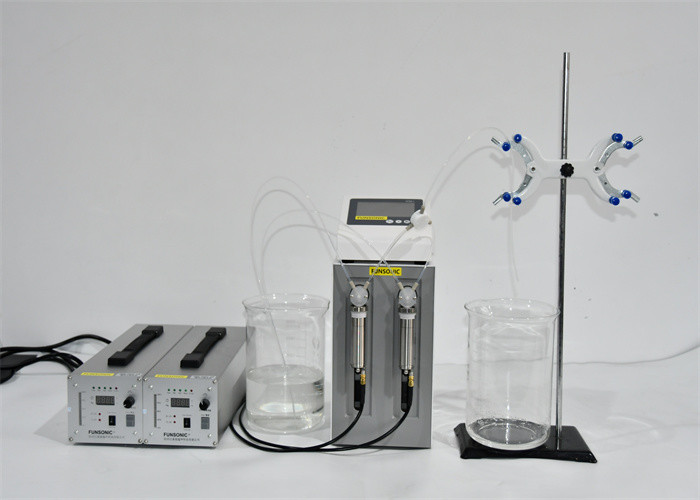

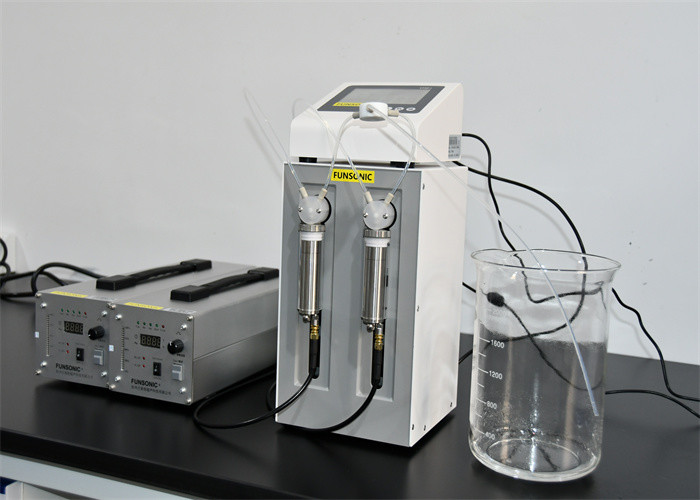

FSLAB03 can accommodate syringes and samplers of different specifications, suitable for constant flow transmission of liquids.


Ultrsonic Dispersion Constant Flow Syringe Pump for FUNSONIC Ultrasonic Precision Spraying Coated

Ultrsonic Dispersion Constant Flow Syringe Pump For FUNSONIC Ultrasonic Precision Spraying Coated 0Ultrsonic Dispersion Constant Flow Syringe Pump For FUNSONIC Ultrasonic Precision Spraying Coated 1
