Ceramic Microporous Heating Vacuum Adsorption Platform For Ultrasonic Sprayinng Coated Atomization

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSJ-2020-S

Production Name:

Heating Vacuum Adsorption Platform

Type:

Ceramic Micropores Type

Heating Plate Size (mm):

200*200（customized）

Net Weight（kg）:

Power:

500-2500w

Control Temperature Range:

Within Normal Temperature 250℃

Continuous Service Life:

350℃ Temperature Controlled Dry Burning≥20000 Hours

Heating Plate Material:

Ceramic

Highlight:

Ceramic Microporous Heating Platform

Vacuum Adsorption Platform

Ultrasonic Sprayinng Coated Atomization Platform

Product Description

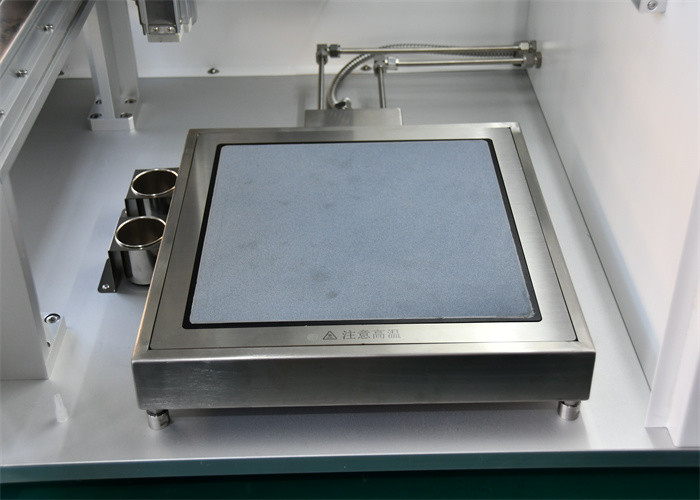

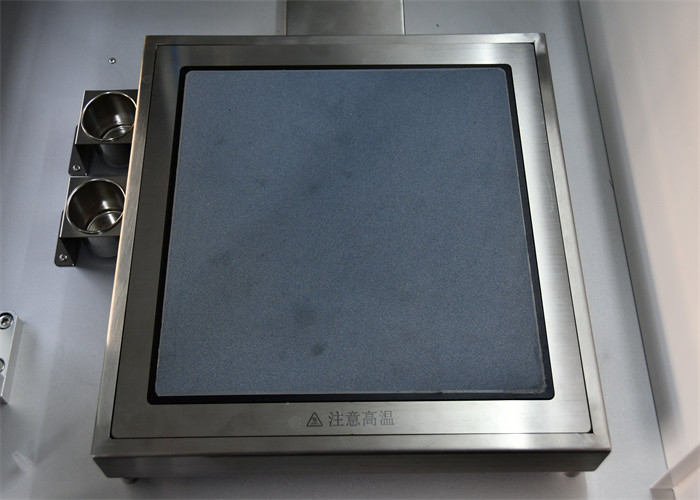

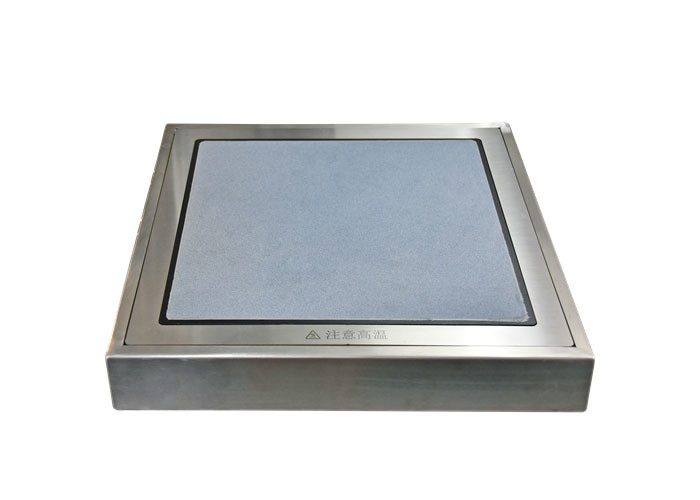

Ceramic Microporous Heating Vacuum Adsorption Platform for Ultrasonic Sprayinng Coated Atomization

Description:

The vacuum adsorption platform can be used in conjunction with the FUNSONIC ultrasonic spraying machine, especially suitable for thin substrates, wafers, foils, and thin film coatings. In these applications, control over the substrate has been enhanced to achieve the required coating thickness and uniformity. The adsorption heating platform can be programmed to heat the substrate to 150 ℃ -500 ℃. The vacuum adsorption heating platform has materials such as aluminum alloy, titanium alloy, and high-temperature stainless steel to choose from.

Parameters:

Name	Heating vacuum adsorption platform
Type	Aluminum alloy small hole Type	Ceramic micropores Type	High temperature stainless steel Type
Heating plate size (mm)	300*300(customized)	300*300(customized)	300*300(customized)
Net weight(kg)	9.6	8	10.2
Power	500-2500w
Control temperature range	Within Normal Temperature 250℃		Within 550℃
Continuous service life	350℃ temperature controlled dry burning≥20000 hours
Heating plate material	Aluminum	Ceramic	Stainless steel
True pore suction	0.5-1.5mm	20-30μm	No
Temperature controller control accuracy	±1℃
Temperature difference on the surface of the countertop	±1-2℃
Voltage	220V50hz
Vacuum pumping method	Vacuum pump or vacuum generator

Product features:

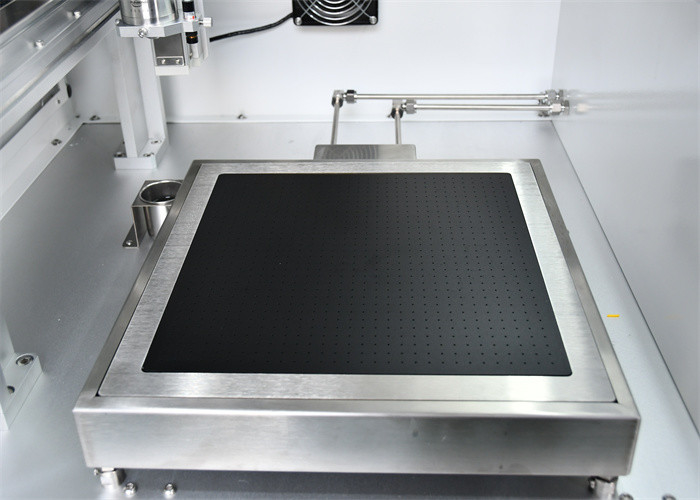

1. The top surface of the heating table is distributed with rectangular or customer specified vacuum circular holes, and the diameter size can also be customized according to customer requirements

2. There are two ways to vacuum, pretending to be a vacuum generator internally to achieve vacuum negative pressure; External reserved interface, to be purchased by the customer for installation of the vacuum machine

3. Adopting high-quality digital temperature control instrument, with high accuracy, safe, simple, clear, and convenient operation

4. Adopting high-quality stainless steel electric heating coils, easy and fast maintenance, and low failure rate

5. The inner cavity can be pumped into a negative pressure state, so that the small circular holes on the surface have the function of adsorbing flat film products

6. Controlled by microcomputer and microcontroller, automatic constant temperature, using the electronic industry for sealing and dispensing operations

Ceramic Microporous Heating Vacuum Adsorption Platform for Ultrasonic Sprayinng Coated Atomization

Ceramic Microporous Heating Vacuum Adsorption Platform For Ultrasonic Sprayinng Coated Atomization 0

Ceramic Microporous Heating Vacuum Adsorption Platform For Ultrasonic Sprayinng Coated Atomization 1
