High Temperature Stainless Steel Heating Vacuum Adsorption Platform For Ultrasonic Precision Coating Machine

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSJ-5050-H50

Production Name:

Heating Vacuum Adsorption Platform

Type:

High Temperature Stainless Steel Type

Heating Plate Size (mm):

300*300（customized）

Net Weight（kg）:

Power:

500-2500w

Control Temperature Range:

Within Normal Temperature 550℃

Continuous Service Life:

350℃ Temperature Controlled Dry Burning≥20000 Hours

Heating Plate Material:

Stainless Steel

Highlight:

High Temperature Vacuum Adsorption Platform

Stainless Steel Vacuum Adsorption Platform

Ultrasonic Precision Coating Machine Adsorption Platform

Product Description

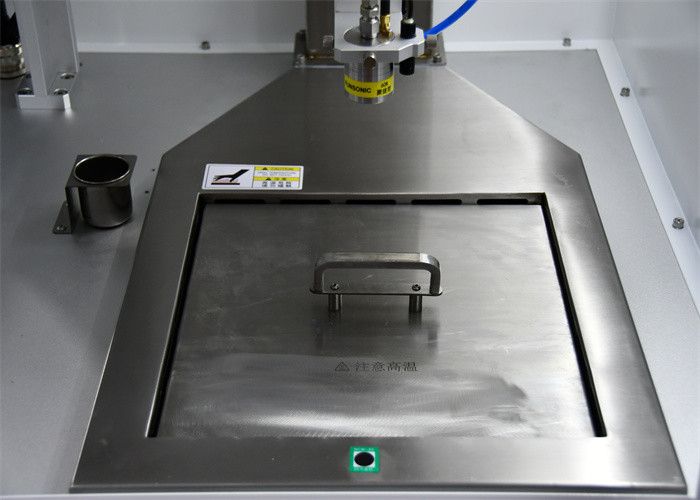

High Temperature Stainless Steel Heating Vacuum Adsorption Platform for Ultrasonic Precision Coating Machine

Description:

The vacuum heating adsorption platform is a vacuum heating adsorption device that integrates heating and vacuum functions. It solves the problem of traditional adsorption platforms not having heating functions and is very suitable for the research and development of fuel cell membrane electrodes. It is also an ideal positioning accessory for high-precision product rapid production.

Parameters:

Name	Heating vacuum adsorption platform
Type	Aluminum alloy small hole Type	Ceramic micropores Type	High temperature stainless steel Type
Heating plate size (mm)	300*300(customized)	300*300(customized)	300*300(customized)
Net weight(kg)	9.6	8	10.2
Power	500-2500w
Control temperature range	Within Normal Temperature 250℃		Within 550℃
Continuous service life	350℃ temperature controlled dry burning≥20000 hours
Heating plate material	Aluminum	Ceramic	Stainless steel
True pore suction	0.5-1.5mm	20-30μm	No
Temperature controller control accuracy	±1℃
Temperature difference on the surface of the countertop	±1-2℃
Voltage	220V50hz
Vacuum pumping method	Vacuum pump or vacuum generator

Product features:

1. The top surface of the heating table is distributed with rectangular or customer specified vacuum circular holes, and the diameter size can also be customized according to customer requirements

2. There are two ways to vacuum, pretending to be a vacuum generator internally to achieve vacuum negative pressure; External reserved interface, to be purchased by the customer for installation of the vacuum machine

3. Adopting high-quality digital temperature control instrument, with high accuracy, safe, simple, clear, and convenient operation

4. Adopting high-quality stainless steel electric heating coils, easy and fast maintenance, and low failure rate

5. The inner cavity can be pumped into a negative pressure state, so that the small circular holes on the surface have the function of adsorbing flat film products

6. Controlled by microcomputer and microcontroller, automatic constant temperature, using the electronic industry for sealing and dispensing operations

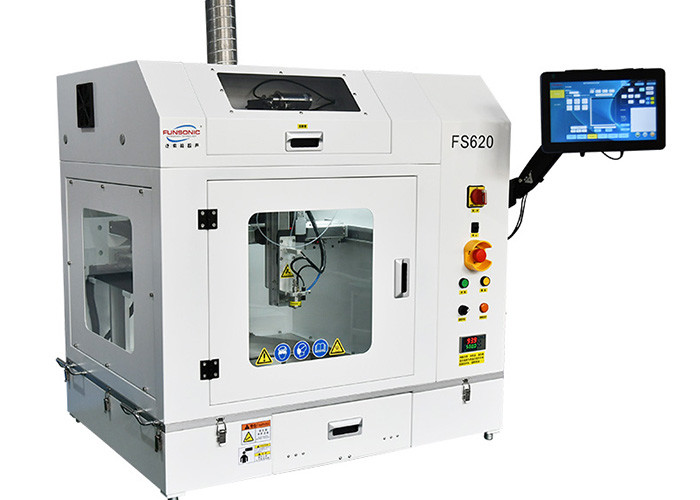

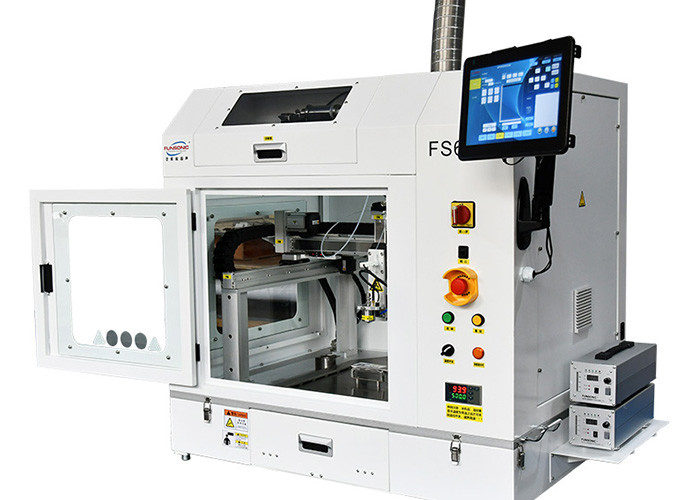

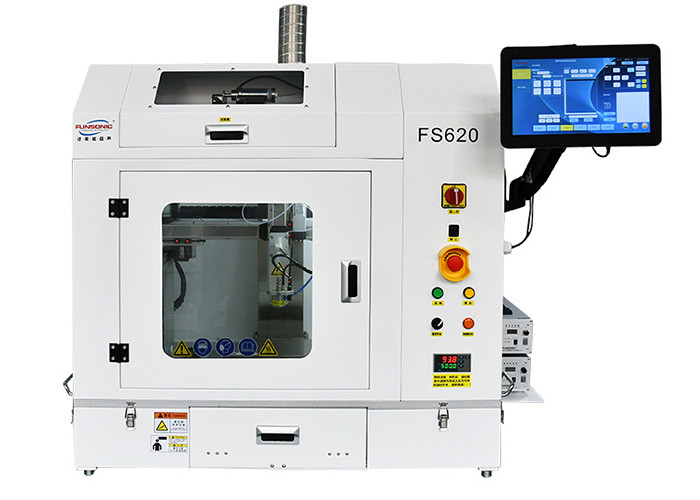

High Temperature Stainless Steel Heating Vacuum Adsorption Platform for Ultrasonic Precision Coating Machine

High Temperature Stainless Steel Heating Vacuum Adsorption Platform For Ultrasonic Precision Coating Machine 0

High Temperature Stainless Steel Heating Vacuum Adsorption Platform For Ultrasonic Precision Coating Machine 1
