100Khz Drug Stent Ultrasonic Atomizing Spraying Nozzle

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by carton
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSW-1005-L

Production Name:

Ultrasonic Spraying Nozzle

Frequency:

100Khz

Max Power:

Automized Particle Size Range:

15-40μm

Spray Flow:

0.01-1ml/min

Liquid Viscosity:

<15cps

Particle Size:

Application:

Medical Balloon, Stent, Fine Wire Spraying

Highlight:

100Khz ultrasonic nozzle

Drug Stent Ultrasonic Atomizing Spring Nozzle

Product Description

100Khz Drug Stent Ultrasonic Atomizing Spraying Nozzle

Description:

The ultrasonic fine line atomization nozzle is made of titanium alloy and has good acoustic characteristics. The liquid supply mode of the nozzle is different from other nozzle modes. The liquid is introduced to the atomization surface through the externally installed conduit, and the gas enters from the nozzle hole. The air flow attracts the spray to form an extremely narrow spray beam. The significant feature of this ultrasonic fine line atomization is that the liquid is supplied externally, and before the liquid atomization, the liquid is completely isolated from the nozzle vibration. This means that in different spray cycles, spray has higher stability and reproducibility.

Parameters:

Model	FSW-1005-L
Name	100Khz Line Ultrasonic Nozzle Atomization
Frequency	100Khz
Atomized particle size range(μm)	15-40
Spray width(mm)	0.5-2
Spray flow(ml/min)	0.01-1
Spray height(mm)	10-20
Liquid viscosity (cps)	<15
Particle size (μm)	<8
Diversion pressure (Mpa)	<0.02
Application	Suitable for Medical balloon, stent, fine wire spraying

Advantages:

1. The ultrasonic spray nozzle is not blocked;

2. Highly controllable and repeatable spray;

3. The coating is evenly distributed, durable, and will not peel or peel off;

4. Be able to conduct spray at the flow rate of μ L/h;

5. Low speed spray can be attached to the stent or balloon without rebound or overspray;

6. The droplets are as small as ten micrometers (when using organic solvents), and the distribution of droplets is uniform;

7. It belongs to mature technology and can be used for coating implantable stents and other precision medical equipment.

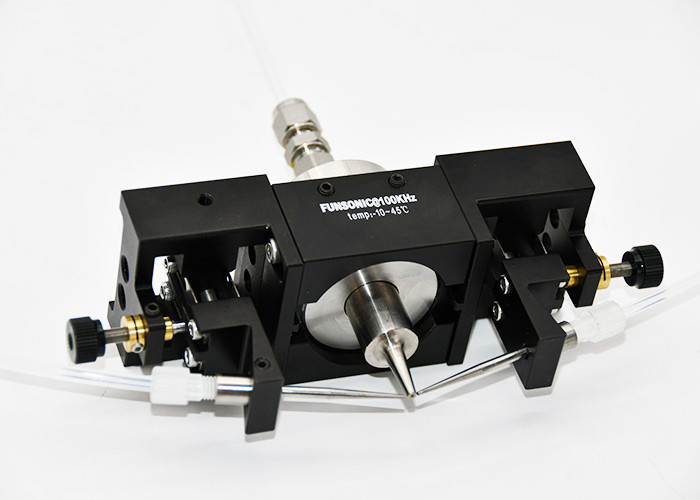

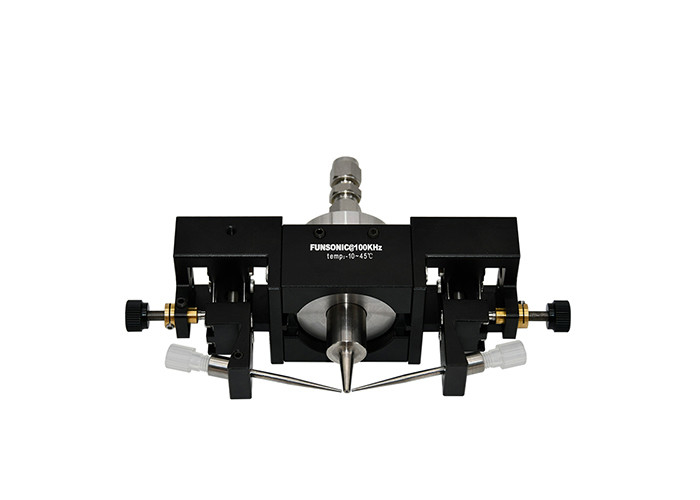

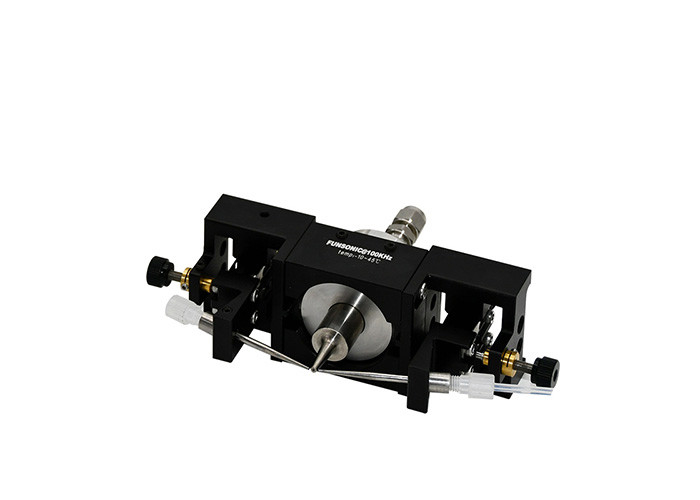

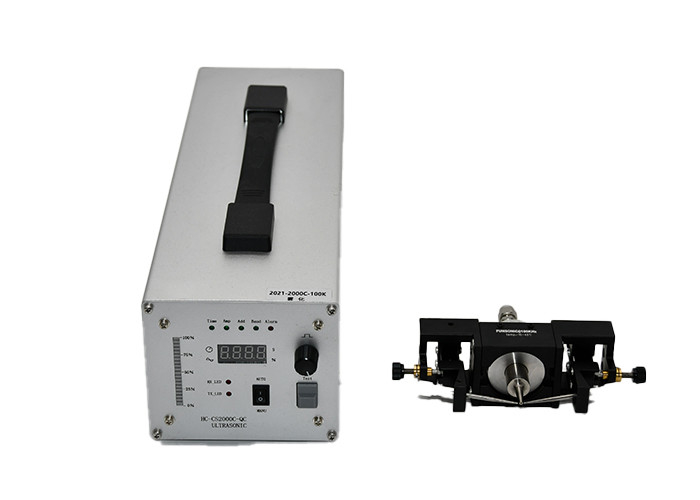

100Khz Drug Stent Ultrasonic Atomizing Spraying Nozzle

100Khz Drug Stent Ultrasonic Atomizing Spraying Nozzle 0
