Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-1205-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 120Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.01-1ml/min | Liquid Viscosity: | <15cps |
| Particle Size: | <8μm | Application: | Medical Balloon, Stent, Fine Wire Spraying |
| High Light: | 120Khz ultrasonic nozzle,Ultrasonic Drug Solution Stent Coating Nozzle |
||
120Khz Ultrasonic Drug Solution Stent Coating Nozzle
Description:
Ultrasonic fine line spraying is a method of spraying using ultrasonic technology. It combines the vibration effect of ultrasound with traditional spraying technology, providing a more uniform and efficient spraying effect.
In ultrasonic fine line spraying, the liquid spraying material is placed in a container or spray gun, and the ultrasonic transmitter generates high-frequency sound waves to vibrate and disperse the liquid into small droplets. These small droplets have smaller sizes and higher velocities, which can better cover the target surface and provide a uniform spray layer.
Parameters:
| Model | FSW-1205-L |
| Name | 120Khz Line Ultrasonic Nozzle Atomization |
| Frequency | 120Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 0.5-2 |
| Spray flow(ml/min) | 0.01-1 |
| Spray height(mm) | 10-20 |
| Liquid viscosity (cps) | <15 |
| Particle size (μm) | <8 |
| Diversion pressure (Mpa) | <0.02 |
| Application | Suitable for Medical balloon, stent, fine wire spraying |
Ultrasonic bracket spraying has the following advantages compared to traditional spraying techniques:
1. Uniformity: Ultrasonic stent spraying can disperse liquids into small droplets, which have a more uniform size and distribution. In contrast, traditional spraying techniques may produce large droplets or uneven spraying, leading to uneven coating and quality issues.
2. Material saving: Due to the ability of ultrasonic bracket spraying to effectively disperse liquids into small droplets and cover the target surface, relatively less spraying material can achieve the desired coverage effect. This can reduce material waste and save costs.
3. Spray efficiency: Ultrasonic bracket spraying can generate high-speed and high-frequency liquid droplets, quickly covering the target surface. In contrast, traditional spraying techniques may require a longer time to complete the same spraying task.
4. Adaptability: Ultrasonic bracket spraying is suitable for various liquid spraying materials, including coatings, lubricants, preservatives, etc. It can be applied to various materials and surface types, providing a wide range of spraying applications.
5. Difficult to reach areas: Ultrasonic bracket spraying can adapt to various difficult to reach areas, such as narrow spaces and complex surfaces, by changing the shape and design of the nozzle. This makes spraying operations more flexible and reliable.
Overall, ultrasonic bracket spraying has significant advantages over traditional spraying techniques in terms of uniformity, material savings, spraying efficiency, and adaptability. However, in specific applications, it is still necessary to consider the spraying requirements and material characteristics comprehensively, and choose the appropriate spraying technology.

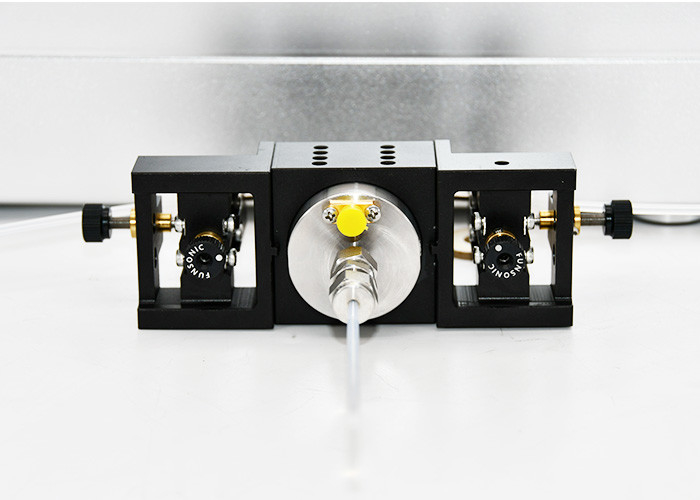

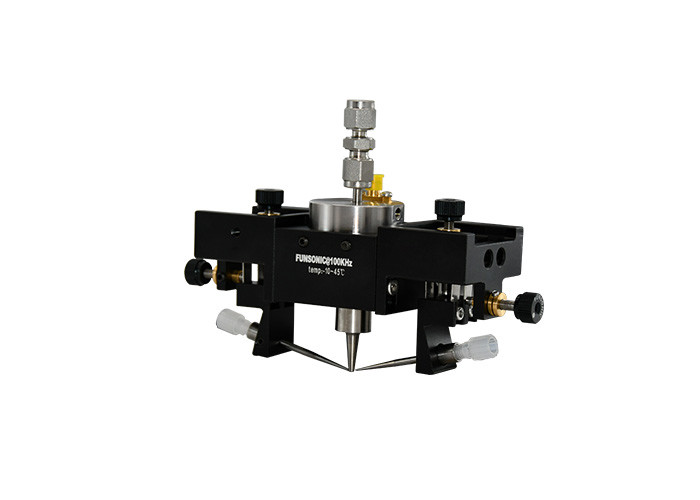

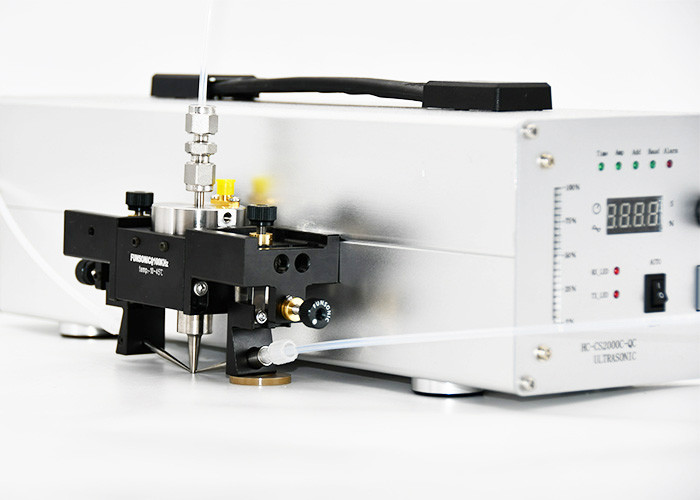

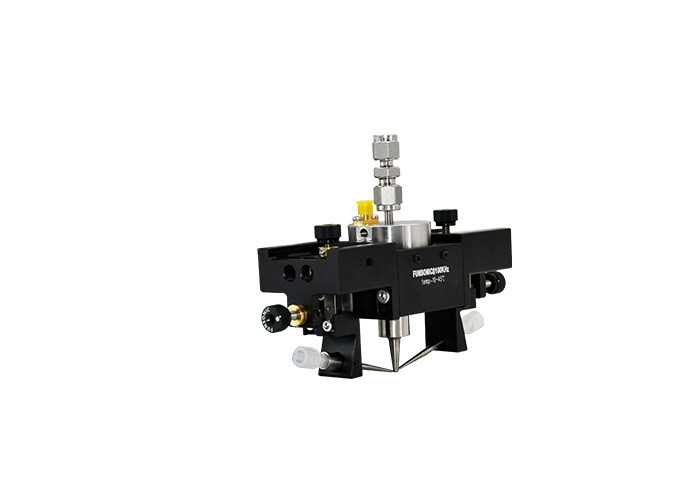

120Khz Ultrasonic Drug Solution Stent Coating Nozzle
