50Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles

50Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-5006-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
50Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
1-25ml/min
Liquid Viscosity:
<30cps
Particle Size:
<8μm
Application:
Suitable For Large-area Spraying, Such As Glass Coating, Etc
Highlight:

50khz wide spray nozzle

,

50khz ultrasonic nozzle

,

50khz spraying nozzle

Product Description

50Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles





Description:



The wide area nozzle utilizes a special air forming device that can form a lateral fan shape. This design can be integrated into reciprocating systems or deployed in series across multiple nozzles to achieve wide coating coverage. A reciprocating system with a nozzle typically applies flux to the bottom surface of a printed circuit board in a wave soldering machine. The series system can be used for various applications from float glass to textiles.





Parameters:



Model FSW-5006-L
Name 50Khz Wide Ultrasonic Nozzle Atomization
Frequency 50Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 50-100
Spray flow(ml/min) 1-25
Spray height(mm) 50-300
Liquid viscosity (cps) <30
Particle size (μm) <10
Diversion pressure (Mpa) <0.1
Application Suitable for large-area spraying, such as glass coating, etc





The advantages of a wide nozzle ultrasonic atomizer include:



1. Wide range atomization: The wide nozzle design allows the nozzle to produce a wide range of atomization, covering a wider area and improving spraying efficiency.

2. Uniformity: Through ultrasonic technology, liquids can be finely dispersed into uniform droplets, achieving a uniform spraying effect and avoiding uneven coating.

3. Material saving: Due to uniform atomization and small droplet size, relatively fewer spraying materials can achieve the required coverage effect, reducing material waste.

It should be noted that when using a wide nozzle ultrasonic atomizer, appropriate ultrasonic frequency, nozzle diameter, and operating parameters should be selected according to specific application requirements to achieve the best spraying effect. Meanwhile, according to the characteristics of the spraying material, it may be necessary to properly clean and maintain the nozzle to maintain its normal operation and extend its service life.

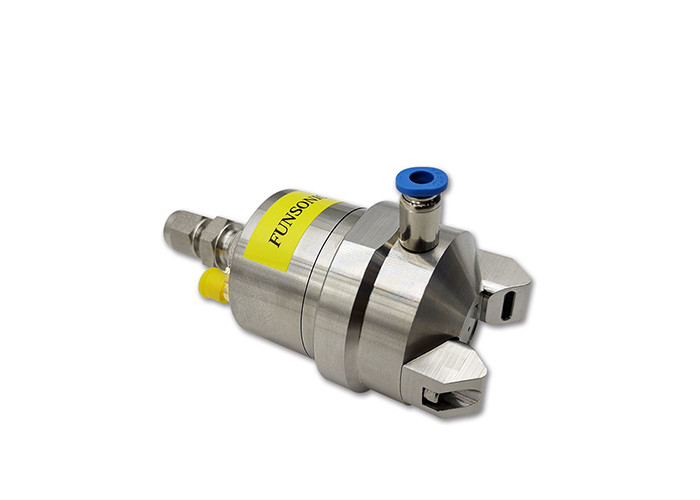

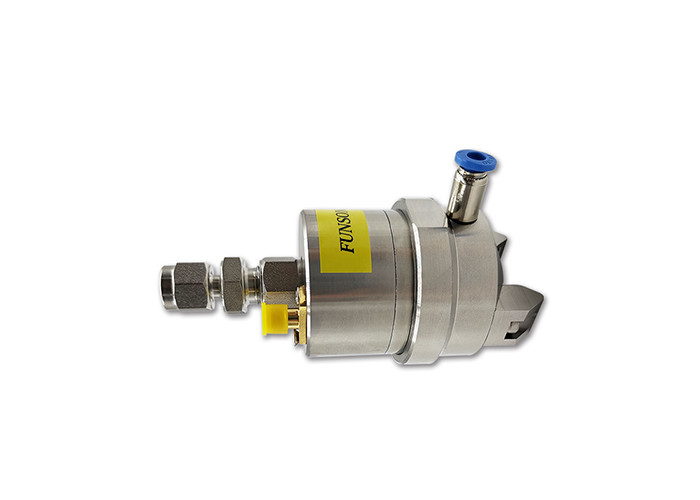

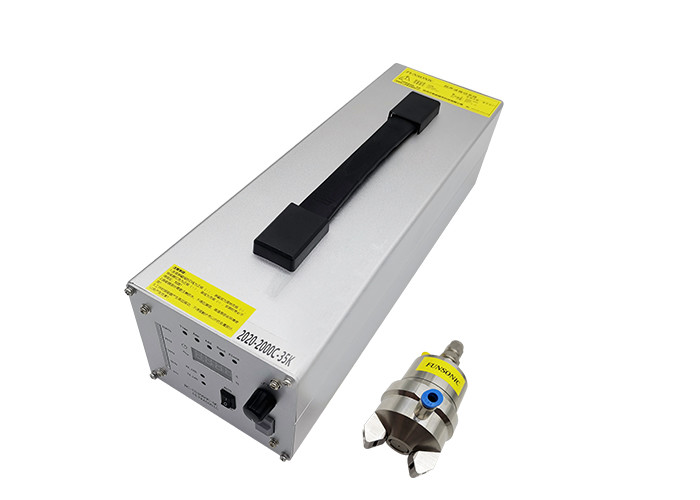

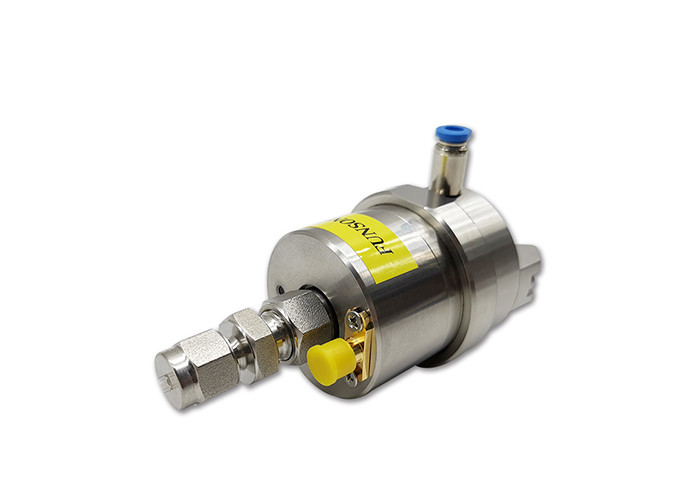

50Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles



50Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles 050Khz Ultrasonic Lateral Fan Shape Wide Spraying Nozzles 1
