Hangzhou Qianrong Automation Equipment Co.,Ltd.
focus on ultrasonic application, in good faith to win customers
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-5006-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 50Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 1-25ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <8μm | Application: | Suitable For Large-area Spraying, Such As Glass Coating, Etc |
| High Light: | Ultrasonic Float Glass Wide Spraying Nozzle,Float Glass Wide Spraying Nozzle Ultrasonic,Float Glass Wide Spraying Nozzle 50Khz |
||

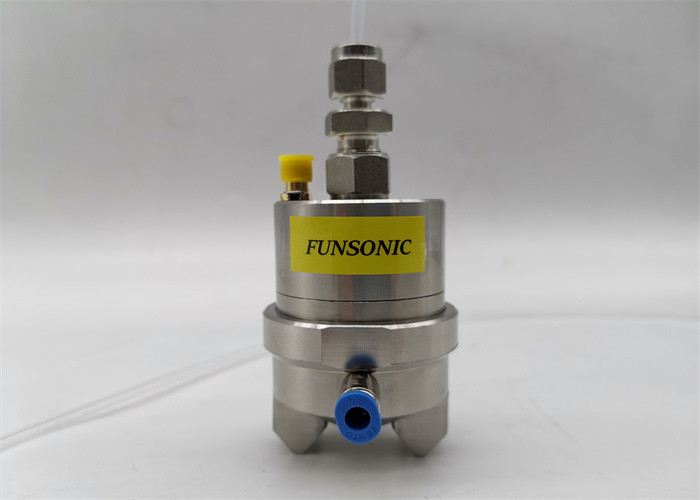

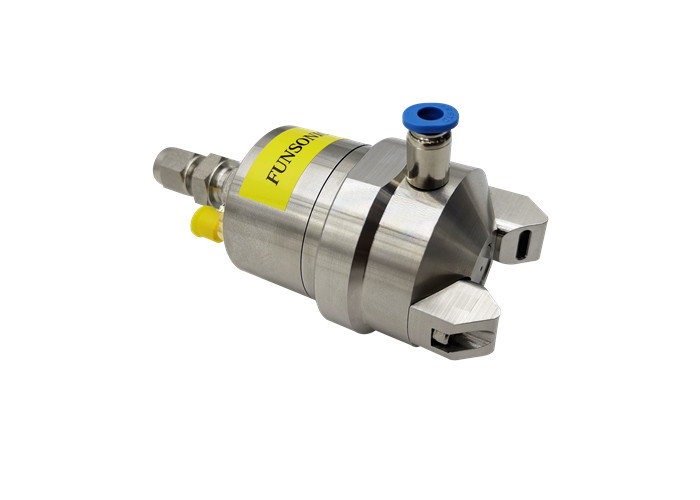

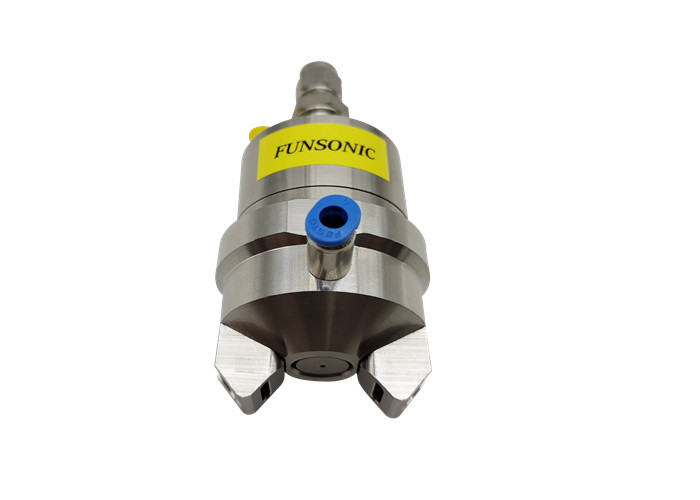

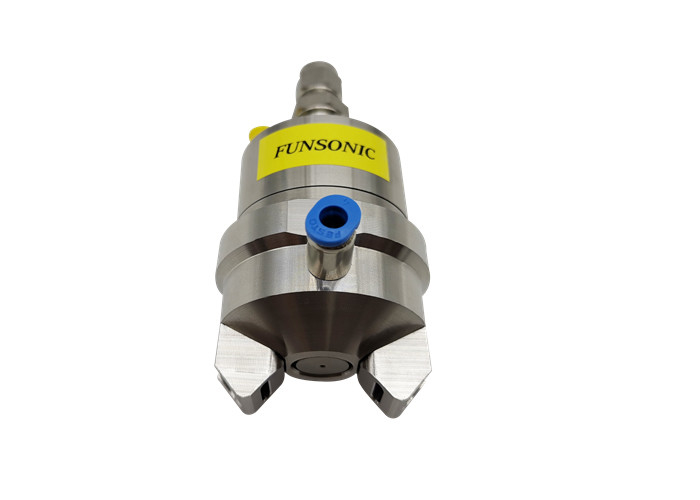

Ultrasonic Application Float Glass Wide Spraying Nozzle 50Khz
Description:
The wide nozzle ultrasonic atomization nozzle is a type of ultrasonic atomization nozzle design aimed at producing a wide range and uniform atomization effect. Compared to traditional atomization nozzles, it has a wider outlet diameter and a special structural design.
Wide nozzle ultrasonic atomization nozzles are usually made of metal or plastic materials and contain an ultrasonic transmitter and receiver inside. Ultrasonic emitters generate sound waves through high-frequency vibrations, dispersing liquids into tiny droplets. The wide nozzle design allows the nozzle to generate a wide range of atomization, evenly spraying droplets onto the target surface.
Wide mouth ultrasonic atomizing nozzles are widely used in many applications, including spray cooling, moist air, odor control, coating and spray irrigation. For example, in the industrial field, it can be used for uniform spraying during the coating process to ensure the quality and appearance of the coating. In the agricultural field, it can be used to spray pesticides or fertilizers to achieve uniform coating and spray coverage.
Parameters:
| Model | FSW-5006-L |
| Name | 50Khz Wide Ultrasonic Nozzle Atomization |
| Frequency | 50Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 50-100 |
| Spray flow(ml/min) | 1-25 |
| Spray height(mm) | 50-300 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Diversion pressure (Mpa) | <0.1 |
| Application | Suitable for large-area spraying, such as glass coating, etc |
The wide nozzle ultrasonic atomizer is suitable for the following specific industrial applications:
1. Combustion and gas field: The wide nozzle ultrasonic atomizer nozzle can be used for combustion and gas applications. By atomizing fuel into tiny droplets, combustion efficiency and uniformity can be improved, reducing pollutant emissions. This has important applications in fields such as combustion furnaces, gas turbines, and combustion control systems.
2. Chemical and pharmaceutical industry: wide mouth ultrasonic atomizing nozzle can be used for spray and mixing processes in chemical and pharmaceutical industries. It can disperse liquid reactants into small droplets, improving reaction rate and mixing effect. This has applications in fields such as catalyst spraying, drug formulations, and chemical synthesis.
3. Powder metallurgy and coating technology: wide nozzle ultrasonic atomizing nozzle can be used for powder spray in powder metallurgy and coating technology. By atomizing metal powder or ceramic powder into small particles, uniform spraying and coating coverage can be achieved, improving the quality and performance of materials.
4. Environmental and air quality monitoring: The wide nozzle ultrasonic atomizer can be used for sample collection and analysis in environmental and air quality monitoring. By atomizing the adsorbed liquid into small droplets, it is possible to more effectively collect and analyze pollutants and particulate matter in the air, and evaluate environmental quality.
5. Precision coating and electronic manufacturing: The wide nozzle ultrasonic atomizer can be used in the fields of precision coating and electronic manufacturing. It can evenly spray precision parts, electronic components, and semiconductor devices, providing high-quality coatings and protection.
These are just some application examples of wide nozzle ultrasonic atomization nozzles, in fact, they have wide applications in many industrial fields. The specific application depends on the properties of the spraying material, process requirements, and the requirements of the target application field.

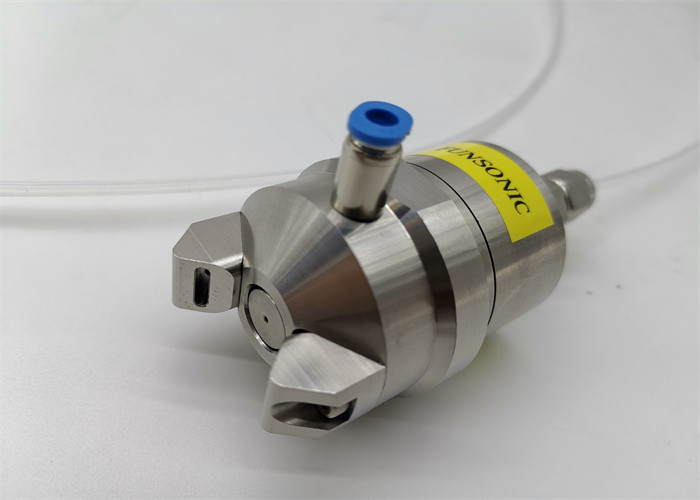

Ultrasonic Application Float Glass Wide Spraying Nozzle 50Khz
