Fine Mist Ultrasonic Atomation Textiles Coating Nozzles Spraying

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by carton
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FSW-5006-L

Production Name:

Ultrasonic Spraying Nozzle

Frequency:

50Khz

Max Power:

Automized Particle Size Range:

15-40μm

Spray Flow:

1-25ml/min

Liquid Viscosity:

<30cps

Particle Size:

Application:

Suitable For Large-area Spraying, Such As Glass Coating, Etc

Highlight:

Spraying Ultrasonic Textiles Coating Nozzles

Fine Mist Ultrasonic Textiles Coating Nozzles

Ultrasonic Atomation Textiles Coating Nozzles

Product Description

Fine Mist Ultrasonic Atomation Textiles Coating Nozzles

Description:

The wide nozzle ultrasonic atomizing nozzle uses low-pressure air/gas to produce a uniform wide spray belt, which can be up to 150mm wide in spray width, and is suitable for sector area spraying.

Structure:

The nozzle body is made of titanium material, which has outstanding acoustic properties, high tensile strength, and excellent corrosion resistance. The protective casing is made of 304 stainless steel (titanium can also be chosen)

Parameters:

Model	FSW-5006-L
Name	50Khz Wide Ultrasonic Nozzle Atomization
Frequency	50Khz
Atomized particle size range(μm)	15-40
Spray width(mm)	50-100
Spray flow(ml/min)	1-25
Spray height(mm)	50-300
Liquid viscosity (cps)	<30
Particle size (μm)	<10
Diversion pressure (Mpa)	<0.1
Application	Suitable for large-area spraying, such as glass coating, etc

Advantages:

1. Uniform coating: Uniformity>95

2. Saving raw materials: The utilization rate of raw materials is over 85%, which is 4 times higher than traditional two fluid spraying

3. High precision in coating thickness control: can prepare coatings ranging from 20nm to tens of micrometers, with precise control of coating thickness

4. The atomized particles are uniform, and the spray flow is extremely low

5. It can be sprayed intermittently or continuously

6. Will not block the nozzle

7. Anti corrosion nozzle

8. High precision and controllable spraying

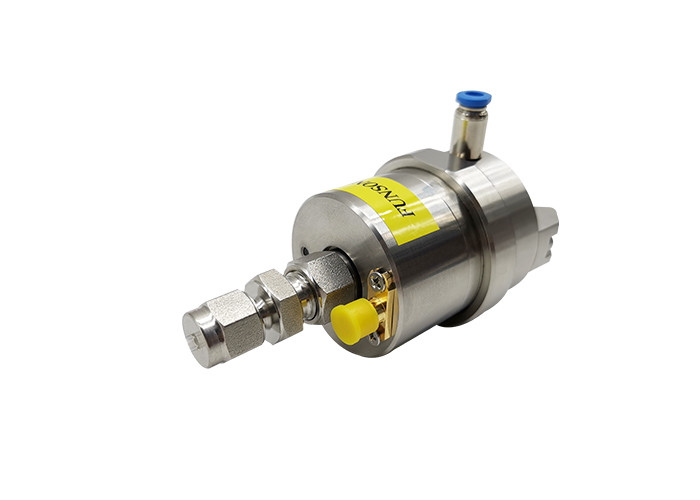

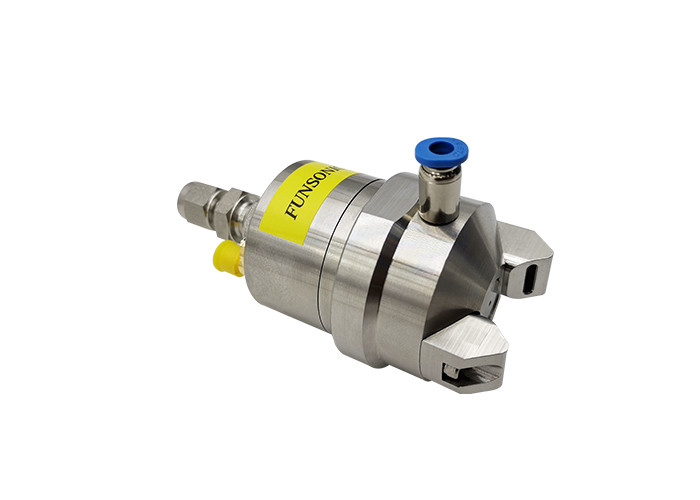

Fine Mist Ultrasonic Atomation Textiles Coating Nozzles Spraying 0

Fine Mist Ultrasonic Atomation Textiles Coating Nozzles

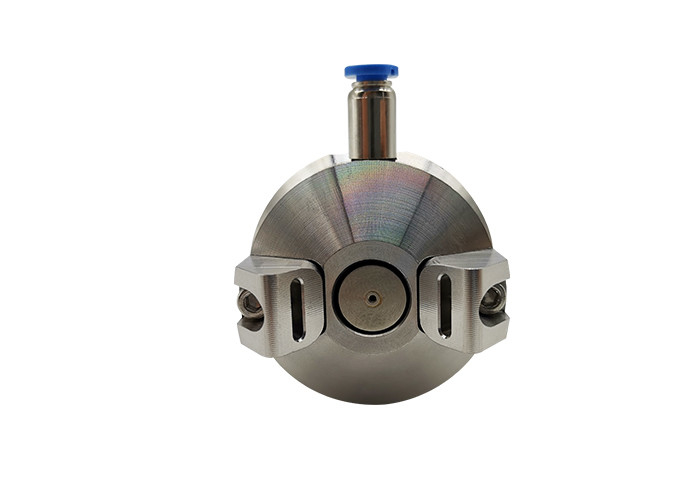

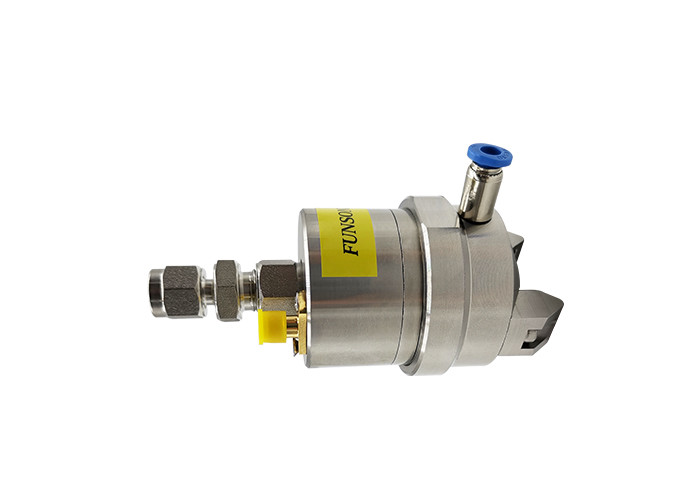

Fine Mist Ultrasonic Atomation Textiles Coating Nozzles Spraying 1
