110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-1108-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
110Khz
Max Power:
15w
Automized Particle Size Range:
15-28μm
Spray Flow:
0.5-12ml/min
Liquid Viscosity:
<20cps
Particle Size:
<5μm
Application:
Suitable For Flat Object Spraying
Highlight:

110Khz Ultrasonic Vortexing Spraying Coating Nozzles

,

Vortexing Spraying Coating Nozzles

Product Description

110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles





Description:



The vortex type ultrasonic nozzle produces a medium width spray pattern, which is wider than the gathering type ultrasonic nozzle, but narrower than the spray pattern of the wide type ultrasonic nozzle. The vortex type ultrasonic nozzle uses low-speed rotating air/gas to produce a wide and stable spray pattern. The vortex type ultrasonic nozzle produces a conical spray pattern with a diameter of 2 – 4 inches (50 – 100 mm), depending on the distance from the substrate. The vortex velocity can vary depending on the application.



Parameters:



Model FSW-1108-L
Name 110Khz Cyclone Cone Ultrasonic Nozzle Atomization
Frequency 110Khz
Atomized particle size range(μm) 15-28
Spray width(mm) 50-100
Spray flow(ml/min) 0.5-12
Spray height(mm) 50-200
Liquid viscosity (cps) <20
Particle size (μm) <5
Diversion pressure (Mpa) <0.15
Application Suitable for flat object spraying





Advantages:



1. Good atomization effect: The vortex type ultrasonic nozzle combines the effects of ultrasound and vortex, which can produce uniform and small liquid droplets, achieving high-quality atomization effect.

2. Wide atomization range: The vortex type ultrasonic nozzle can cover a large spraying range, allowing droplets to be evenly distributed on the target surface.

3. Energy and material savings: Due to the vortex effect, vortex type ultrasonic nozzles can achieve effective atomization at lower pressures, thereby saving energy and materials.

Eddy current ultrasonic nozzles have a wide range of applications in many fields, including spraying coatings, coatings and paints, cooling and humidification, air cleaning and disinfection, medical atomization, etc. They are commonly used in industrial production, medical equipment, laboratory research, and other fields to provide efficient and uniform atomization effects.

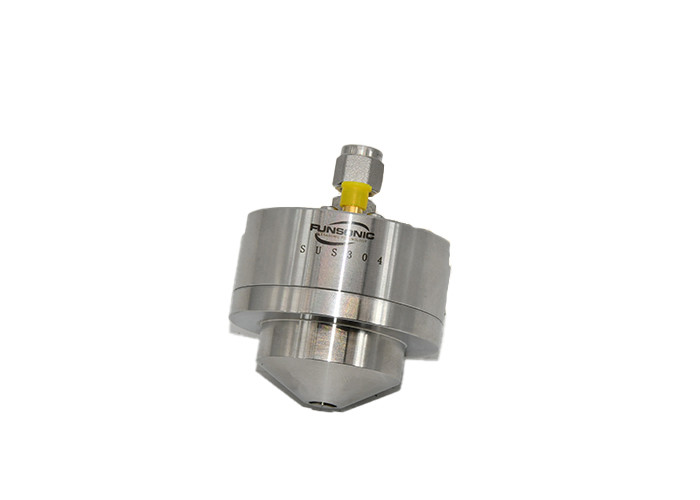

                              110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles 0

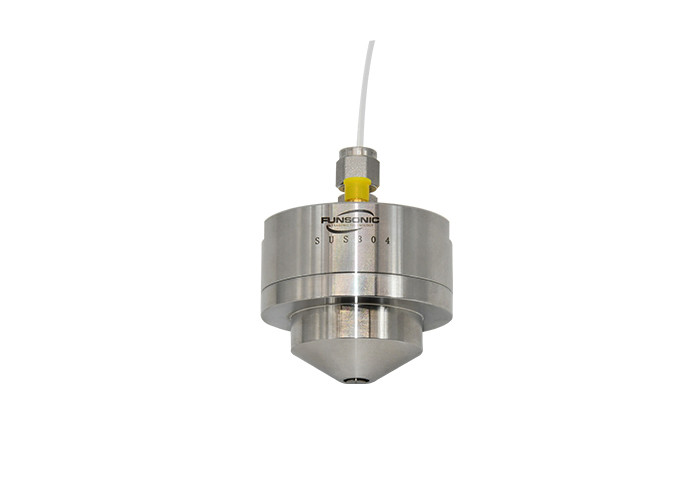

110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles

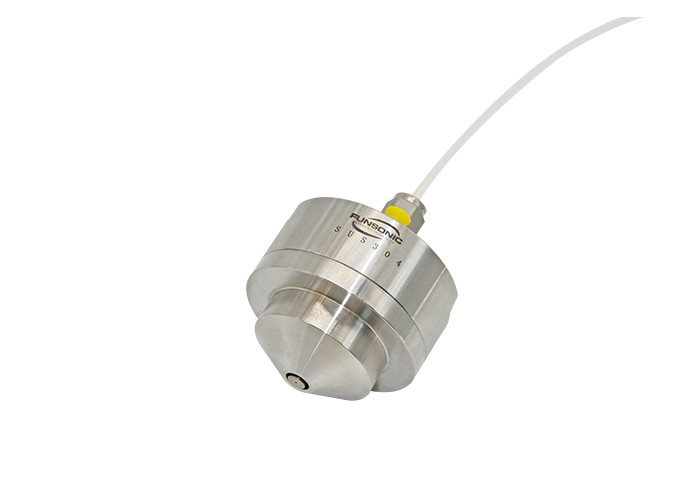

110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles 1

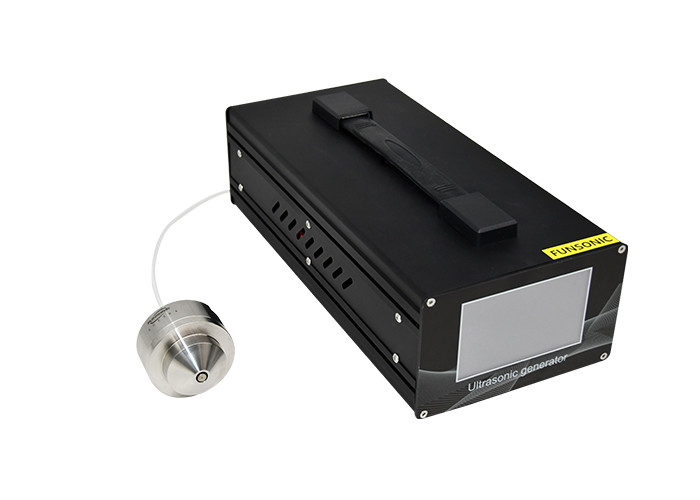

110Khz High Frequency Ultrasonic Vortexing Spraying Coating Nozzles 2
