High Frequency Ultrasonic Precision Spraying Coater With Ultrasound Technology

MOQ:	1 UNIT
Price:	Negotation
Standard Packaging:	Packed by Wooden Case
Payment Method:	T/T, Western Union
Supply Capacity:	1000 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

CHINA

Brand Name

FUNSONIC

Certification

Model Number

FS150

Production Name:

Ultrasonic Precision Spray Coated Machine

Frequency:

20-200Khz For Optional

Power:

1-15w

Automized Particle Size Range:

15-20μm

Spray Flow:

0.01-50ml/min

Liquid Viscosity:

<30cps

Particle Size:

Application:

Suitable For Qualitative Experiments

Highlight:

High Frequency Ultrasonic Spraying Coater

Ultrasonic Precision Spraying Coater

Ultrasound Technology Spraying Coater

Product Description

High Frequency Ultrasonic Precision Spraying Coat with Ultrasound Technology

Description:

High Frequency Ultrasonic Precision Spraying Coat with Ultrasound Technology is a device that uses ultrasonic technology to achieve micrometer level coating thickness. During the spraying process, the droplet size and distribution are precisely controlled by the ultrasonic nozzle, allowing very small droplets and particles to evaporate quickly, resulting in particles with high specific surface area and forming a uniformly distributed thin film coating.
High Frequency Ultrasonic Precision Spraying Coat with Ultrasound Technology is widely used for precise coating of materials such as coatings, inks, adhesives, etc. Its high efficiency, environmental protection, and high precision make it an indispensable spraying solution in modern manufacturing industry.

Parameters:

Product Type	Ultrasonic Precision Spraying Coated Machine Laboratory desktop Type FS150
Spray Nozzle Operating Frequency	20-200KHz
Nozzle Power	1-15W
Continuous Spraying Volume Max	0.01-50ml/min
Effective Spraying Width	2-100mm
Spray Uniformity	≥95%
Solution Conversion Rate	≥95%
Dry Film Thickness	20nm-100μm
Solution Viscosity	≤30cps
Temperature Range	1-60℃
Atomized Particles (Median Value)	10-45μm (distilled water), determined by the frequency of the nozzle
Diversion Pressure Max	≤0.10MPA
Input Voltage	220V±10%/50-60Hz
Exercise Mode	X. Y-axis and Z-axis linear track motion module, performing up and down/front and back/left and right movements
Motion controller	Operating software system, parameter settings
Control Content	Ultrasonic spraying, liquid supply, heating, ultrasonic dispersion and other systems
Liquid Supply Method	Precision injection pump
Ultrasonic Dispersion System (Optional)	50ml, 40K, biological grade sampler
Rated Power of Ultrasonic Dispersion System	200W,10A

Application :

1. Automotive industry: used for body coating and interior painting.
2. Electronics industry: Coating protection on circuit boards and components.
3. Medical equipment: Coating medical devices to ensure hygiene and durability.
4. Home appliances: Applied to the spraying of home appliance shells to improve aesthetics and durability.

High Frequency Ultrasonic Precision Spraying Coat with Ultrasound Technology

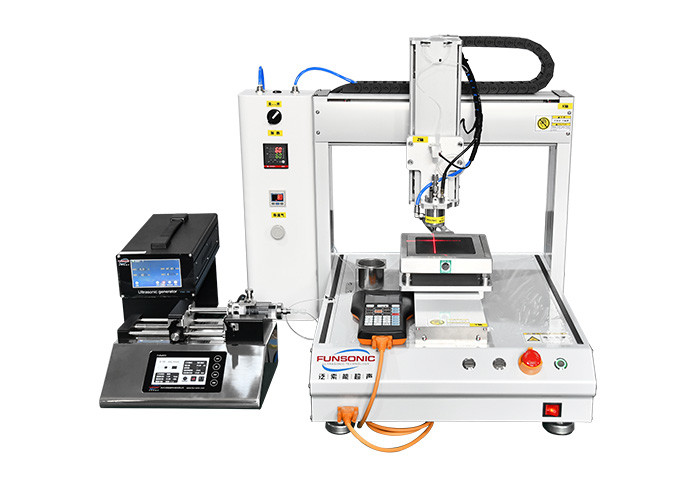

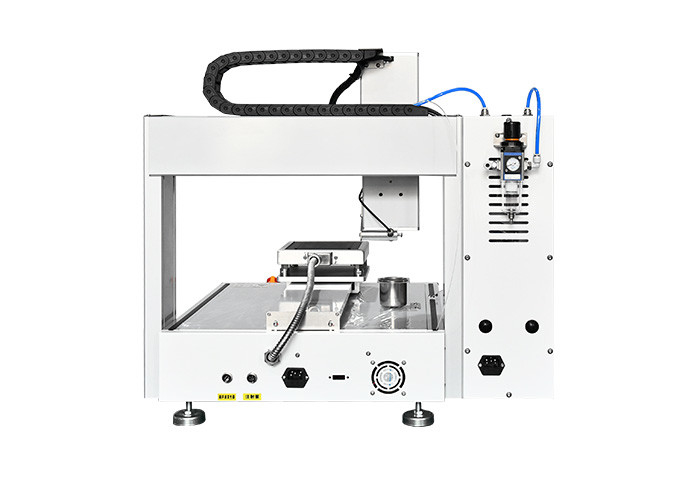

High Frequency Ultrasonic Precision Spraying Coater With Ultrasound Technology 0

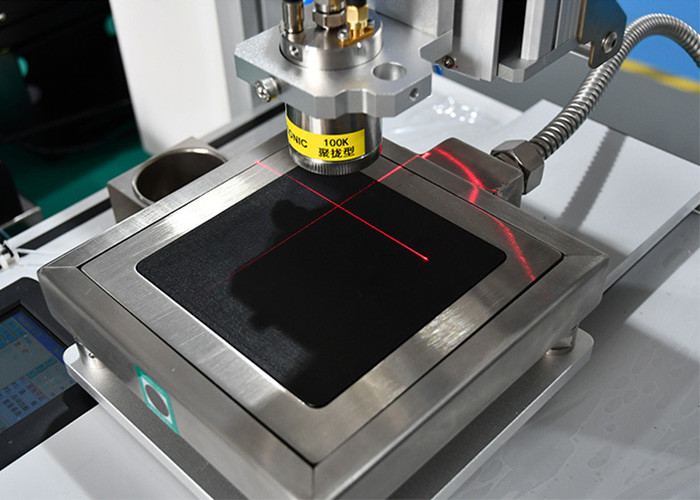

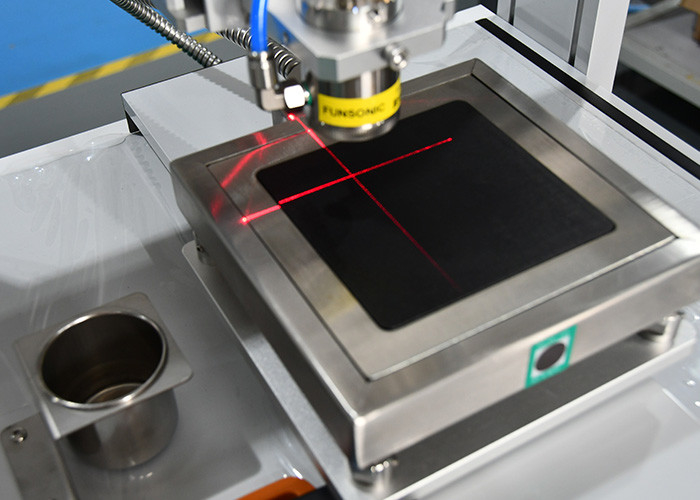

High Frequency Ultrasonic Precision Spraying Coater With Ultrasound Technology 1
