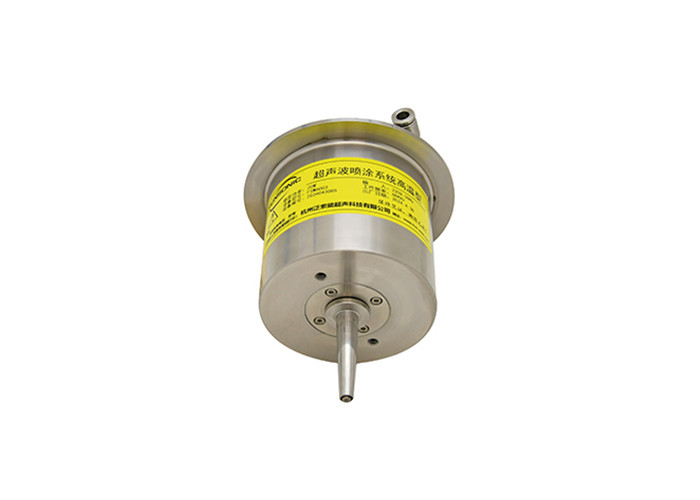

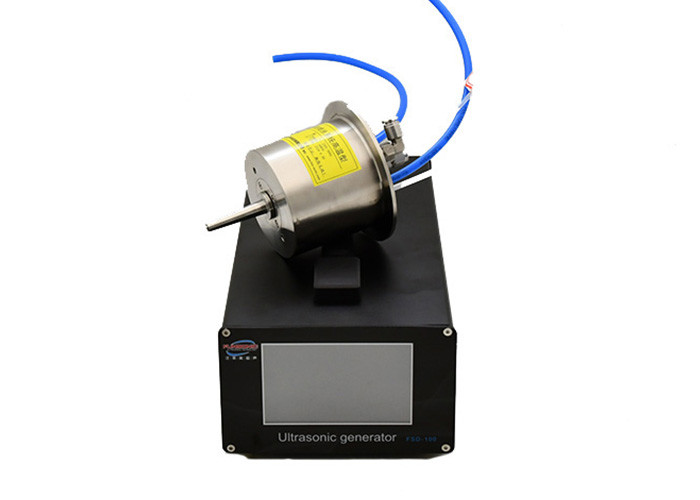

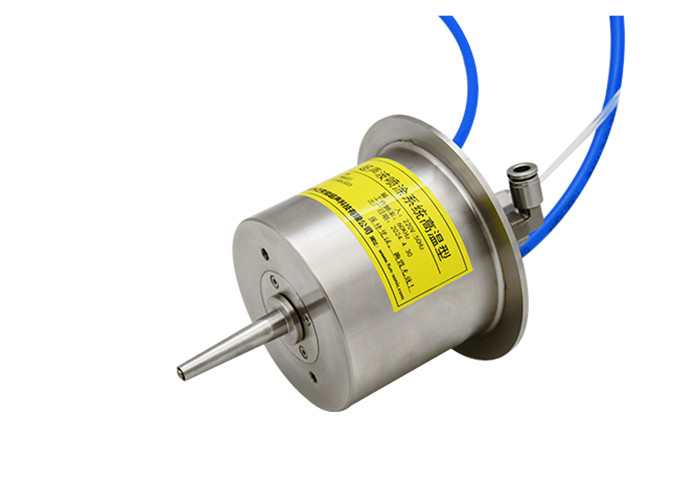

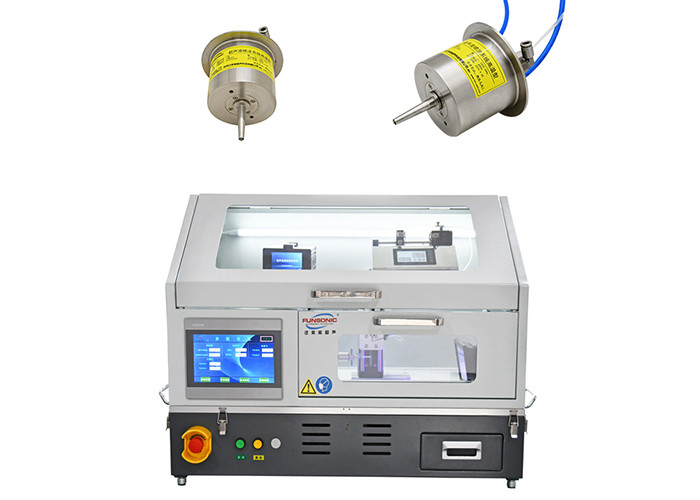

High Frequency 60Khz Ultrasonic Customized High Temperature Atomizing Nozzle
  • name
  • name
  • name
  • name

High Frequency 60Khz Ultrasonic Customized High Temperature Atomizing Nozzle

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-6007-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
60Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.5-10ml/min
Liquid Viscosity:
<15cps
Particle Size:
<8μm
Application:
Suitable For Brackets, Balloon Conduits, Wires, Flux For Selective Welding Applications, Etc
Highlight:

High Temperature Ultrasonic Atomizing Nozzle

,

High Frequency Ultrasonic Atomizing Nozzle

,

Customized Ultrasonic Atomizing Nozzle

Product Description

High Frequency 60Khz Ultrasonic Customized High-temperature Atomizing Nozzle





Description:



The high-frequency 60Khz ultrasonic customized high-temperature atomizing nozzle uses a piezoelectric transducer to convert high-frequency sound waves into mechanical energy for longitudinal high-frequency vibration. This longitudinal upward and downward motion generates standing waves in the liquid film at the top of the ultrasonic nozzle, and the amplitude of these waves can be controlled by the ultrasonic generator. The liquid waves extend upwards from the tip of the ultrasonic nozzle until they are separated into uniformly sized droplets with almost no kinetic energy. The secondary molding gas or surrounding air can easily wrap the droplets into the desired shape and speed, achieving various spraying.





Parameters:



Model FSW-6007-L
Name 60Khz Ultrasonic Nozzle Atomization
Frequency 60Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 1-3
Spray flow(ml/min) 0.5-10
Spray height(mm) 2-10
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.01
Application Suitable for Brackets, balloon conduits, wires, flux for selective welding applications, etc





Advantages:



1. High efficiency: compared with traditional spray, ultrasonic atomization can distribute liquid more evenly.
2. Energy saving: generally lower energy consumption than other spray equipment.
3. Low noise: Ultrasonic equipment has low noise during operation and is suitable for use in situations that require a quiet environment.





High Frequency 60Khz Ultrasonic Customized High-temperature Atomizing Nozzle



High Frequency 60Khz Ultrasonic Customized High Temperature Atomizing Nozzle 0High Frequency 60Khz Ultrasonic Customized High Temperature Atomizing Nozzle 1
