Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System
  • name
  • name
  • name
  • name

Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System

MOQ: 1 UNIT
Price: Negotation
Standard Packaging: Packed by carton
Payment Method: T/T, Western Union
Supply Capacity: 1000 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
FUNSONIC
Certification
CE
Model Number
FSW-6007-L
Production Name:
Ultrasonic Spraying Nozzle
Frequency:
60Khz
Max Power:
15w
Automized Particle Size Range:
15-40μm
Spray Flow:
0.5-10ml/min
Liquid Viscosity:
<15cps
Particle Size:
<8μm
Application:
Suitable For Brackets, Balloon Conduits, Wires, Flux For Selective Welding Applications, Etc
Highlight:

Ultrasonic Titanium Alloy Atomization Nozzle

,

Ultrasonic Atomization Nozzle

,

Precision Dispersion System Atomization Nozzle

Product Description

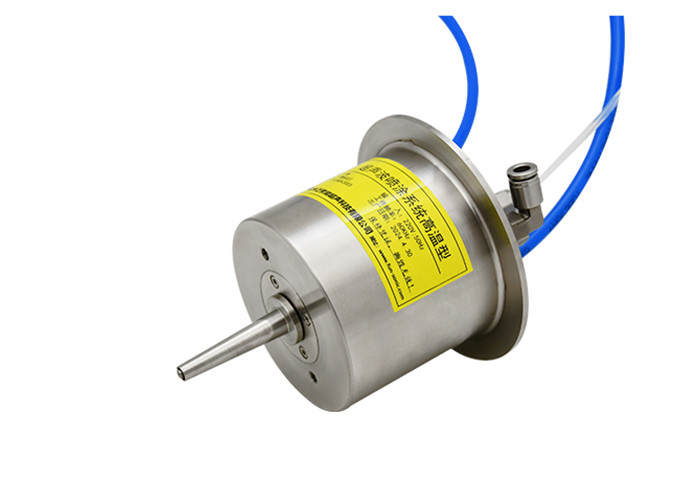

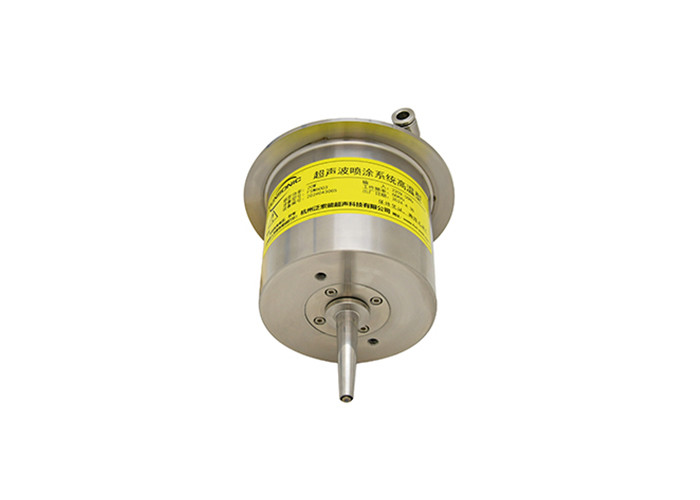

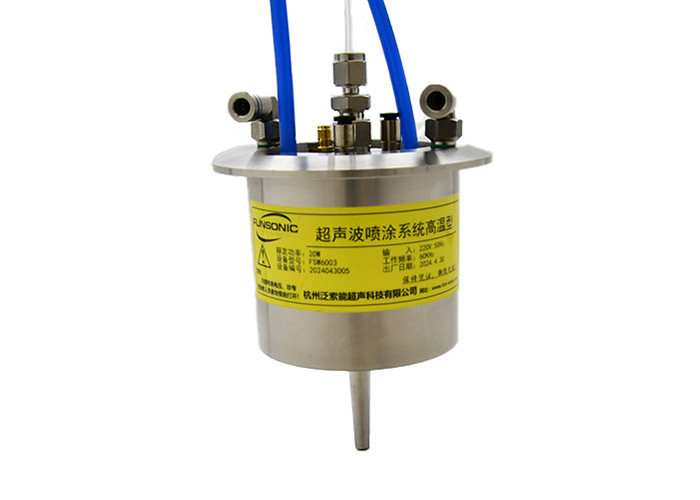

Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System





Description:

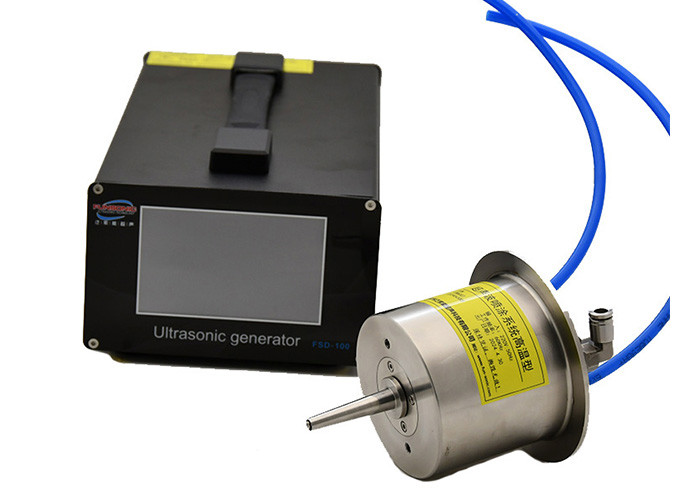

The precision dispersion system of ultrasonic titanium alloy atomizing nozzle consists of ultrasonic vibration plate, oscillator, nozzle, etc. When the ultrasonic transducer vibrates, it generates high-frequency mechanical waves that disperse the liquid into tiny particles. These particles pass through the converging nozzle to form a relatively dense spray. The nozzle can adjust the spray particle size and spray amount by controlling the frequency and amplitude of ultrasonic oscillation.





Parameters:



Model FSW-6007-L
Name 60Khz Ultrasonic Nozzle Atomization
Frequency 60Khz
Atomized particle size range(μm) 15-40
Spray width(mm) 1-3
Spray flow(ml/min) 0.5-10
Spray height(mm) 2-10
Liquid viscosity (cps) <15
Particle size (μm) <8
Diversion pressure (Mpa) <0.01
Application Suitable for Brackets, balloon conduits, wires, flux for selective welding applications, etc





Advantages:



1. Spray patterns are easy to form and suitable for precise coating applications
2. It can spray any shape of object with a uniform micrometer thick coating
3. Ultrasonic atomization spraying can reduce downtime in critical production processes
4. Ultrasonic atomization spraying with ultra-low flow rate, capable of intermittent or continuous operation
5. Highly controllable spray volume, more reliable spray quality
6. Low energy consumption, high atomization efficiency, and relatively small restrictions on atomized liquids
7. It can reduce waste and air pollution caused by backflow, saving costs
8. No pressure, no noise, no wear of moving parts, no blockage
9. The atomizing nozzle is made of titanium alloy material, which has strong height and corrosion resistance





Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System



Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System 0Ultrasonic Titanium Alloy Atomization Nozzle Precision Dispersion System 1
