| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-1003-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 100Khz |
|---|---|---|---|
| Max Power: | 15w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.5-10ml/min | Liquid Viscosity: | <30cps |
| Particle Size: | <10μm | Application: | Suitable For Brackets, Balloon Conduits, Wires, Flux For Selective Welding Applications, Etc. |
| Highlight: | High Focused Atomizing Coated Nozzle,Round Up Atomizing Coated Nozzle,Ultrasound Round Up Atomizing Coated Nozzle |
||

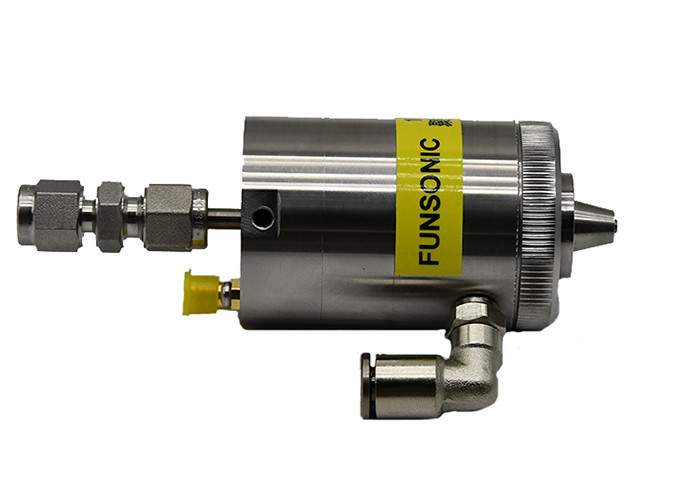

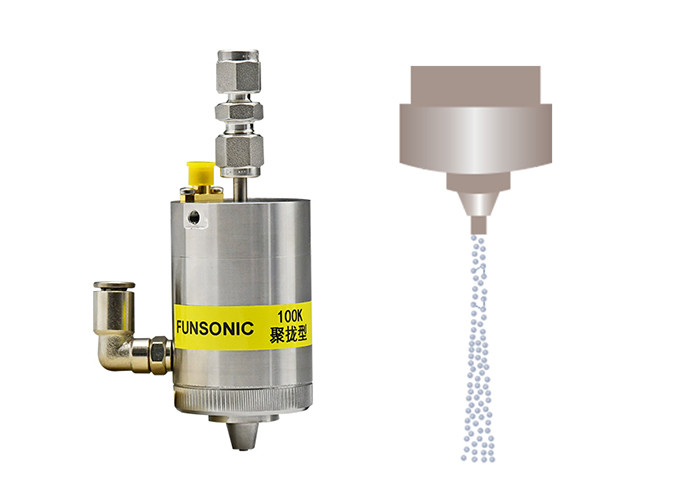

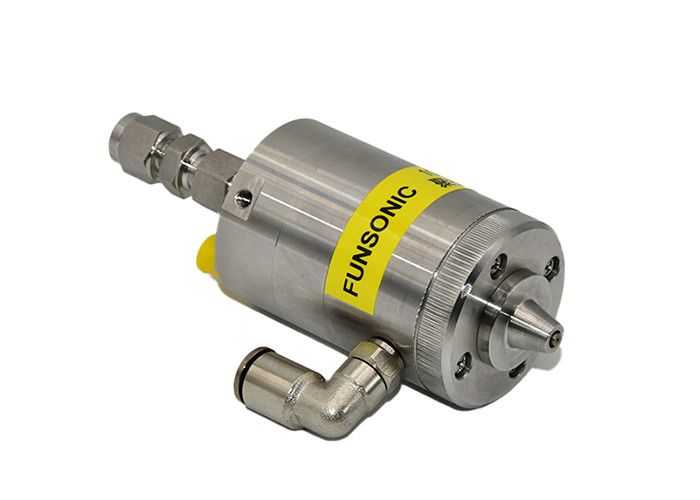

High Focused Spray Ultrasound Round Up Atomizing Coated Nozzle
Description:
High Focused Spray Ultrasound Round Up Atomizing Coated Nozzle is a type of atomizing nozzle that generates high-frequency vibrations from a piezoelectric transducer at the tip of the nozzle, resulting in capillary waves in the liquid film.
High Focused Spray Ultrasound Round Up Atomizing Coated Nozzle is made of highly durable materials such as titanium, making it very suitable for various challenging environments and chemicals. The electroactive element is contained within a sealed casing, which can protect the nozzle assembly from external contamination. The liquid feed pipe runs through the entire length of the nozzle. The design of the nozzle ensures that the liquid only comes into contact with the titanium inside the nozzle.
Each ultrasonic nozzle operates at a specific resonance frequency, which determines the median size of the droplets. The frequency is usually in the range of 20-180 kHz, with the highest frequency producing the smallest droplet size.
Parameters:
| Model | FSW-1003-L |
| Name | 100Khz Gathering Ultrasonic Nozzle Atomization |
| Frequency | 100Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 2-20 |
| Spray flow(ml/min) | 0.5-10 |
| Spray height(mm) | 10-30 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <10 |
| Diversion pressure (Mpa) | <0.05 |
| Application | Suitable for Brackets, balloon conduits, wires, flux for selective welding applications, etc. |
Maintenance Methods To Prevent Blockage Of UItrasonic Gathering Nozzles :
1. Regular cleaning:
According to usage, the nozzle can be cleaned at regular intervals (such as weekly or monthly).
Sediments and impurities inside the nozzle can be removed using solvents or ultrasonic cleaning methods.
2. Choose the appropriate liquid:
Try to use liquids with lower viscosity and no particle impurities, which is beneficial for keeping the nozzle unobstructed.
For liquids containing suspended solids, it may be considered to add a filtering device in front of the nozzle.
3. Control working parameters:
Reasonably adjust the liquid flow rate and ultrasonic frequency to avoid nozzle blockage caused by excessive flow rate or oscillation.
Optimize the working parameters of the nozzle based on the properties of different liquids.
4. Use anti-corrosion materials:
Choose appropriate nozzle materials, such as stainless steel, ceramics, etc., to reduce the damage of corrosion to the nozzle.
5. Add anti settling agent:
In some liquids that are prone to precipitation, dispersants or anti precipitation agents can be added to reduce the formation of sediment.
6. Regular maintenance and inspection:
Establish a habit of regular maintenance and timely detection and removal of sediment inside the nozzle.
Regularly check the condition of the nozzle holes and replace them if necessary.
