| Place of Origin: | CHINA |
|---|---|
| Brand Name: | FUNSONIC |
| Certification: | CE |
| Model Number: | FSW-4004-L |
| Minimum Order Quantity: | 1 UNIT |
| Price: | Negotation |
| Packaging Details: | Packed by carton |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 1000 unit per month |
| Production Name: | Ultrasonic Spraying Nozzle | Frequency: | 40Khz |
|---|---|---|---|
| Max Power: | 50w | Automized Particle Size Range: | 15-40μm |
| Spray Flow: | 0.3-5ml | Liquid Viscosity: | <30cps |
| Particle Size: | <5μm | Application: | In Test Tube Spray Injector Silicone Oil Spray |
| Highlight: | PDMS Ultrasonic Syringe Internal Coating Nozzle,40Khz Ultrasonic Syringe Internal Coating Nozzle,40Khz Ultrasonic Spray Coating Machine |
||

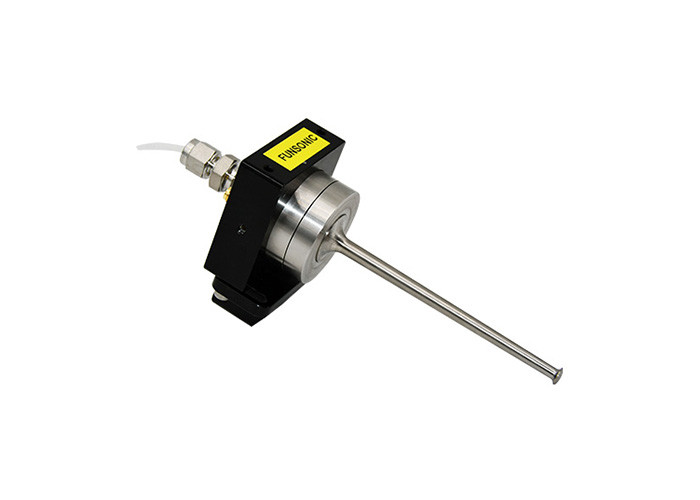

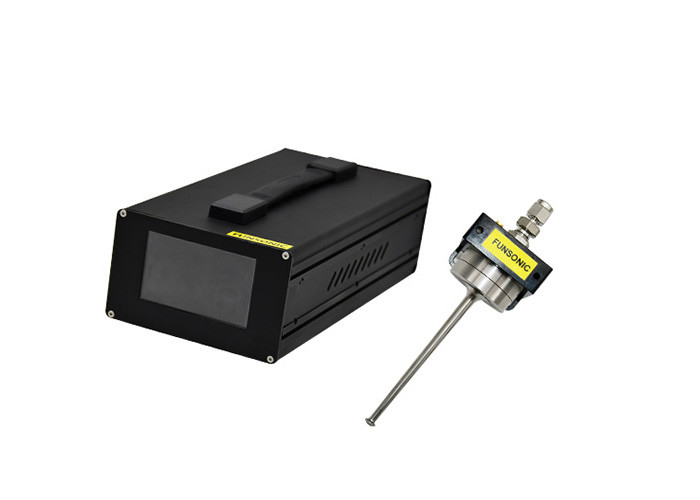

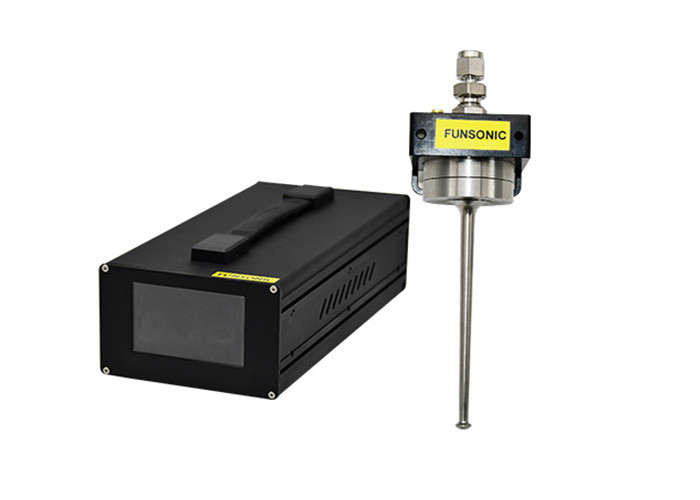

40Khz Ultrasonic Syringe Internal Coating Nozzle PDMS Spraying Solutions
Description:
40Khz Ultrasonic Syringe Internal Coating Nozzle PDMS Spraying Solutions is designed to produce liquid particles with a diameter of about 28 microns and a spraying width of 1-m through a frequency of 40K and an airflow channel. It can meet various spraying requirements such as area, thickness, and smoothness. FUNSONIC can design unique exterior structures according to different application environments of customers.

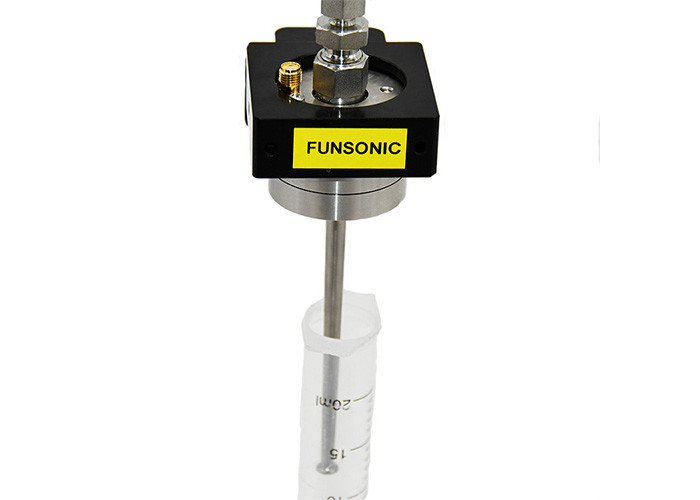

Depending on the diameter and length of the test tube, FUNSONIC has multiple nozzle and length configurations. The common application is to spray the silica coating to accelerate coagulation. The silica slurry decomposes any silica aggregates through the vibration of the long nozzle nozzle, and sprays the atomized spray onto the wall of the coating area at the bottom of the BCT or syringe cylinder instead of coating the entire tube, so that the coating position can be more accurately controlled.
Parameters:
| Model | FSW-4004-L |
| Name | Ultrasonic Probe Type Nozzle 40Khz |
| Frequency | 40Khz |
| Atomized particle size range(μm) | 15-40 |
| Spray width(mm) | 3-15 |
| Spray flow(ml/min) | 0.3-5 |
| Spray height(mm) | 1-100 |
| Liquid viscosity (cps) | <30 |
| Particle size (μm) | <15 |
| Diversion pressure (Mpa) | N |
| Application | In Test Tube Spray Injector Silicone Oil Spray |
Application :
40Khz Ultrasonic Syringe Internal Coating Nozzle PDMS Spraying Solutions has potential in the preparation of drug delivery systems. It can be used for spraying nano particle carriers, microspheres, or films to achieve controlled release, targeted delivery, and enhanced biocompatibility of drugs. Ultrasonic spraying technology can maintain the activity of drugs and improve their stability and delivery efficiency by forming a uniform coating.
Please note that different ultrasonic spraying machines may have different parameters and adjustment ranges. When selecting parameters and process conditions, it is recommended to refer to the equipment's operating manual and manufacturer's guidance for testing and optimization to achieve the best spraying effect and process stability.
